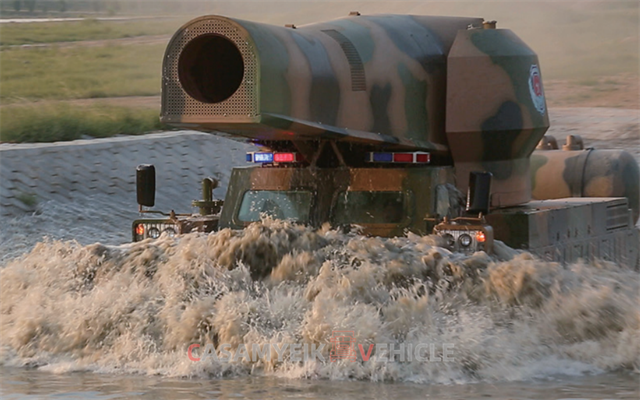

Crawler Turbojet Fire Fighting Special Vehicle

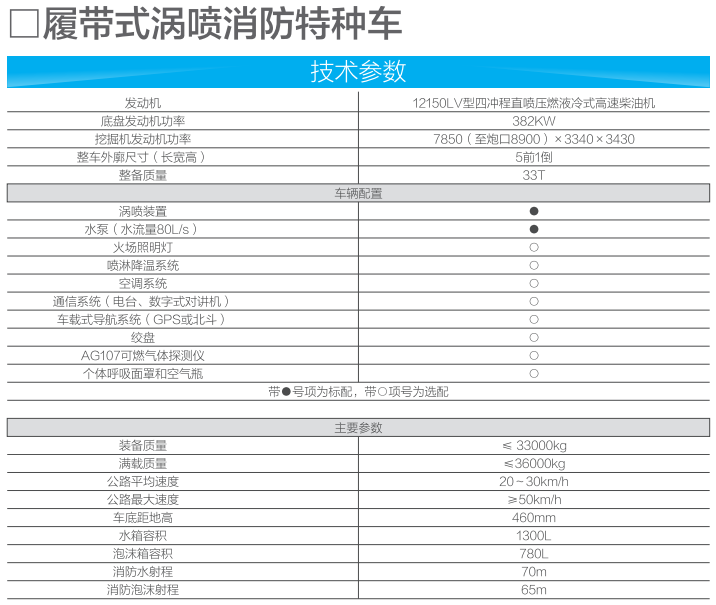

Technical parameters

Engine:12150lv four stroke direct injection compression ignition liquid cooled high speed diesel engine

Engine power:382KW

Overall dimension :7850 (to muzzle 8900) × 3340 × 3430mm

Curb weight:33T

Vehicle configuration:

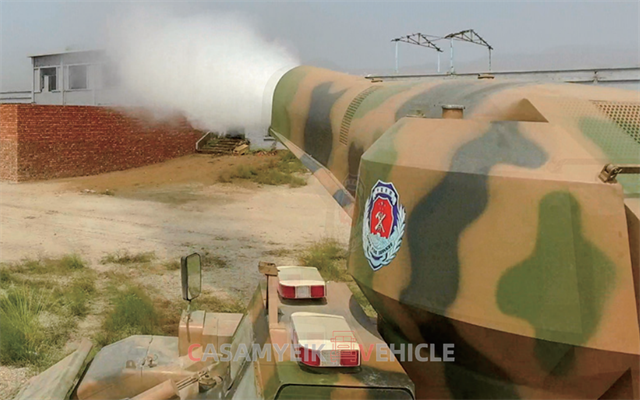

Turbojet device●

Water (water flow 80ls)●

Fire lighting

Spray cooling system

Air conditioning system

Communication system (radio, digital interphone)

Vehicle mounted navigation system (GPS or Beidou)

Dish

Ag107 combustible gas detection

Individual breathing mask and air bottle

 ● means standard configuration, others are optioanl.

Main parameters

Equipment weight：≤33000kg

Full load mass：≤36000kg

Average speed：20-30km/h

Maximum speed≥50km/h

Height between vehicle and ground:460mm

Water tank capacity:1300L

Bubble box capacity:780L

Fire water range:70m

Fire foam range:65m
