4X4 Explosion Proof Fire Detection Vehicle

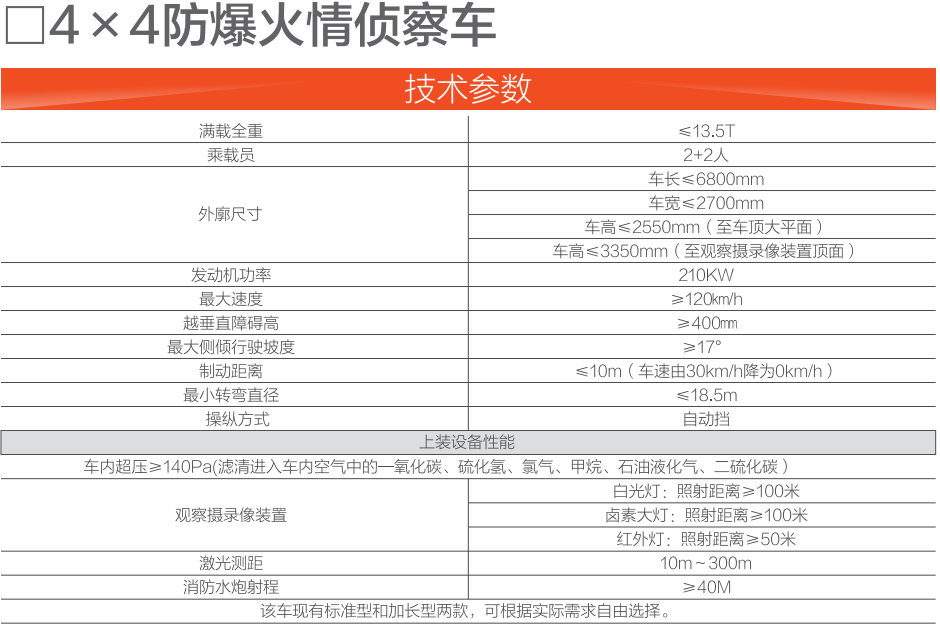

Technical parameters

Full load:≤13.5T

Passenger:2 + 2 persons

Overall dimension：

Vehicle length ≤ 6800mm  Vehicle width ≤ 2700mm

Vehicle height ≤ 2550mm (to the large plane of the roof)

Vehicle height ≤ 3350mm (to the top surface of observation camera)

Engine power:210KW

Maximum speed:≥120kmh

Over vertical obstacle height:≥400mm

Maximum roll gradient:≥17

Braking distance:≤ 10m (vehicle speed reduced from 30kmh to 0kmh)

Minimum turning diameter:≤18.5m

Operation mode:Automatic

Performance of loading equipment：

Overpressure in the vehicle ≥ 140pa (remove carbon monoxide, hydrogen sulfide, methane, methane, liquefied petroleum gas and carbon disulfide from the air in the vehicle)

Observation camera：

White light: irradiation distance ≥ 100m

Plain headlamp: irradiation distance ≥ 100m

Infrared lamp: irradiation distance ≥ 50m

Laser ranging：10m-300m

Fire water monitor range：≥40M

The car has two models：standard and extended models, which can be freely selected according to actual needs.
