4x4 High Mobility Remote Fire Extinguisher

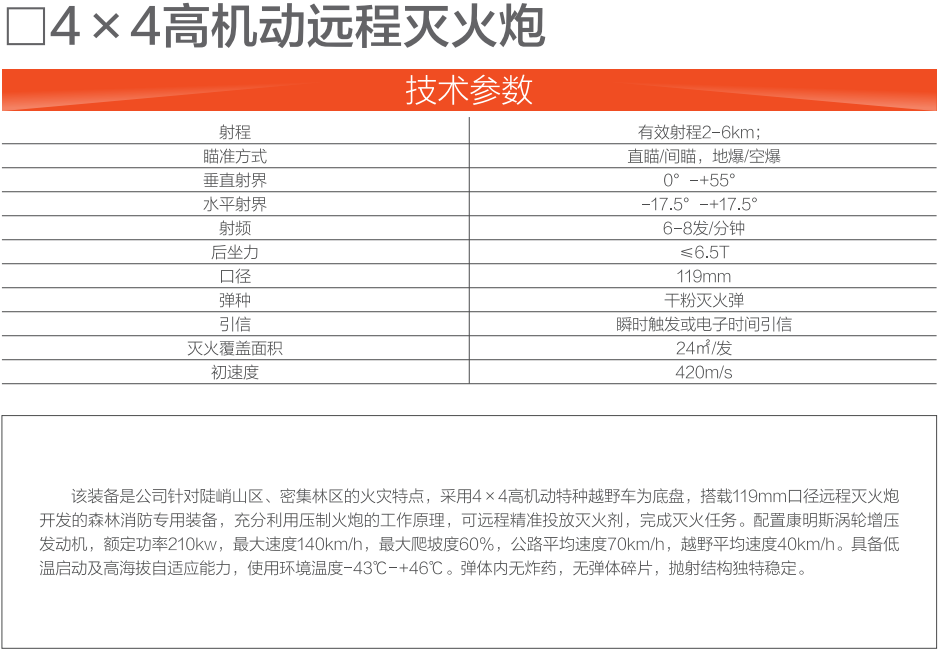

Technical parameters

Effective range：2-6km;

Quasi mode：Direct / indirect, ground explosion and air explosion

Vertical range：0°-+55°

Horizontal range：17.5-+17.5

RF：6-8 minutes

Recoil：≤6.5T

Path：119mm

Bullet type：Dry powder fire extinguisher

Fuze：Instantaneous trigger or electronic time fuse

Fire fighting coverage：24 square meters / time

Initial velocity：420m/s

This equipment is designed for the fire characteristics of mountainous areas and dense forest areas, and adopts 4 × 4 high mobility special off-road vehicle is the chassis, equipped with special forest fire fighting equipment developed by 119mm caliber long-range fire-fighting gun. It makes full use of the working principle of the suppression gun, and can accurately release fire extinguishing agent remotely to complete the fire-fighting task. Cummins turbocharged engine is equipped with rated power of 210Kw, maximum speed of 140km / h, maximum climbing gradient of 60%, average road speed of 70km / h and average off-road speed of 40kmh. It has the ability of low temperature startup and high altitude self response, and the operating environment temperature is - 43 ℃ - + 46 ℃. There are no explosives and fragments in the projectile, and the projectile structure is unique and stable.
