This equipment is produced in CHINA Main battle tank 99/85(MBT) factory.

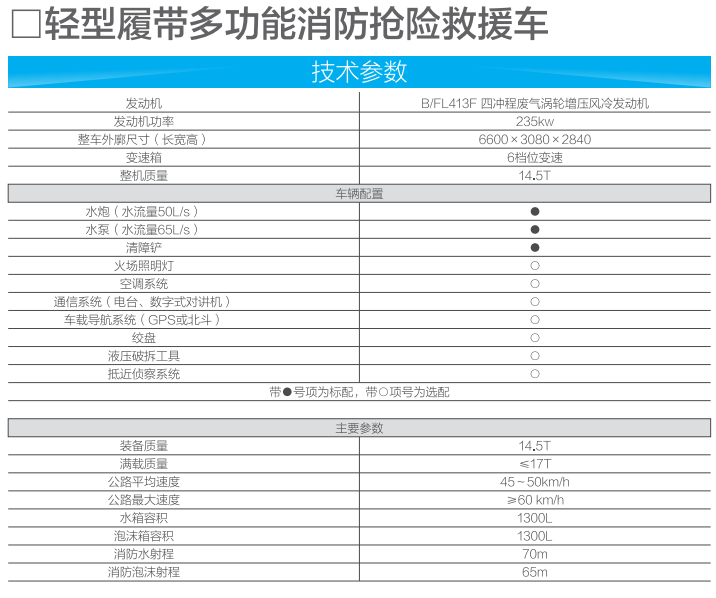

Technical parameters
Engine:B / FL413F four stroke exhaust gas turbocharged air cooled engine
Engine power:235kw
Overall dimension of the whole vehicle (length, width and height):6600*3080*2840MM
Transmission:6 gear shift
Overall weight:14.5T
Vehicle configuration:
Water monitor (water flow 50ls) ●
Water (water flow 65LS) ●
Clear away obstacles●
Fire lighting
Air conditioning system
Communication system (radio, digital interphone)
Vehicle navigation system (GPS or Beidou)
Disc
Hydraulic breaking tool
Proximity system
● means standard configuration, others are optional
Main parameters
Equipment weight:14.5T
Full load mass:≤17T
Average speed:45-50km/h
Maximum speed60km/h
Water tank capacity:1300L
Foam tank capacity:1300L
Fire water range:70m
Fire foam range:65m
Technical parameters
engine
B / FL413F four stroke exhaust gas turbocharged air cooled engine
Engine power
235kw
Overall dimension of the whole vehicle (length, width and height)
six thousand and six hundred × three thousand and eighty × two thousand eight hundred and forty
transmission case
6 gear shift
Overall quality
14.5T
Vehicle configuration
Water monitor (water flow 50ls)
Water (water flow 65LS)
Clear away obstacles
Fire lighting
Air conditioning system
Communication system (radio, digital interphone)
Vehicle navigation system (GPS or Beidou)
Disc
Hydraulic breaking tool
Proximity system
● item No. is standard, and item No. is optional
Main parameters
Equipment quality
14.5T
Full load mass
≤17T
Average highway speed
4550kmh
Maximum highway speed
60kmh
Water tank capacity
1300L
Foam tank capacity
1300L
Fire water range
70m
Fire foam range
65m
