1,FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis matchable
Key words:firefighter/engine/fire department/rescue vehicle/forest fire/fire station/fire engines/fire apparatus/brush truck
SPECIFICATION |
|||||||
Dimension |
8347*2500*3417mm |
||||||
Approaching angle/Departure angle |
26/30° |
||||||
Overhang(front/rear) |
1410/1870mm |
||||||
Wheel base |
3800+1450mm |
||||||
Max speed |
85km/h |
||||||
Curb weight |
12200kg |
||||||
Loading capacity |
13800kg |
||||||
Slope climbing capability |
Max.30% |
||||||
Engine |
Model |
WD615.34,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
|||||
Displacement |
9.726L/Diesel |
||||||
Stroke |
126/130mm |
||||||
Max. power |
250/2200 (kw/rpm) |
||||||
Max.torque |
1350/1200-1600(Nm/rpm) |
||||||
Emission stantard |
EuroII |
||||||
Fuel tanker capacity |
400L Steel |
||||||
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
||||||
Gearbox |
9JS150A, mechanism,9 forward gears,1 reverse gear, with overspeed gear, manual operated, |
||||||
Gear ratio of gear box |
12.11/8.048/5.96/4.42/3.36/2.41/1.77/1.32/1.00 R: 12.66 |
||||||
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs |
|||||
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
||||||
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|||||
Assistant brake |
Engine exhaust brake |
||||||
Park brake |
Potential springs pressing on middle and rear wheels |
||||||
Steering system |
ZF8098,whole circulation in ball, hydraulic booster |
||||||
Frame |
straight beam width |
||||||
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
||||||
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
||||||
Tyre |
12.00R20 Radial |
||||||
Electrical system |
Battery |
2X12V/180Ah |
|||||
Generator |
28V-35A |
||||||
Starter |
5.4Kw/24V |
||||||
Cabin |
Long cabin with single bed ; |
||||||
Function instruction |
|||||||

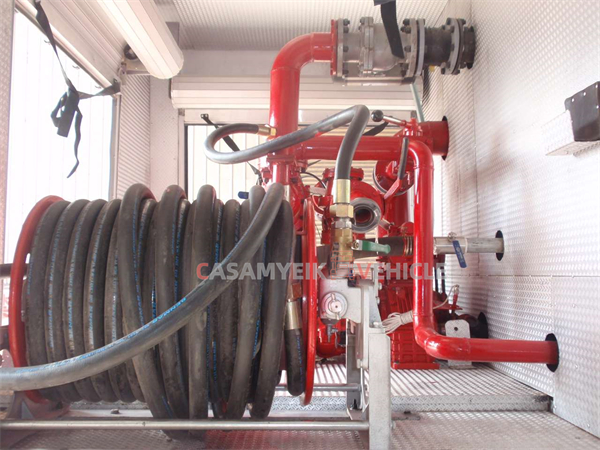

1.Special part of the liquid tank, pump room, power output and transmission system, piping systems, electrical systems and other components |
|||||||

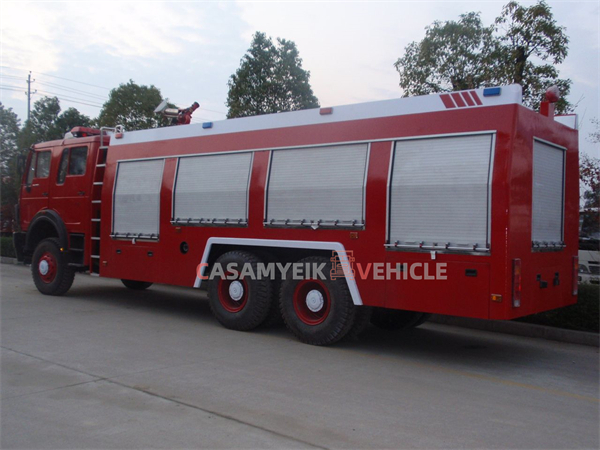

2.Fire truck is desgined 2 row in cab ,could take 4-6 fire man; |
|||||||

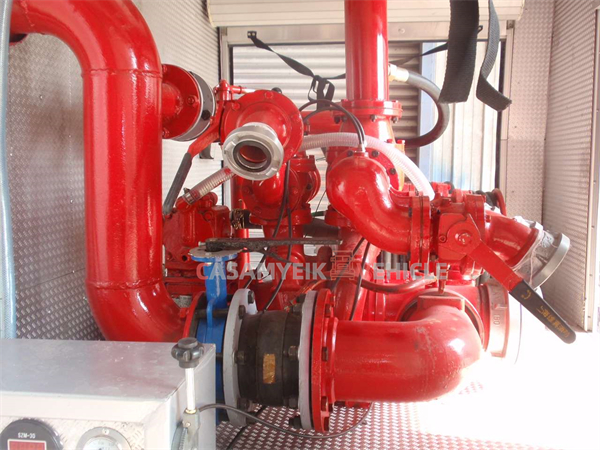

3.Fire pump:CB10/20,flow :20L/S ,presseure:1.00Mpa .Fire minitor :SP20 ,range of fire >40m |
|||||||
4.The cargo is made of high quality steel, high strength Aluminum Alloy material, and adopts the design of multi-channel dashboard overall manufacturing corrugated aluminum tank |
|||||||
5.Equipment box rolling door using high-quality aluminum alloy design, opening and closing flexible, low noise, good sealing, beautiful appearance |
|||||||

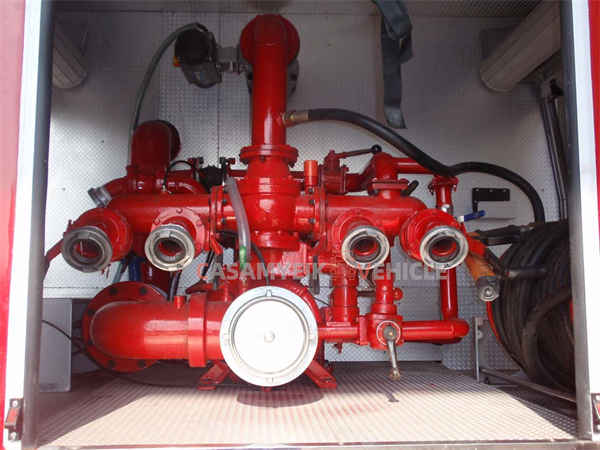

6.Set the pump water pump system, various kinds of instrument, indicator, gauge, pressure gauge, vacuum gauge device etc. |
|||||||
Flow Rate |
1440 LPM |
1920 LPM |
2880 LPM |
3840 LPM |
4800 LPM |
||
Working Pressure |
8 Bar |
8 Bar |
8 Bar |
10 Bar |
10 Bar |
||
Water Max. Reach @ 8 bar |
45 meters |
55 meters |
60 meters |
65 meters |
80 meters |
||
Foam Max. Reach @ 8 bar |
40 meters |
50 meters |
55 meters |
60 meters |
75 meters |
||
Max Range Of Monitor |
-80° to +90° Vertically, 360° Rotation,other degree available |
||||||
Turing Speed |
24°/Second rotation,10°/Second vertical |
||||||
Power Supply |
DC 24V is standard |
||||||
Power Consumption |
24V @ 7.5A |
||||||
Waterway Size |
2.5" (65mm) |
2.5" (65mm) |
3" (80mm) |
3" (80mm) |
3" (80mm) |
||
Monitor Outlet |
2.5" (65mm) NH |
||||||
Monitor Inlet |
Flange 4" ANSI 150# is standard,other size and standard available |
||||||
Material |
Monitor - SS304 Stainless Steel |
||||||
