1,FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis matchable
Key words:firefighter/engine/fire department/rescue vehicle/forest fire/fire station/fire engines/fire apparatus/brush truck
Vehicle model |
AUMARK-T33 |
|
Cabin |
Double Row |
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
5875×1915×2230 |
Wheel base(mm) |
3360 |
|
Weight data |
Curb weight(kg) |
2100 |
Gross vehicle weight(kg) |
4485 |
|
Persons in cab |
3 |
|
Whole vehicle main performance |
Max. speed(km/h) |
95 |
ENGINE |
Model |
BJ493ZLQV1 |
Emissions standards |
EuroⅢ |
|
Displacement(L) |
2.771 |
|
Rated Power(kw/rpm) |
80 |
|
Max torque (N.m/rpm) |
280 |
|
Gearbox |
Model |
JC5-28 |
Front axle |
Type/Mainreducetion ratio |
2.2T |
Rear axle |
Type/Mainreducetion ratio |
5.0T/6.142 |
Suspension |
Front suspension/Leaf spring number |
3+1 |
Rear suspension/Leaf spring number |
6+7 |
|
Brake system |
Service brake |
Drum pneumatic braking |
Parking brake |
Central drum brake |
|
Auxiliary brake |
Engine exhaust brake |
|
Wheels and tyre size |
6+1/( 7.00R16) |
Material |
Water Tank |
High quality carbon steel plate, anti-rust treatment |
|
Capacity
|
Total |
4000L |
|
Water Tank |
1000L |
||
Foam Tank |
3000L |
||

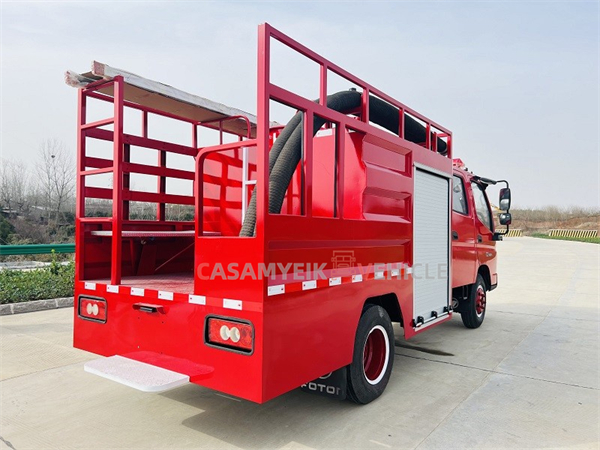

Equipment box |
Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. |
||

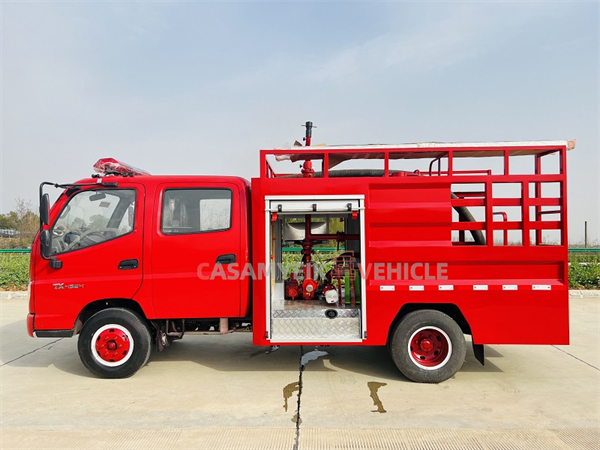

pump room |
on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. |
||
Additional drive system |
Use sandwich PTO, splashing-type lubricate, can put out fire when driving. |
||
Additional operation system |
PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on |
||
Additional cooling system |
The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating |
||
Additional Electrical system system |
warning light ,warning sirens |
||
Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge |
|||
Fire lights, pump room lights, equipment box lights |
|||
