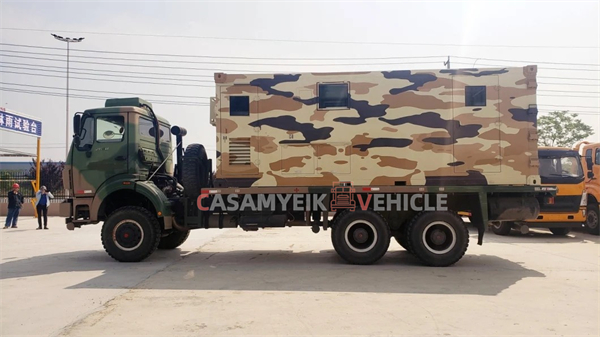

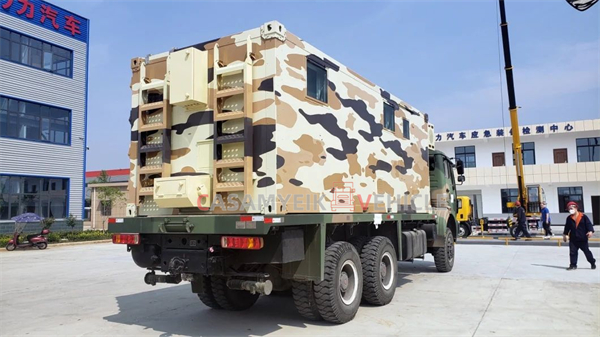

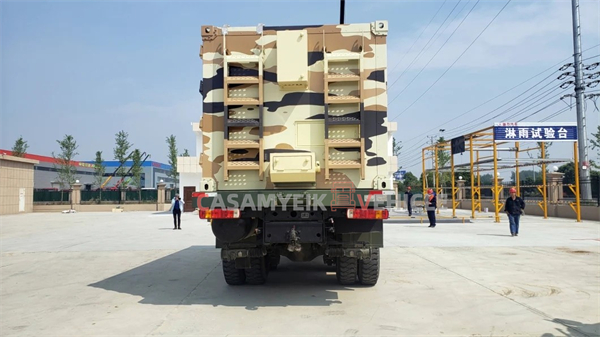

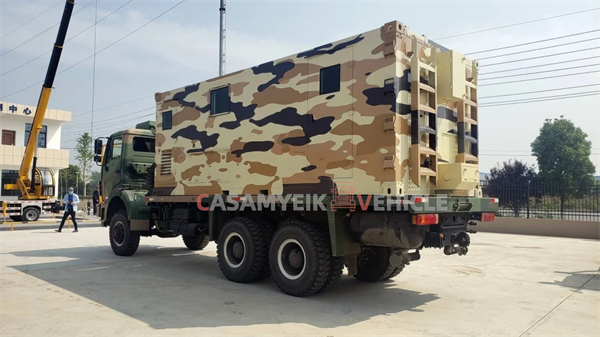

Personnel Carrier Truck

SPECIFICATION

Dimension

8347*2500*3417mm

Approaching angle/Departure angle

26/30°

Overhang(front/rear)

1410/1870mm

Wheel base

3800+1450mm

Max speed

         85km/h

Curb weight

12200kg

Loading capacity

13800kg

Slope climbing capability

Max.30%

Engine

Model

WD615.34,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

250/2200 (kw/rpm)

Max.torque

1350/1200-1600(Nm/rpm)

Emission stantard

EuroII

Fuel tanker capacity

400L Steel

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS150A, mechanism,9 forward gears,1 reverse gear, with overspeed gear,     manual operated,

Gear ratio of gear box

12.11/8.048/5.96/4.42/3.36/2.41/1.77/1.32/1.00     R: 12.66

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098,whole circulation in ball, hydraulic booster

Frame

straight beam width

Front axle                              (Mercedes  Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle              (Mercedes  Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/180Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

Long cabin with single bed ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver;     With inner A/C


Upper

Super Structure

Size(L*W*H)

4800*2300*2050

Material

Carbon steel and Iron corrugated plate
