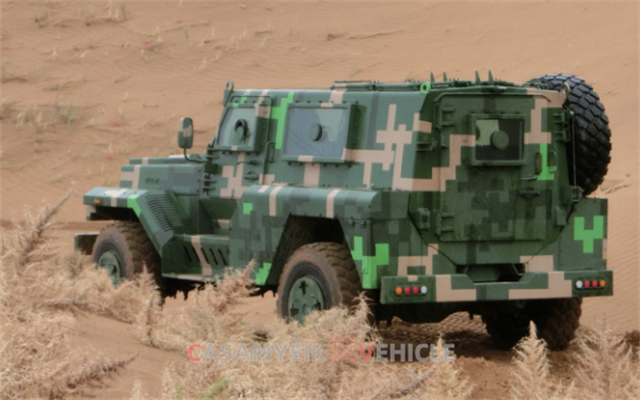

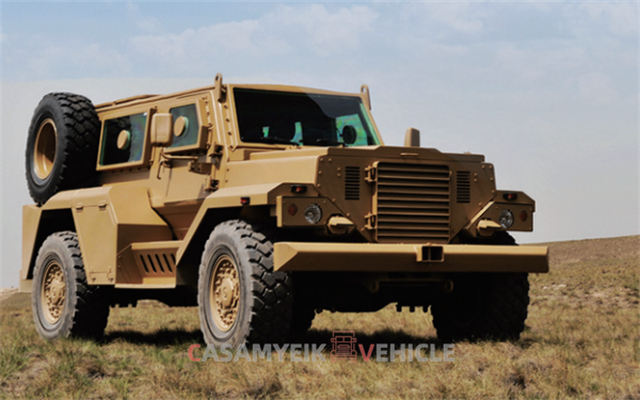

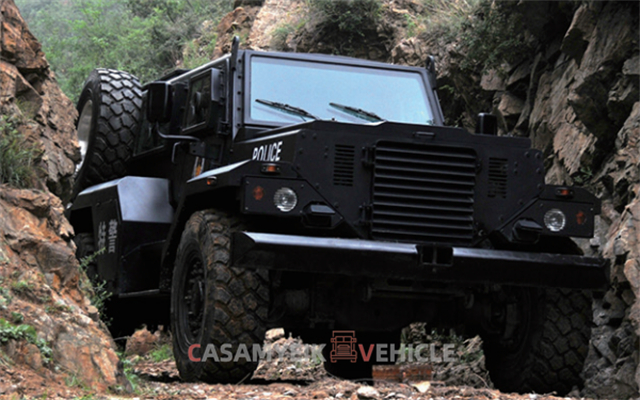

4X4 High Protection Off-road Special Vehicle

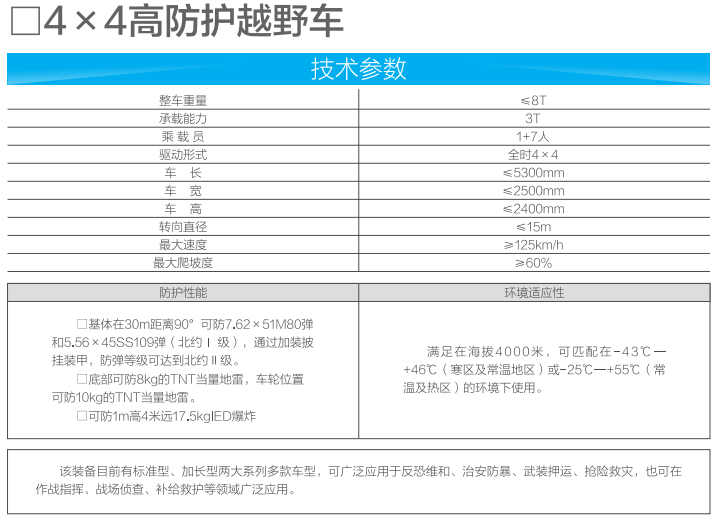

Technical parameters

Vehicle weight：≤8T

Bearing capacity：3T

Passenger：1 + 7 persons

Drive form：Full time 4 × 4

Conductor：≤5300mm

Vehicle width：≤2500mm height：≤2400mm

Steering diameter：≤15m

Maximum speed：≥125kmh

Maximum climbing gradient：60%

Protection performance：

The mouth base body can prevent 7.62 at a distance of 30 m and 90 ° × 51m80 and 5.56 × 45ss109 (NATO level 1) can reach NATO level by adding armor.

The bottom of the mouth can prevent 8kg TNT equivalent mines, and the wheel position can prevent 10kg TNT equivalent mines.

It can prevent 17.5kged explosion 1m high and 4m away

Environmental response：

It can be used at an altitude of 4000 meters and can be matched with the environment of - 43-46 ℃ (cold and normal temperature areas) or - 25 ℃ + 55 ℃ (normal and hot areas).

At present, the equipment has two series of standard and extended models, which can be widely used in anti-terrorism and peacekeeping, public security, armed escort and disaster rescue, and also can be widely used in combat command, battlefield investigation, rescue and other fields.
