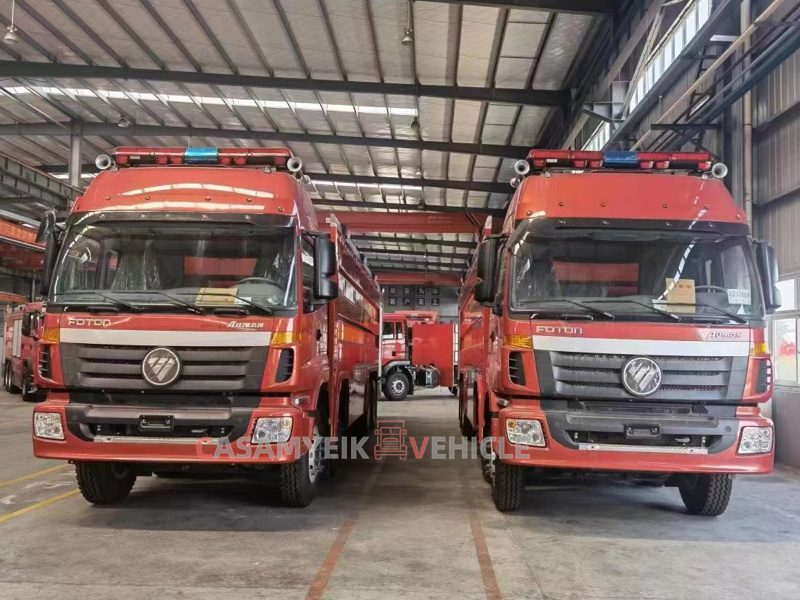

1,FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis matchable
Key words:firefighter/engine/fire department/rescue vehicle/forest fire/fire station/fire engines/fire apparatus/brush truck
1.Main parameters of the whole vehicle:
Overall dimension |
13000*2550*3700mm |
Maximum total mass |
55000KG |
Liquid carrying capacity |
Carrier water 30000l, foam 2000L |
Maximum speed |
95km/h |
Rated flow of fire pump |
|
Rated flow of roof fire monitor |
48L/s 1.0MPa |
Range of roof fire monitor |
Foam ≥ 60m, water ≥ 70m |
2.Detailed parameters of chassis:
Model |
BJ1313VNPKJ-5 |
|
Drive style |
eight×four |
|
Steering wheel position |
Left rudder |
|
Vehicle design parameter |
Vehicle dimension (mm) chassis dimension (L×wide×Height) (mm) |
11940X2495X3500 |
Wheelbase (mm) wheelbase (mm) |
1800+4700+1350 |
|
Wheelbase front / rear (mm) track (front / rear) (mm) |
2020/1880 |
S) vehicle design parameters |
Maximum speed (km / h) |
92(5.73)/110(4.8) |
||
Maximum climbing capacity,% (full load) |
36(5.73)/31(4.8) |
|||
Kerb weight (kg) |
11580 |
|||
Maximum total design mass (kg) |
55000 |
|||
Carrying number |
3 |
|||
Basic parameters |
Engine |
Model |
WP10. 340E32 |
|
Fuel |
Diesel |
|||
Power (kW / PS / RPM) rated power [kW / PS (R / min)] |
250/340/2200 |
|||
Max torque (nm / RPM) [n · m (R / min)] |
1350/1200-1600 |
|||
Displacement (ML) |
9.726 |
|||
Emission standard |
Euro III |
|||
Clutch |
Clutch type |
Φ430 pull |
||
Operating style |
Manual hydraulic pneumatic assist |
|||
Gearbox transmission |
Model |
12jsd160ta iron |
||
Operating style |
Mechanical |
|||
Front axle |
Type |
Drum |
||
Rated load (T) |
7.5 |
|||
Rear axle |
Type |
13T (Steyr |
||
Reduction ratio |
5.73 |
|||
Rated load (T) |
13T |
|||
Suspension |
Front suspension |
Type |
Longitudinal leaf spring assembly + stabilizer bar + shock absorber |
|
Leaf spring number |
13 |
|||
After rear suspension |
Type |
Integral balanced suspension (leaf spring) |
||
Leaf spring number |
14/12 |
|||
Steering gear |
Steering gear type |
AM80L |
||
Brake |
Service brake |
Double circuit pneumatic drum type |
||
Parking brake |
Energy storage spring cut-off braking |
|||
Auxiliary brake |
Engine exhaust brake |
|||
Chassis |
Frame specifications |
Front 865 / rear 865243 / 320×ninety×(8+7) |
||
Steering machine |
AM90H-S |
|||
Fuel tank volume / material |
380L aluminum alloy |
|||
Tires and rims |
12.00R20 radial tire |
|||
Main basic configuration |
Body type |
High roof |
||
Cab mounting type |
High roof |
|||
Cab lift type |
Manual |
|||
Body combination (seat, door, window, rearview mirror) (seats, doors and windows, rearview mirrors) |
Manual door and window + airbag seat (standard) + manual rear view mirror |
|||
Entertainment system (including radar) |
MP3 + Radio + USB + no radar |
|||
Air conditioning |
Manual air conditioner |
|||
Air filter type |
horizontal |
|||
The loading parameters are as follows: |
||||
|
|
|
|
|
2.Upper structure and performance parameters
General arrangement |
The whole vehicle is composed of the firefighter's cabin and the body. The body is arranged in a three part structure. The front part is an equipment box, the middle part is a water tank, the rear part is a water pump room, and the tank body is a parallelepiped box type tank. |
|
3.1 3.1Equipment box and pump room
3.1.1 3.1.1Equipment box
structure |
The main frame structure adopts high-quality square pipe welding, the outer decorative plate adopts carbon steel plate welding, and the roof is anti-skid, which can When walking, turn over pedals are set on both sides, with anti-skid design. |
Equipment box |
The equipment box is located at the rear of the passenger compartment, with aluminum alloy roller shutter doors on both sides and lamps inside. Storage boxes shall be set in the equipment box room according to needs. The side lower skirt is equipped with a tool box and a roller shutter door, which can place small tools |

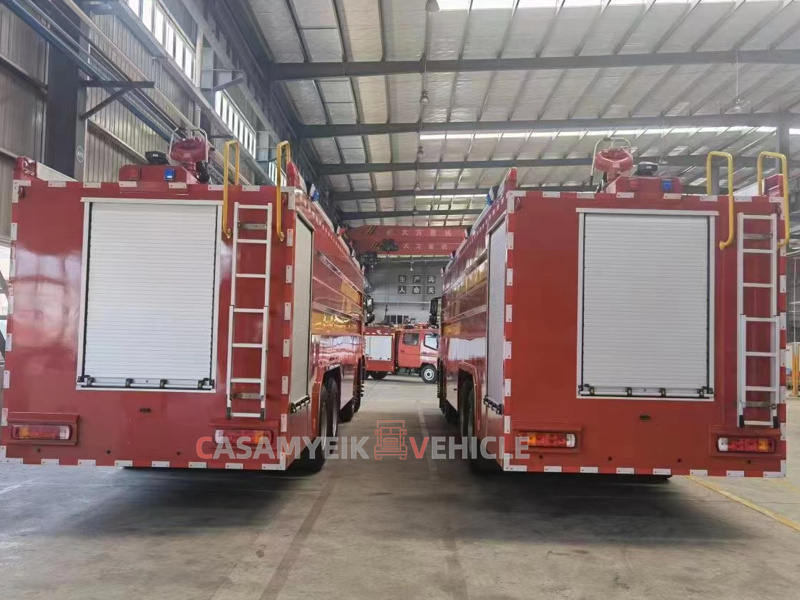

Pump house |
The pump room is located at the rear of the whole vehicle. Aluminum alloy roller shutter doors are set on both sides and at the rear. There are lights in the pump room. Both sides of the pump room Some common equipment can be placed |

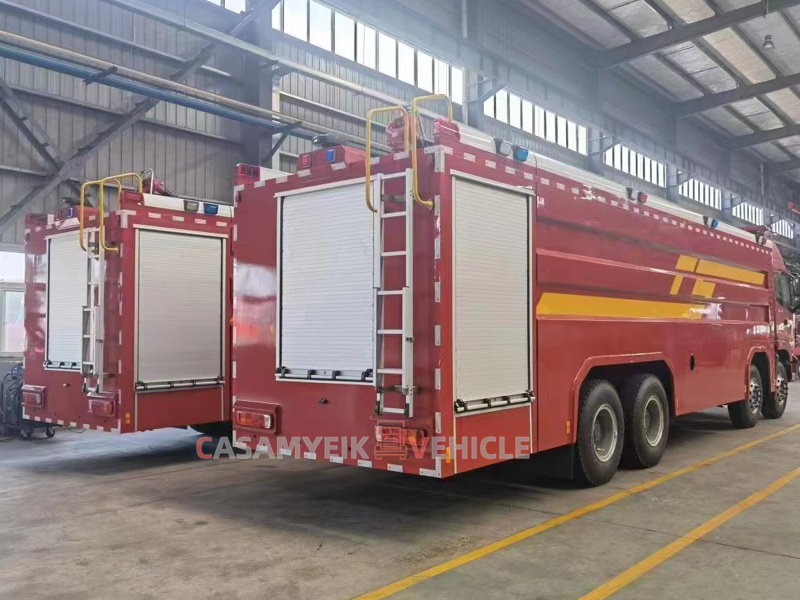

Ladder climbing and climbing hand |
The rear ladder is an aluminum alloy two section inverted ladder, which is not more than 350mm from the ground when used. It can be pulled from the vehicle The hand is made of anti-skid round steel pipe with groove on the surface, and the surface is sprayed with plastic. |
3.1.2 pitcher
capacity |
30000L |
texture of material |
High quality carbon steel, 3-5mm thick |
Can body setup |
Manhole: one dn470 manhole with quick locking / opening device |
Overflow port: one DN65 overflow port |
|
Drain port: one Dn40 water tank drain port with ball valve |
|
Water injection port: connect one DN65 connector on the left and right sides of the water tank |
|
Water inlet and outlet: one water tank is set to the water inlet pipe of the water pump, which is manually controlled, and one water pump is set to fill the water tank Pipe, DN65 valve, manual control |
3.1.3 Foam tank
capacity |
2000L |
texture of material |
High quality carbon steel, 3-5mm thick |
Can body setup |
Manhole: one dn460 manhole with quick locking / opening and automatic pressure relief device |
Overflow port: one Dn40 overflow port |
|
Raffinate outlet: one Dn40 foam tank raffinate outlet |
|
Foam outlet: set a Dn40 foam tank to the foam outlet pipe of the water pump |
4Hydraulic system 4.1 4.1Water pump
model |
CB10 / 60-tb low pressure fire pump for vehicles |
form |
low pressure |
Rated flow |
60L/s @1.0MPa |
Outlet rated pressure |
1.0MP |
Maximum suction depth |
7m |
Water diversion device |
Vacuum water diversion |
Diversion time |
Maximum suction depth ≤ 50s |
4.2 4.2Piping system
Pipe material |
High quality seamless steel pipe |
Suction pipe |
A DN125 suction port is set at the rear side of the pump house |
Water injection pipeline |
One DN65 water injection port is set on the left and right sides of the water tank, and one DN65 water pump is set in the pump room to inject water into the tank |
Outlet pipeline |
One DN80 normal pressure water outlet with valve and cap is set on the left and right sides of the pump house; 1 DN65 atmospheric pressure water outlet with valve and cap |
Cooling water pipeline |
Cooling water pipeline and control valve equipped with cooling power takeoff |
5Fire extinguishing device
6Fire control system
The control panel mainly includes cab control and pump room control
Cab control |
Fire monitor control handle in front of the vehicle, water pump off gear, alarm lamp alarm, lighting and signal device control, etc |
Pump room control |
Upper main power switch, parameter display and status display |
Additional electrical |
Set independent circuit |
Auxiliary lighting |
The fireman's room, the water pump room and the equipment box are respectively equipped with lighting lamps, and the control instrument panel is equipped with lighting and indicator lights |
Strobe lamp |
Red and blue strobe lamps are installed on both sides of the vehicle body |
Warning device |
Long row of all red alarm lights, installed on the top of the cab |
Fire lighting |
One 35W fire searchlight is installed at the rear of the top |
8Surface treatment
Topcoat |
High quality domestic paint |
colour |
The main color of the exterior surface of the vehicle is ro3 fire red |
9Arrangement and allocation of onboard fire fighting equipment
1Equipment layout
1 |
According to the actual needs of fire fighting and the fire operation procedures, take and place them nearby. |
2 |
Use special fixtures for anti-corrosion, anti vibration, anti falling and anti scratch. |
3 |
The signs shall be eye-catching and operated by multiple persons without mutual interference. |
