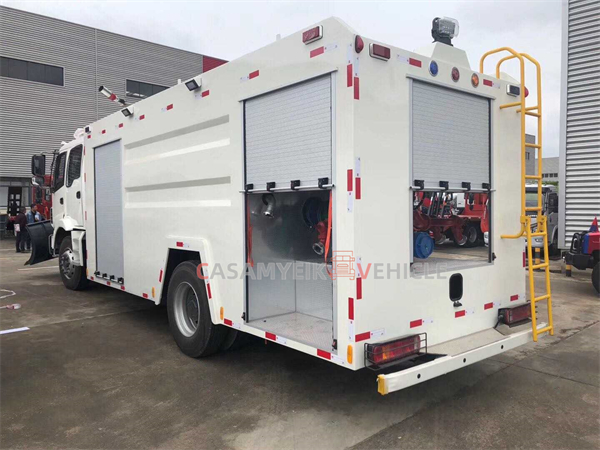

Fire Fighting Truck-FOTON

Vehicle model

Auman

Cabin

AUMAN-ETX-4x2

Whole vehicle main dimensions

Overall dimensions (LxWxH)mm

7500×2230×3250

Wheel base(mm)

4500

Weight data

Curb weight(kg)

3980

Gross vehicle weight（kg）

6495

Persons in cab

3

Whole vehicle main performance

Max. speed（km/h）

95

ENGINE

Model

WP10.270E32

Emissions standards

EuroⅢ

Horse Power（Hp）

270

Rated Power（kw/rpm）

170

Gearbox

Model

RTD11509C,9JS119,9JSD150T-B

Brake system

Service brake

Drum pneumatic braking

Parking brake

Central drum brake

Auxiliary brake

Engine exhaust brake

Wheels and tyre size

6+1(12.00-R20)

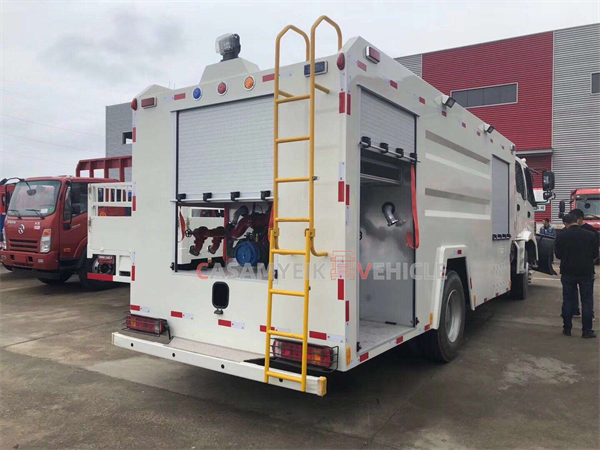

Fire Fighting System

Fire Pump

Model

CB10/40

Flow/ L/s

40

Pressure/MPa

1.0

Water Suction Time/s

Less than 35(when height is 7m)

Installation Mode

Rear-mounted

Fire Monitor

Model

PS40

Pressure/MPa

1.0

Flow/ L/s

40

Range/m

More than 60

Horizontal Rotating Angle/°

360

Pitching Rotating Angle/°

-30~80

Operation Mode

Manual

Pipeline Systems

Internal Inflow Pipe

One pc φ125mm pipe with one  pc φ125mm flygate

External Inflow Pipe

Installed behind the pump,    φ125mm, with 4 pcs 2m water suction pipes

Water Outlet Pipe

-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves

-One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve

Water Injection Pipe

-One pc φ50mm internal water injection pipe

-One pc φ65mm external water injection pipe

Cooling Water Pipe

Equipped with stainless steel ball valve

Drain Pipe

In the lowest position of the pipe

Water Tank

Loading Capacity/kg

6000

Material

Quality Carbon Steel Plate

Thickness

Baseboard and Endplate: 4mm

Side plate and top plate: 3mm

Structure

Welded Type, Anti-swing Plate Inside

-One Manhole, with fast lock & unlock device

-One Overflow Device

-One Level Indication Device

-One Drain Hole, controlled by manual valve

Electrical System

-Above the driving room are lightbar & 12V/60W fire scene light

-Above both sides of the vehicle are two flash lights

-100W alarm light

-Switches of all the lights, alarms and pumps on the control panel.

Foam Tank

Structure

Connected

Capacity/kg

2000

Material

Quality

Base: Side Plate: Anti-swing Plate

4:4:3

Other Detail

-One Manhole, with fast lock & unlock and

pressure-release device

-One Overflow Device: DN50mm

-One Drain Hole with ball valve: DN40

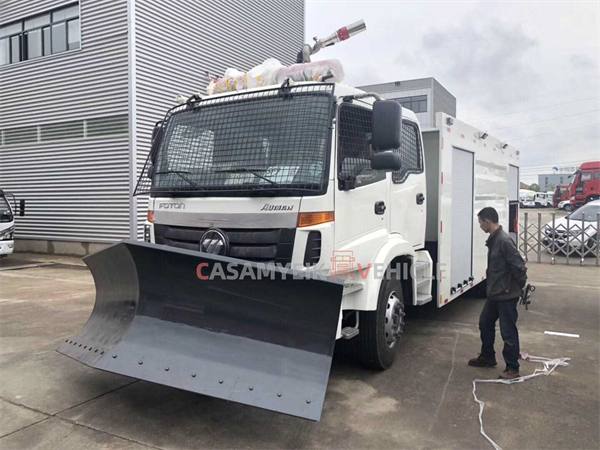

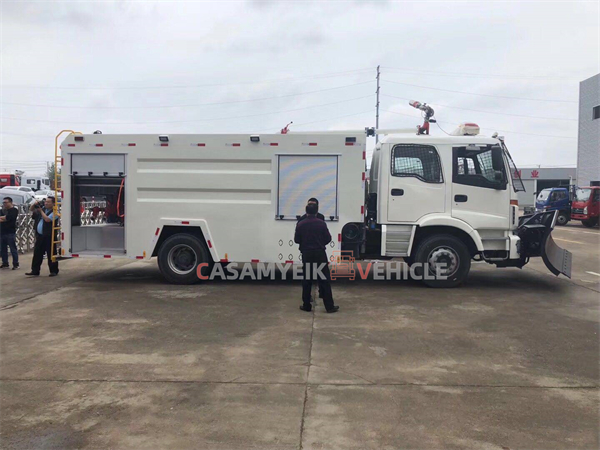

Hydraulic shovel:

A V-shape hydraulic shovel is installed in front of the vehicle; it can effectively remove the obstacle on the road
1) The shovel is designed of light weight, it can remove more than 1000kg obstacles.
2)Hydraulic shovel can move up and down and adjust its height according to the practical situation
3)The shovel is remote controlled by the driver obstacle remover ( plough ）

Protection nets of the glasses and lights

Glasses of the vehicle windows and the vehicle lights should be protected by the steel nets. The protection net of the front windshield is of integral turnover type. Its tilting movement and positioning is remote controlled by the hydraulic driving cab.
