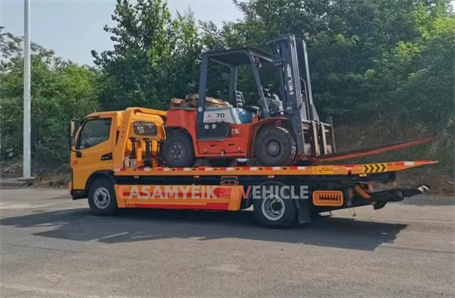

Tow truck bed （Wrecker bed）

Technical Specification

upper body specification

Platform

Loading

4T

Demension

5200（17FT）*2300mm

Under fork

Max lifting weight

4T

Full extension max lifting weight

1430KG

Max effective length

1640mm

Telescopic stroke

1340mm

Winch

Qty.

1 unit

Each rated traction force

40KN

Wire rope specifications

12-6X19S-FC1670BZS

Wire rope diameter

φ12mm

Wire rope length

25mm

Wire rope minimum linear velocity

3.23m/min

Accessories

Protection

Rear and side protection, Carbon steel to manufacturer’s standard.

Mud guard / Mud Flap

Mudguard and rubber mud flap, to manufacturer’s standard.

Spare Wheel Bracket

1piece, to manufacturer’s standard.

Light

Electrical system in accordance to Chinese standard, complete with Chinese’s light for tail, signal, reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck.

Painting

1 Coat of anti-corrosive prime, 2 coats of final paint . Colour as request

Reflector/remark

3M/ manufacturer's standard
