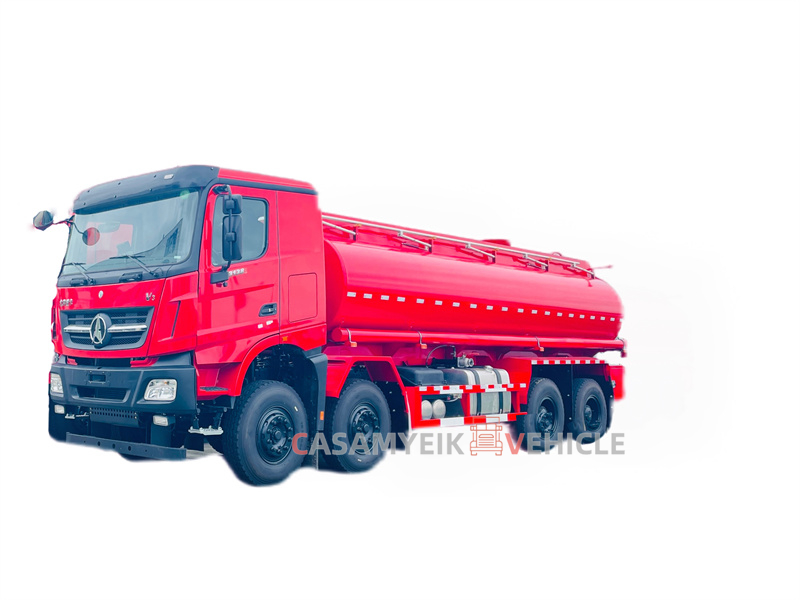

Fuel Tanker Truck-BEIBEN 8*8 oilfield use

Vehicle model

CSM5321GJY

Chassis brand

Beiben Truck

Drive type

LHD，RHD

Cabin

V3

Dimensions date

Wheel base(mm)

1500+5050+1450

Engine

Model

WP10.380E32,WP10.420E32

Emissions standards

Euro 2

Horse power

380hp,420hp

Fuel type

Diesel

Gearbox

Model

12JS200T

Front axle

Loading weight

7.5T*2

Rear axle

Loading weight

13T*2

Wheels and Tyre size

12+1(12.00R20)

Volume

23000-35000L

Tank material and thickness

Part of the tank material、thickness：Q235B carbon steel, 5mm

Head material and thickness: Q235B carbon steel, 5mm

Emergency shut-off valve

Quantity: 1

Material thickness:  carbon steel /aluminum alloy

Manhole cover

Type: Aluminum European standard breathing valve with tank port

Quantity: 1

Diameter: 500mm

Oil pump and pipeline

Oil pump, seamless steel pipe;

 Pump pressure: 0.6Mpa;

seamless steel pipe;

Pump inlet and outlet

Specification: choose one of DN50/DN65, aluminum alloy

Control method: manual

Refueling reel and fueling gun

Optional:15m automatic return reel nozzle

Fuel dispenser

Optional:Three gold medals Chinese and English fuel dispenser (with ticketing function)

power take off

with

Climb the ladder

Welded independent climbing ladder at the end of the tank-movable European style climbing ladder with anti-skid board

Top guard

Protective handrails are installed on both sides of the top of the tank-aluminum alloy folding guardrail

Anti-skid plate installed on the top of the tank-anti-skid walkway

Tube box

Number: 2

Installation position: one on each side of the tank

Specifications: The length of the tube box is the same as the tank body, and the cross section is circular

Water diversion pipe: each pipe box has a built-in water diversion pipe with male and female end joints. The joint model is DN50/DN65.

Fire extinguisher barrel

Material: Q235

Quantity: 2

Fire extinguisher

Quantity: 2

exhaust pipe

Rear to front

Electrostatic device

Metal electrostatic plate, electrostatic belt device: 1 each

Tank bottom auxiliary beam

Made of Q345 carbon steel plate
