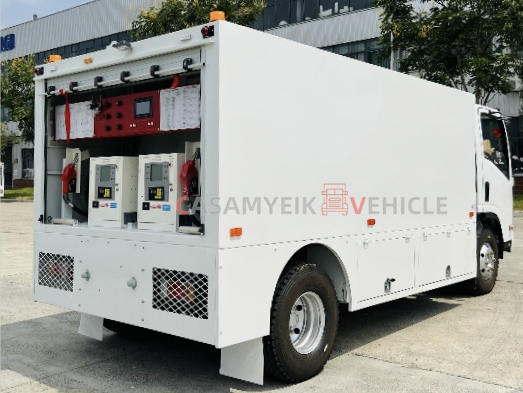

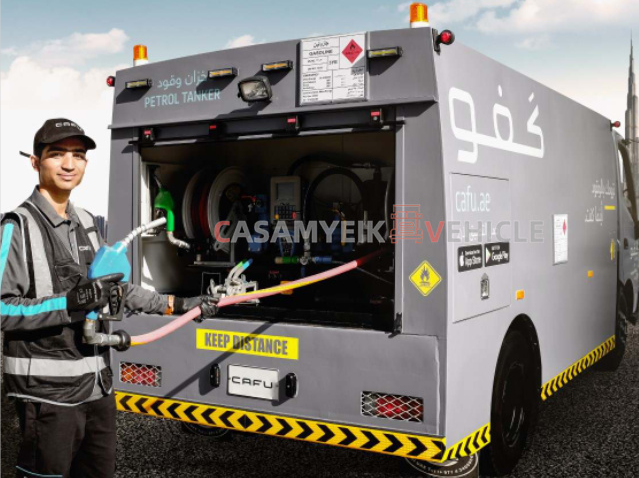

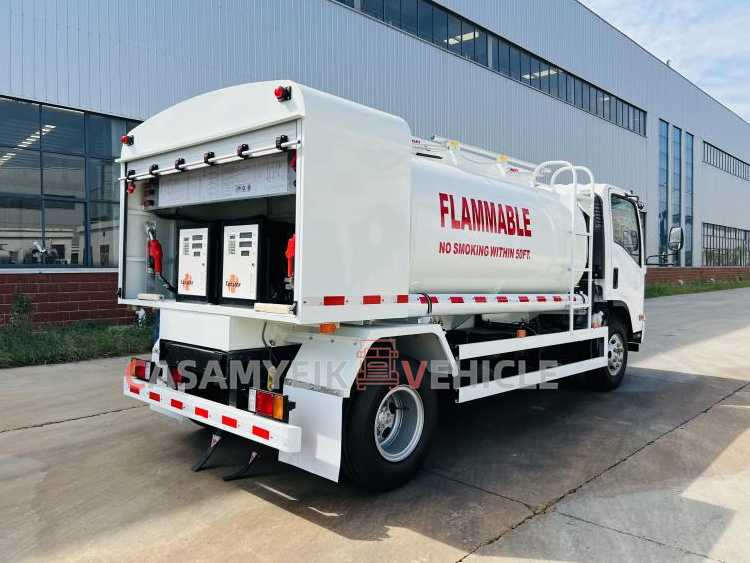

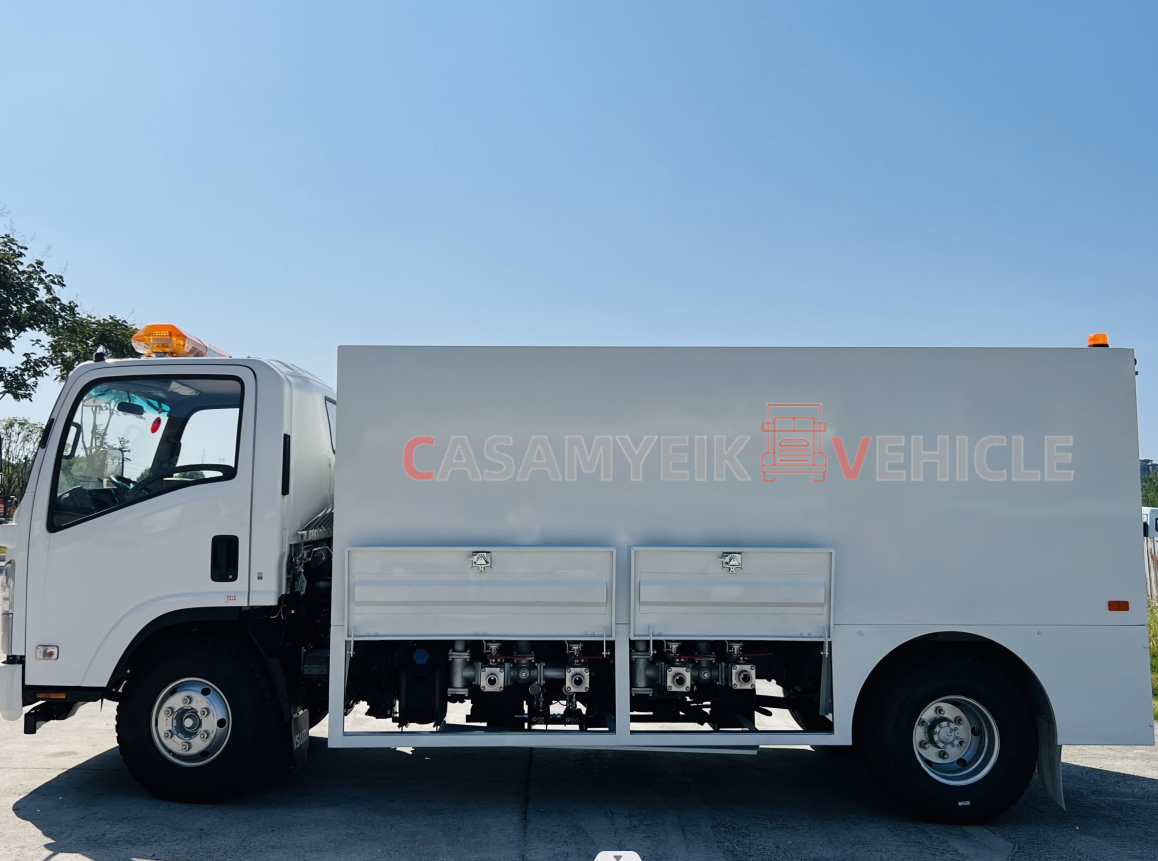

5CBM Mobile fuel station truck-CAFU model

Technical Specification

 Truck Specification

Product Name

fuel Truck

Truck Model

5108GJYE5

Tank volume

5000L (3000liter gasoline & 2000liter Diesel)

Overall dimensions (L×W×H)

About 5800×2260×2290mm

Chassis Specification

Chassis brand

FOTON

Chassis Model

BJ1088VEJE

Cabin

LHD, with A/C

Drive type

4x2

Fuel type of engine

Diesel

Engine

Model

F3.8s3141

Maximum horse power

141HP

Number of cylinders

4

Emission standard

Euro 3

Gear box

Type

6S558  6-forwarder & 1 reverser ，Manual .

Axle

Front Load capacity (ton)

2.85T

Rear Load capacity (ton)

6T

Tyre

Model

7.50R16

Quantity

6

upper body specification

Fuel Tanker

Capacity

3000L Gasoline + 2000L Diesel

Compartment

2

Tank Material

Q235 Carbon steel

Thickness of tank materiel

tank shell : 4mm, end cover :4mm.
