Technical Specification |
|||
|
Truck Specification |
|
||
|
Product Name |

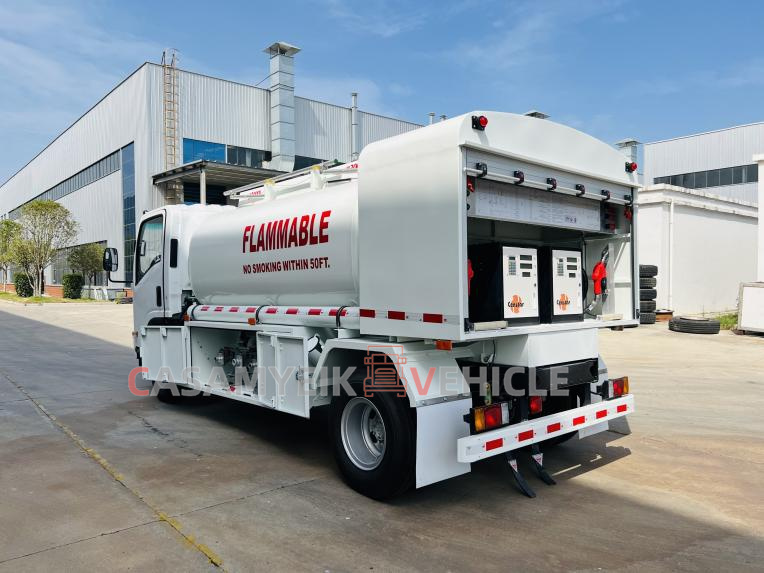

Fuel Truck |
||
|
Truck Model |
CSM5051GJY |
||
|
Tank volume |
5000L |
||
|
Overall dimensions (L×W×H) |
About 5800*2180*2200mm |
||
|
|
|
||
|
Chassis Specification |
|
||
|
Chassis Model |
ZZ1107 |
||
|
Chassis brand |
HOWO |
||
|
Cabin |
HOWO light truck，single row , A/C |
||
|
Drive type |
4*2 |
||
|
Fuel type of engine |
Diesel |
||
|
Engine |
Brand / Model |
YN4102QBZL |
|
|
|
Maximum power |
85KW/116HP |
|
|
|
Emission standard |
Euro 2 |
|
|
Gear box |
Type |
WLY646 |
|
|
Axle |
Front Load capacity (ton) |
2.4 |
|
|
|
Rear Load capacity (ton) |
4.2 |
|
|
Tyres |
Model |
7.50R16 |
|
|
|
Quantity |
6+1 |
|
|
upper body specification |
|
||
|
Fuel Tanker |
Tank volume |
5000L |
|
|
|
Transporting medium |
Gasoline+diesel |
|
|
|
Compartment |
2 |
|
|
|
Tank Material |
Q235 Carbon steel |
|
|
|
Thickness of tank material |
tank shell : 4mm, end cover :4mm. |
|
|
|
Divider plate |
Q235 Carbon steel |
|
|
|
Anti-wave plate |
Q235 Carbon steel |
|
|
|
Top walkway |
anti-slip sand walkway |
|
|
|
Tank shape |
Maximum profile design that maximizes volumetric capacity whilst achieving a low center of gravity. |
|
|
|
Design standard |
According to Chinese standard |
|
|
|
Testing |
Hydrostatic and air test on each compartment |
|
|
|
Welding |
Gas shielded arc-welding process |
|
|
Discharge system
|
Manhole Cover |
2pieces, manhole cover , on the top of tank |
|
|
|
Sea valve |
2 pieces |
|
|
|
Discharge pipe |
carbon steel |
|
|
|
Discharge Valve |
2pieces, aluminum ball valve. |
|
|
|
Inlet filter |
2pieces |
|
|
|
Discharge hosepipe |
2 pieces ,Inner wire wound transparent tube |
|
|
|
Electrostatic prevention equipment |
Anti-static Tape |
|
|
Refueling system |
pump |
Fuel pump |
|
|
|

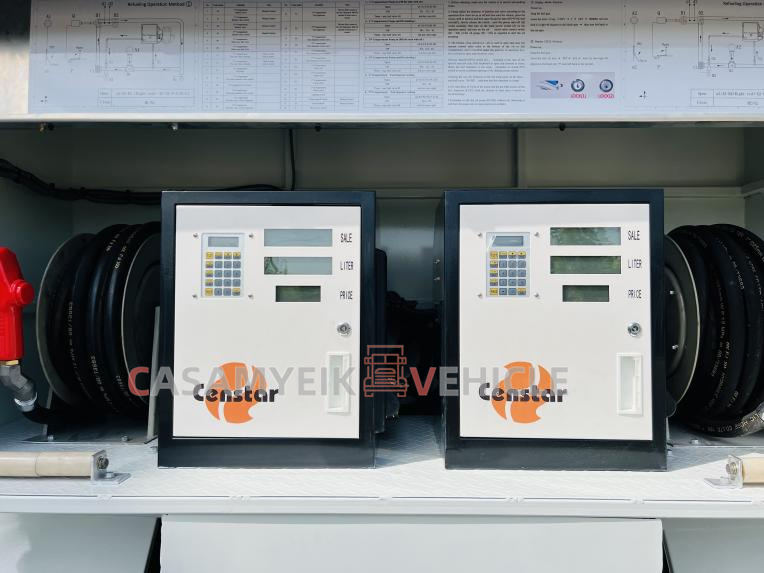

Fuel dispenser |
Flow :0~50L/min 2 units fuel dispenser on the rear of tank |
|
|
Accessories |
ladder |
Carbon steel , 1 piece,on the side of tank |
|
|
|
Walkway |
Carbon, Anti-skid pavement inside coaming |
|
|
|
Handrail |
Carbon steel,hand operation , installed outside of coaming, for anti-fall protection. |
|
|
|
Rear bumper |
Carbon steel to manufacturer’s standard. |
|
|
|
Side Under Run |
Carbon steel to manufacturer’s standard. |
|
|
|
Discharge hose box |
Carbon steel , 2 pieces |
|
|
|
Valve box |
Carbon steel , 1 piece |
|
|
|
Mud guard / Mud Flap |
Mudguard and rubber mud flap, to manufacturer’s standard. |
|
|
|
Spare Wheel Bracket |
1piece, to manufacturer’s standard. |
|
|
|
Light |
Electrical system in accordance to Chinese standard, complete with Chinese’s light for tail, signal, reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck. |
|
|
|
Fire Extinguisher Bracket |
Manufacturer’s standard, installed on both sides of the truck. |
|
|
|
Fire Extinguisher |
2 pieces, dry powder fire extinguisher |
|
|
|
Painting |
1 Coat of anticorrosive prime, 2 coats of final paint . Colour as request |
|
|
|
Reflector/remark |
manufacturer's standard |
|
