1,FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis(4*2/4*4/6*4/6*6/8*4/8*8) matchable.
2,Volume customerizd.
Keywords:feul truck/fuel tanker truck/feul tank truck/oil tanker truck/feul delivery tank truck/tank truck/ feul tanker truck capacity/ feul tank truck for sale/fuel tanker truck tarkov/feul cell truck/feul tank capacity of semi truck/diesel feul truck/feul truck airport/semi tanker/tanker lorry/jet feul/truck dimension/aviation feul/petroleum

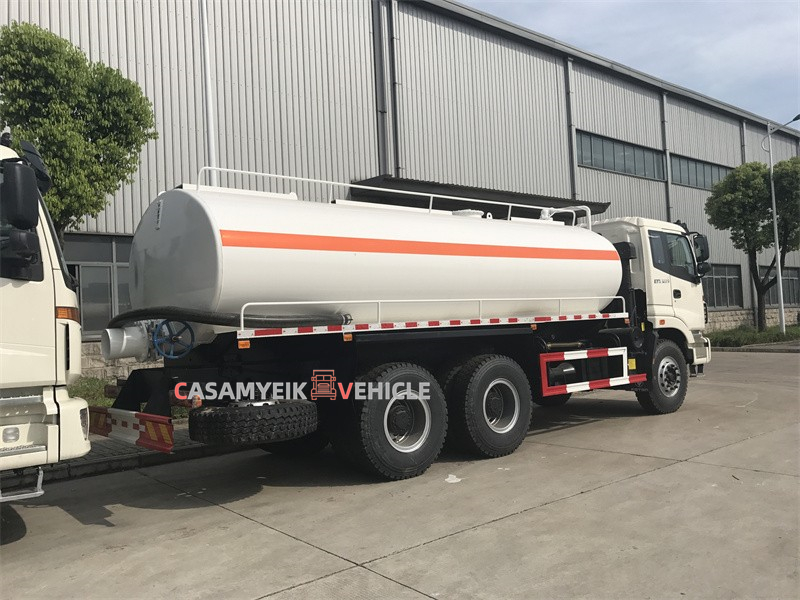

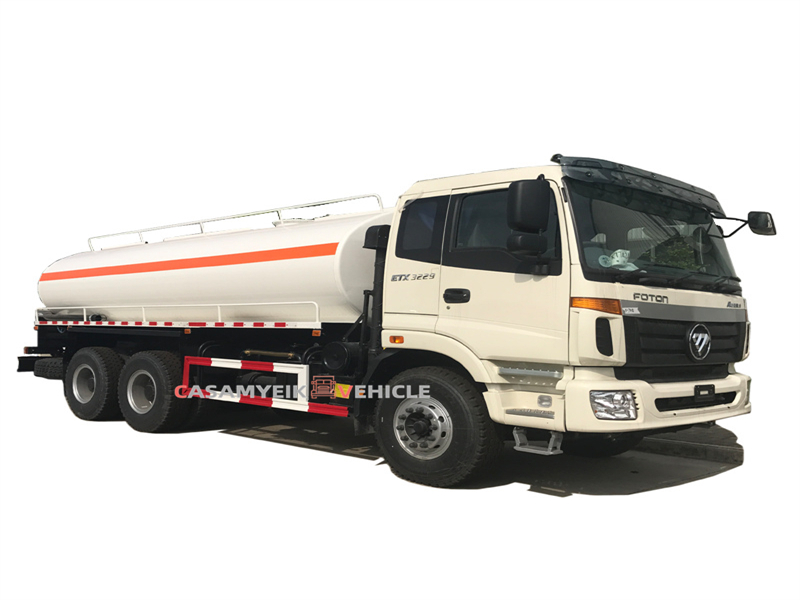

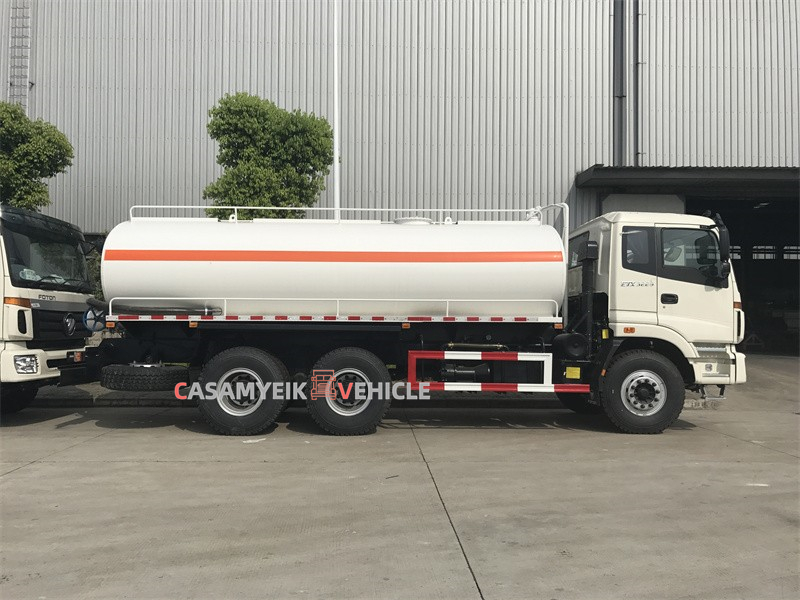

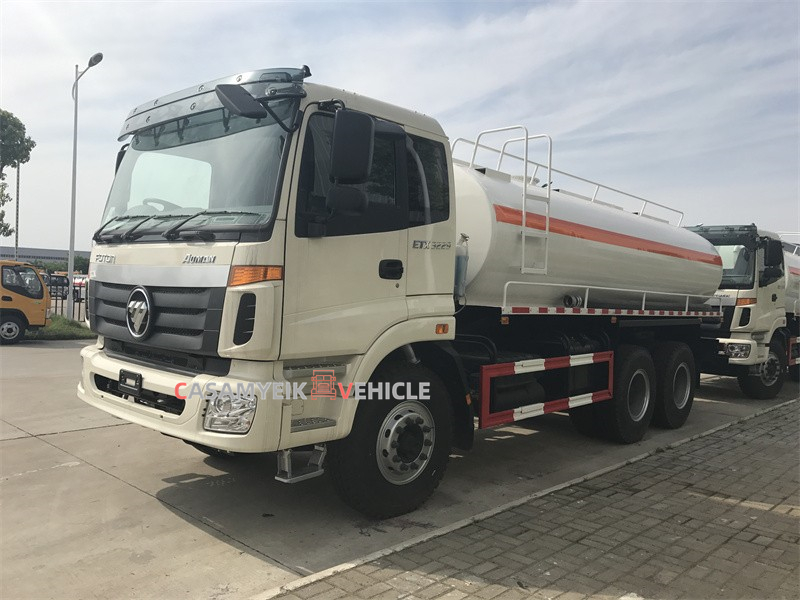

Foton 20000L fuel tank truck
Vehicle model |
CSM5250GJY |
|
Chassis brand |
AUMAN-ETX |
|
Drive type |
LHD/RHD |
|
Dimensions date |
Wheel base(mm) |
4500+1350,5700+1350 |
Engine |
Model |
WP10.270E32,WP10.340E32,WD615.50,WD615.34 |
Emissions standards |
Euro 3 ,4 ,5 |
|
Rated Power(kw/rpm) |
198,213,250 |
|
Horse power(hp) |
270,340,290,340 |
|
Fuel type |
Diesel |
|
Gearbox |
Model |
RTD11509C,9JS119,9JSD150T-B |
Front axle |
Loading weight |
7.5T |
Rear axle |
Loading weight |
13T*2 |
Wheels and tyre size |
10+1(12.00-R20) |
|
Fuel TANK Volume |
14000-23000L |
|
Tank material and thickness |
Part of the tank material、thickness:Q235B carbon steel, 5mm |
|
Head material and thickness: Q235B carbon steel, 5mm |
||
Emergency shut-off valve |
Quantity: 1 |
|
Material thickness: carbon steel /aluminum alloy |
||
Manhole cover |
Type: Aluminum European standard breathing valve with tank port |
|
Quantity: 1 |
||
Diameter: 500mm |
||
Oil pump and pipeline |
Oil pump, seamless steel pipe; |
|
Pump pressure: 0.6Mpa; |
||
seamless steel pipe; |
||
Pump inlet and outlet |
Specification: choose one of DN50/DN65, aluminum alloy |
|
Control method: manual |
||
Refueling reel and fueling gun |
Optional:15m automatic return reel nozzle |
|
Fuel dispenser |
Optional:Three gold medals Chinese and English fuel dispenser (with ticketing function) |
|
power take off |
with |
|
Climb the ladder |
Welded independent climbing ladder at the end of the tank-movable European style climbing ladder with anti-skid board |
|
Top guard |
Protective handrails are installed on both sides of the top of the tank-aluminum alloy folding guardrail |
|
Anti-skid plate installed on the top of the tank-anti-skid walkway |
||
Tube box |
Number: 2 |
|
Installation position: one on each side of the tank |
||
Specifications: The length of the tube box is the same as the tank body, and the cross section is circular |
||
Water diversion pipe: each pipe box has a built-in water diversion pipe with male and female end joints. The joint model is DN50/DN65. |
||
Fire extinguisher barrel |
Material: Q235 |
|
Quantity: 2 |
||
Fire extinguisher |
Quantity: 2 |
|
exhaust pipe |
Rear to front |
|
Electrostatic device |
Metal electrostatic plate, electrostatic belt device: 1 each |
|
Tank bottom auxiliary beam |
Made of Q345 carbon steel plate |
