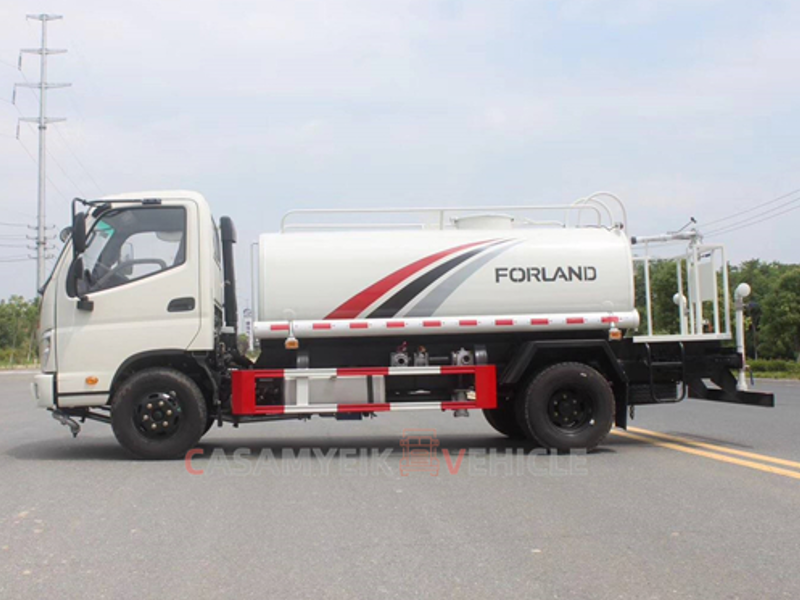

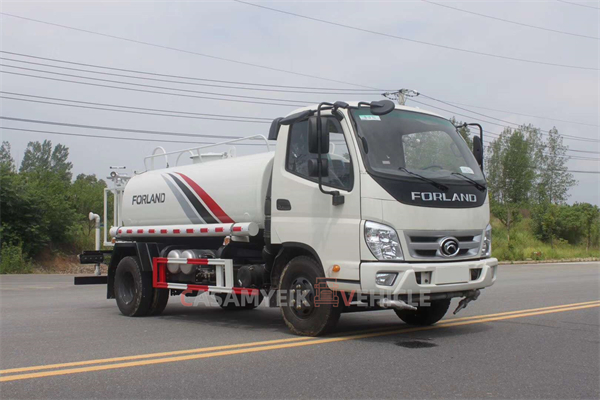

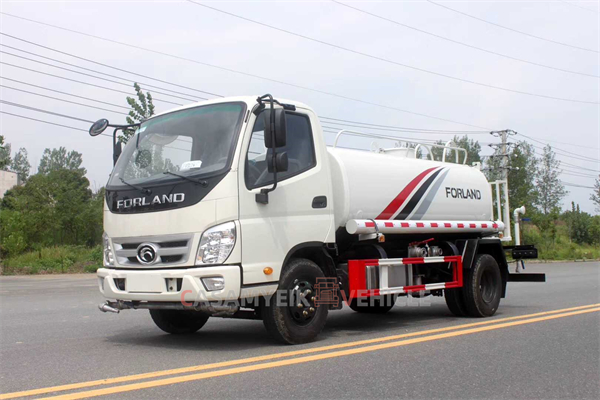

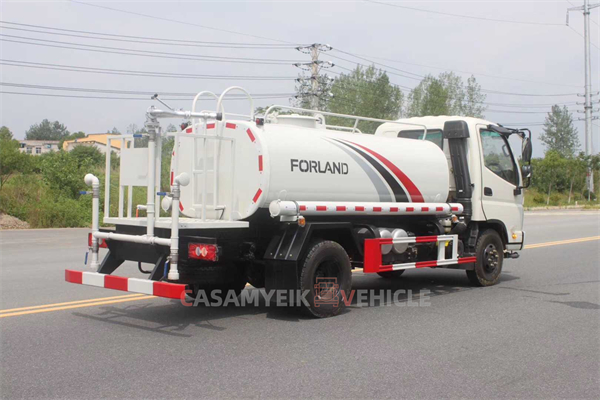

Water Tank Truck

Vehicle model

AUMARK-T33

Cabin

Single row/W1800/left rudder

Whole vehicle main dimensions

Overall dimensions (LxWxH)mm

5875×1915×2230

Wheel base(mm)

3360

Weight data

Curb weight(kg)

2100

Gross vehicle weight（kg）

4485

Persons in cab

3

Whole vehicle main performance

Max. speed（km/h）

95

ENGINE

Model

BJ493ZLQV1

Emissions standards

EuroⅢ

Displacement（L）

2.771

Rated Power（kw/rpm）

80

Max torque （N.m/rpm）

280

Gearbox

Model

JC5-28

Front axle

Type/Mainreducetion ratio

2.2T

Rear axle

Type/Mainreducetion ratio

5.0T/6.142

Suspension

Front suspension/Leaf spring number

3+1

Rear suspension/Leaf spring number

6+7

Brake system

Service brake

Drum pneumatic braking

Parking brake

Central drum brake

Auxiliary brake

Engine exhaust brake

Wheels and tyre size

6+1/( 7.00R16)

Tank

Material

Q235 carbon steel

Thickness

5 mm

Capacity

5000L

Overall dimensions(mm)

3200×2000×1000

Standard

Equipment

1.Equipped with front,rear,side sprinkler (sprinkling width>14m )

2.Equipped with rear working platform with water cannon which can be     turned all-round (range>28m),can be adjusted into flinging, heavy rain,                          light rain, drizzle model, with security barrier.
3.Equipped with CLW  pump(suction lift>6m)
4.Equipped with fire valve, water valve, and filter gauze
