Swing Arm Garbage Truck（5-6CBM）-Dongfeng

Truck Specification

Product Name

SKIP LOADER GERABGE TRUCK

Truck model

CSM5050ZBS

Overall dimensions (L×W×H)（mm)

about 6900×2200×2980 （2550）

Chassis Specification

Chassis Model

EQ1070

Chassis brand

Dongfeng

Cabin

DFAC，single row , with A/C,  LHD

Drive type

4*2

Wheelbase

3800mm

Fuel type of engine

Diesel

Engine

Brand / Model

ChaoYang 4102

Maximum power

88KW/120hp

Emission standard

Euro 2

Gear box

Type

5-speed

Axle

Front Load capacity (ton)

2.5T

Rear Load capacity (ton)

5T

Tyres

Model

7.50R16

Quantity

6+1 spare tire

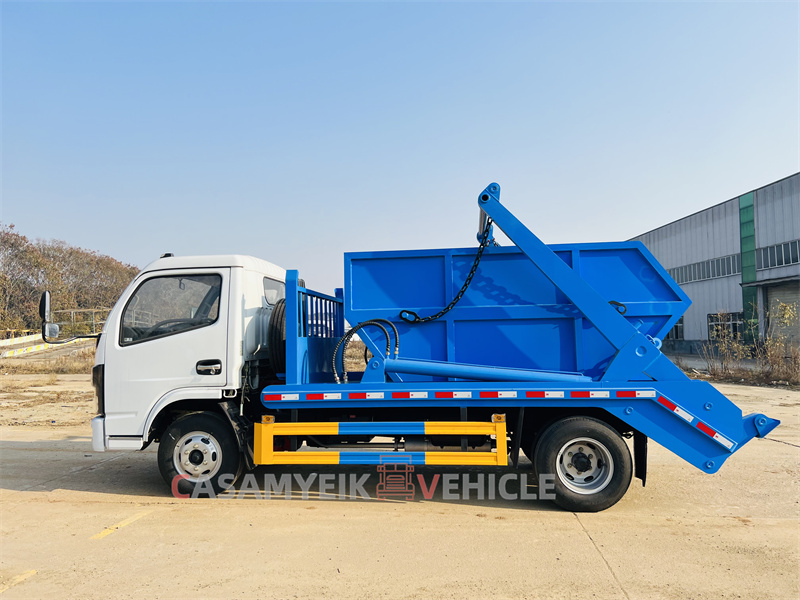

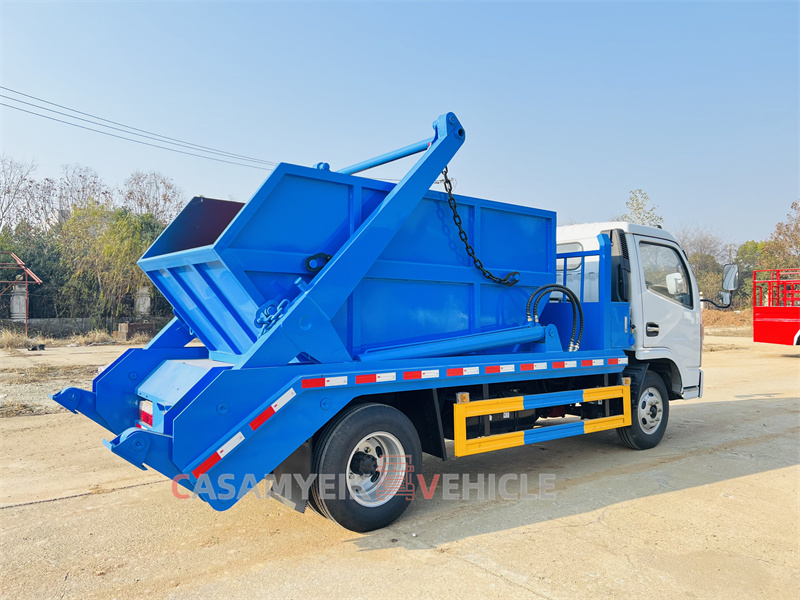

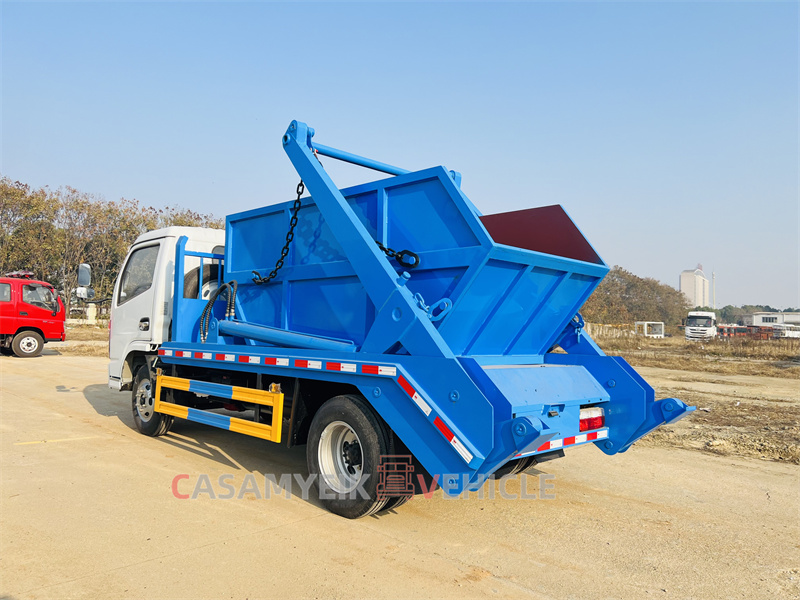

Upper parts of Skip loading

Garbage Bin Volume

5CBM , Carbon steel material

Dimensions can be designed according to the wheelbase of truck chassis and clients' requirements.

Basic configuration

PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg

Swing arm maximum pivot angle 145 ;

Remarks

1. 4pcs hydraulic oil cylinder

2. 2pcs hydraulic loading leg

3. Swing arm rack and iron chain

4. The color is optional
