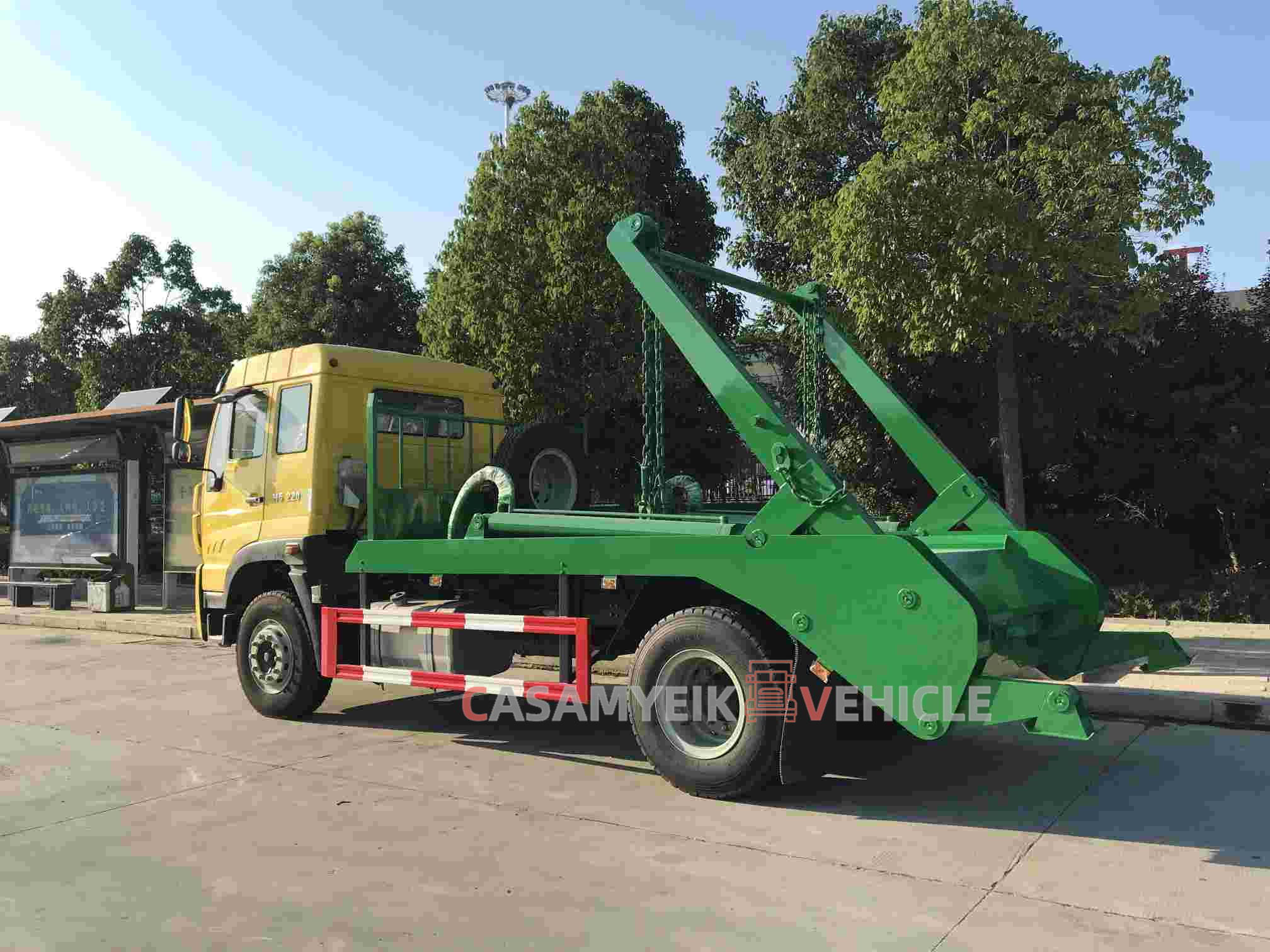

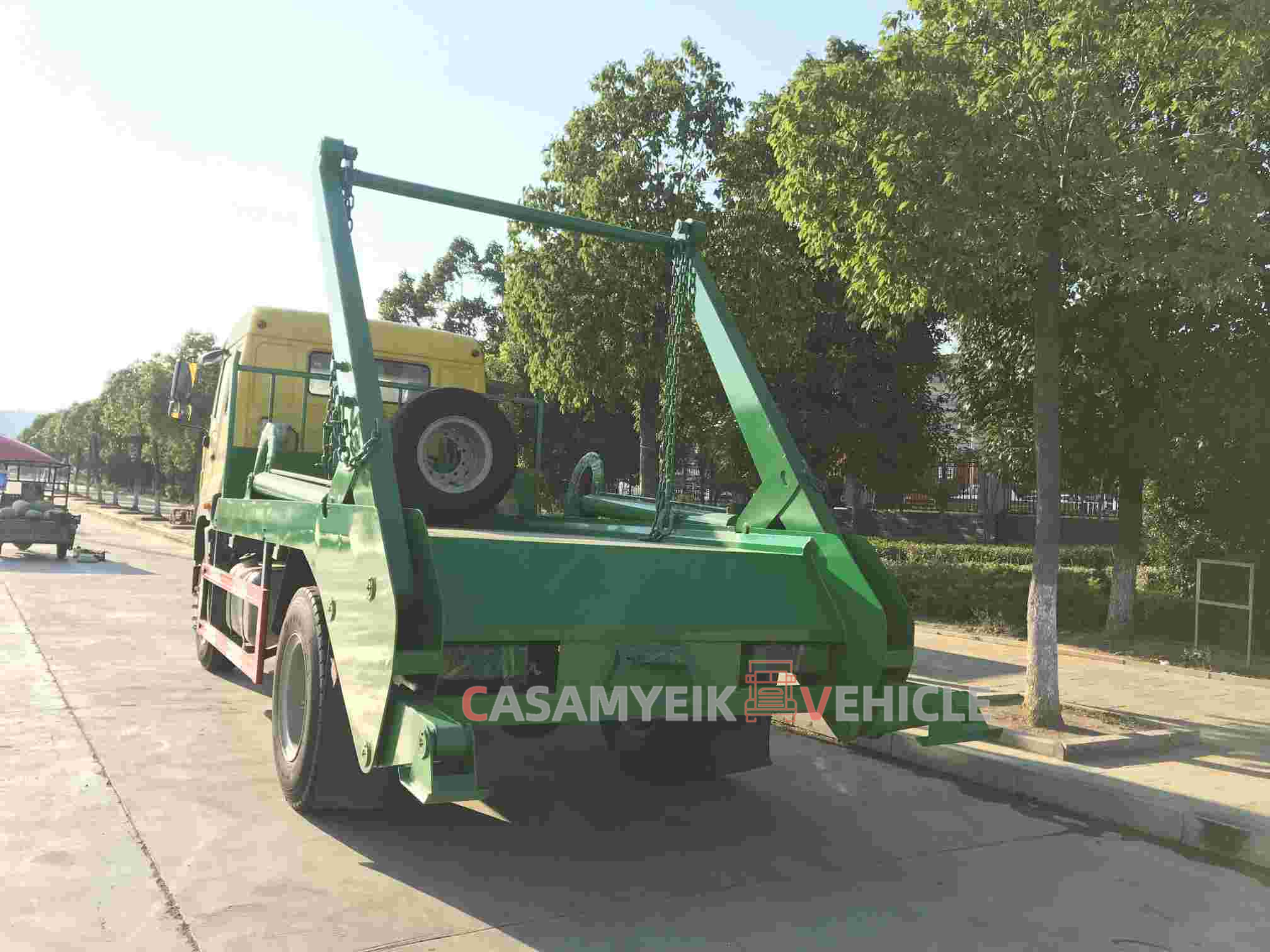

FOTON/HOWO/DONGFENG chassis matchable.
Key words:garbage truck/garbage collection/arm roll/roll off/truck skip loader/garbage bin
Vehicle model |
CSM5150BB |
|
Chassis |
FOTON EST-M |
|
Drive type |
LHD/RHD |
|
Cabin |
EST-M |
|
Dimensions date |
Wheel base(mm) |
4800 , 5150 |
Engine |
Model |
YC6A240-33,ISB220 40,ISD245 50 |
Emissions standards |
Euro 3,4,5 |
|
Rated Power(kw/rpm) |
177,162,180 |
|
Horse power(hp) |
240 |
|
Fuel type |
Diesel |
|
Gearbox |
Model |
8JS105TA,8JS118TA-B |
Front axle |
Loading weight |
5.5T |
Rear axle |
Loading weight |
10T |
Wheels and tyre size |
6+1(11R22.5,295/80R22.5) |
|
Upper structure Specification |
||
Garbage Hopper |
Standard Configuration |
With one garbage bin, with hydraulic rear outrigger |
Volume Capacity |
10 cbm |
|
Thickness |
5mm, Carbon Steel Q235B |
|
Dump type |
Hydraulic cylinder lifting and self-loading |
|
Dump angle |
≥45° |
|
Hydraulic system pressure |
≤16Mpa |
|
Protective Material |
Q235A Carbon Steel |
|
Controlling Way |
Three-way hydraulic control valve |
|
Other Configuration |
1. Reinforced hydraulic swept-body system, with Double hydraulic cylinder |
|
2. Swing Arm, Chain. |
||
3. Hydraulic multi-way valve control. |
||
Options |
Electronically controlled valve, trash bin type, trash bin quantity, etc. |
