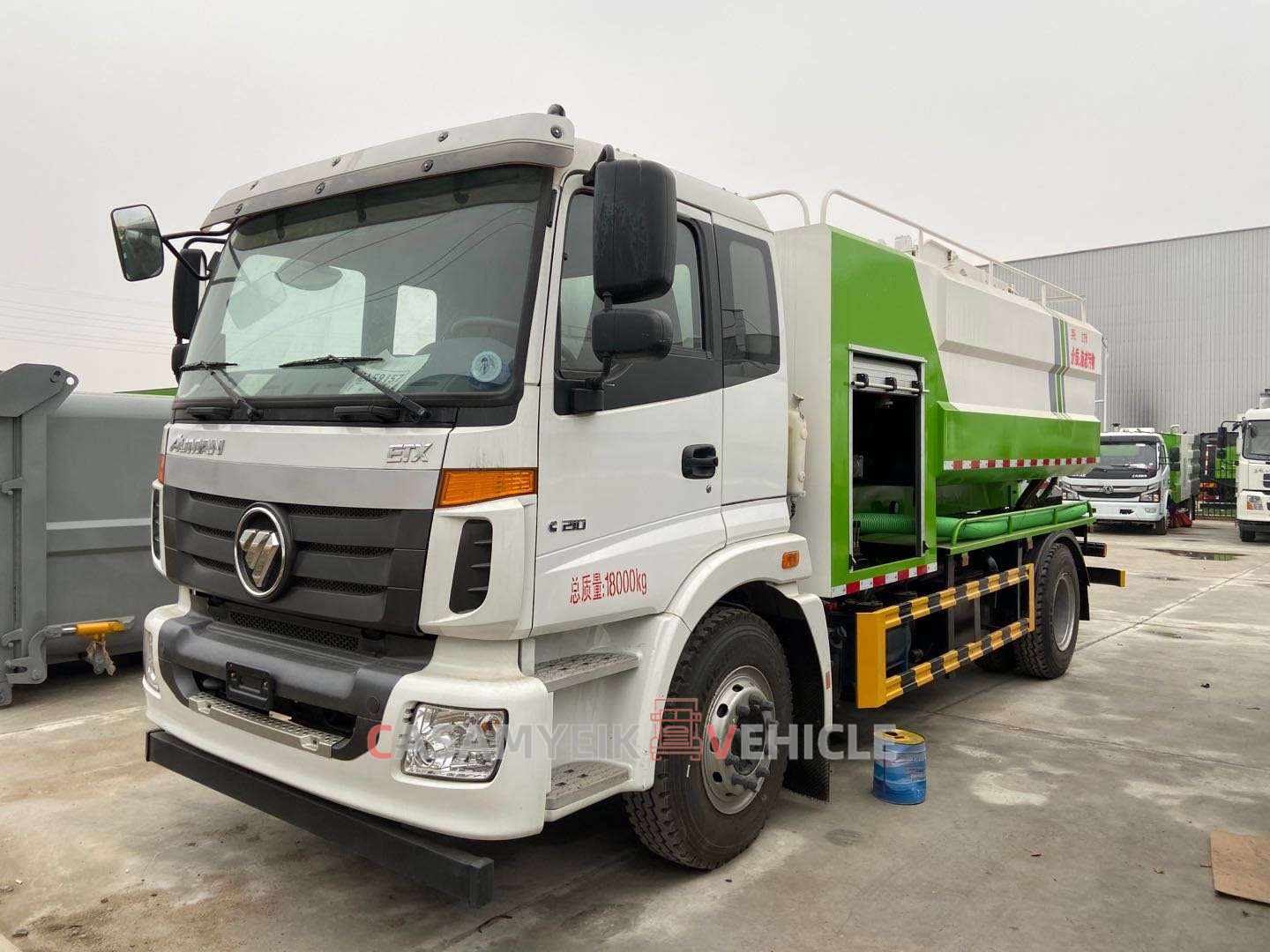

Sweage Suction Truck-FOTON

Vehicle model

Auman

Cabin

AUMAN-ETX-4x2

Whole vehicle main dimensions

Overall dimensions (LxWxH)mm

7500×2230×3250

Wheel base(mm)

4500

Weight data

Curb weight(kg)

3980

Gross vehicle weight（kg）

6495

Persons in cab

3

Whole vehicle main performance

Max. speed（km/h）

95

ENGINE

Model

WP10.270E32

Emissions standards

EuroⅢ

Horse Power（Hp）

270

Rated Power（kw/rpm）

170

Gearbox

Model

RTD11509C,9JS119,9JSD150T-B

Brake system

Service brake

Drum pneumatic braking

Parking brake

Central drum brake

Auxiliary brake

Engine exhaust brake

Wheels and tyre size

6+1(12.00-R20)

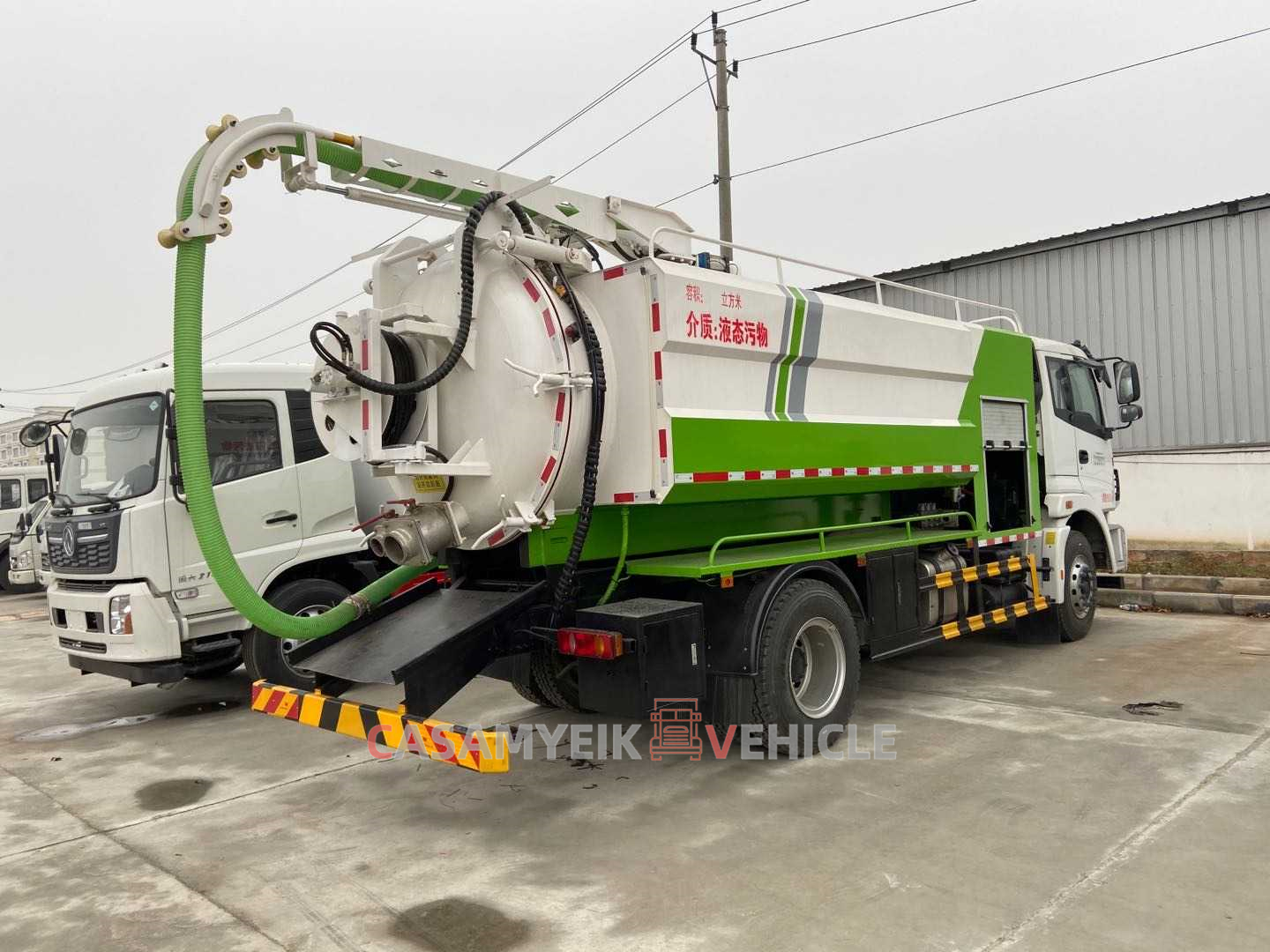

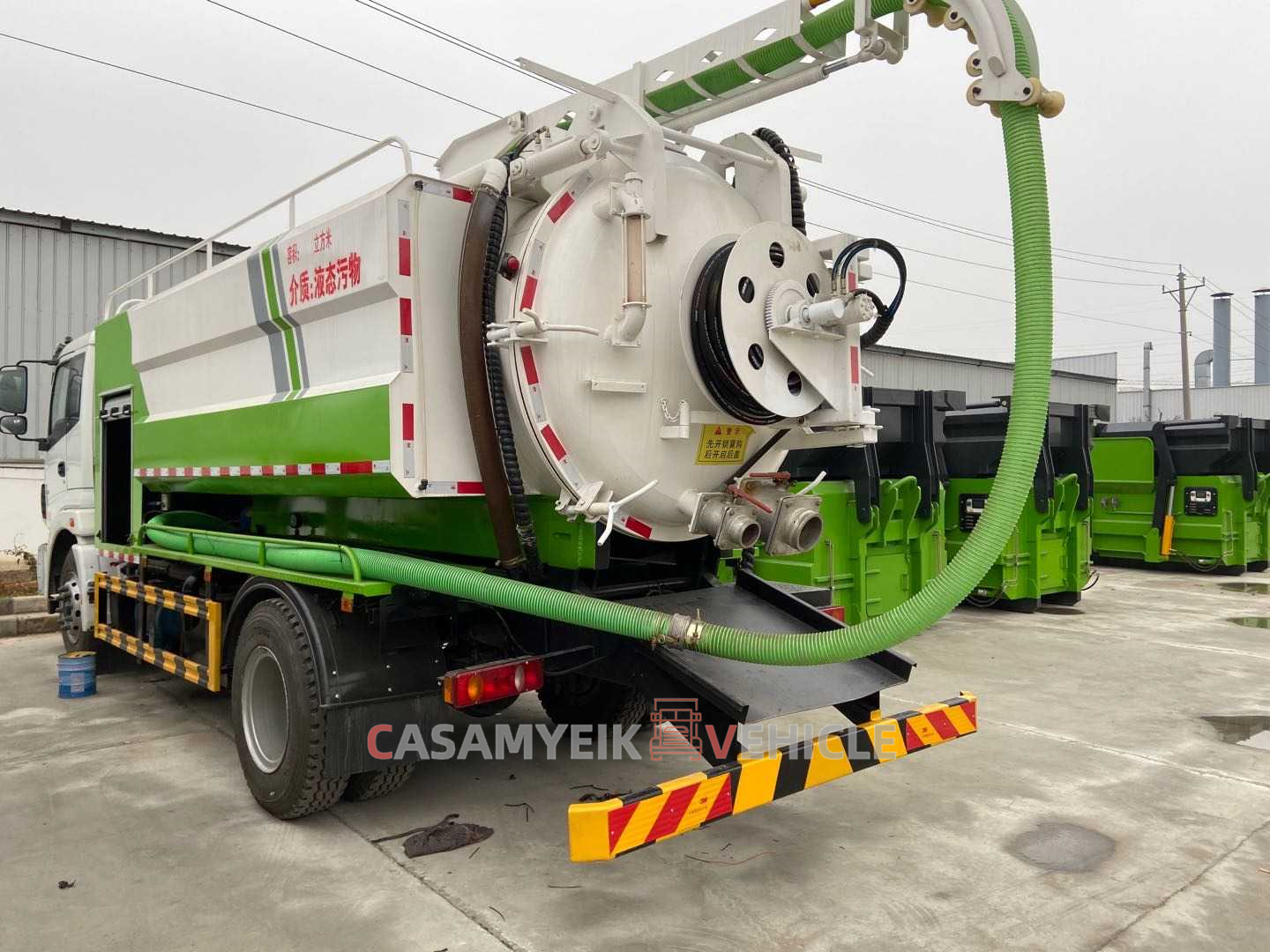

Sewage Suction and jetting System

Sewage Tanker

Capacity

10 cubic meters (10000 litters)

Material

High tension steel, 5mm Tank body and End Plate,

Water tanker

Capacity

2 cubic meters(2000 Litters), in front of the sludge tank.

Material

High tension steel, 5mm Tank body and End Plate,

Dumping System

Middle Tipper

Hydraulic Controlled Rear Door and Middle lifting.

Rear Door

Hydraulic controlled with sewage drain pipe

Vacuum Pump

High Efficiency China brand SK-12 Model,Water circulation vacuum pump air flow capacity : 12000 litters/min, Vacuum rating max:  93%, max speed : 970 rpm.

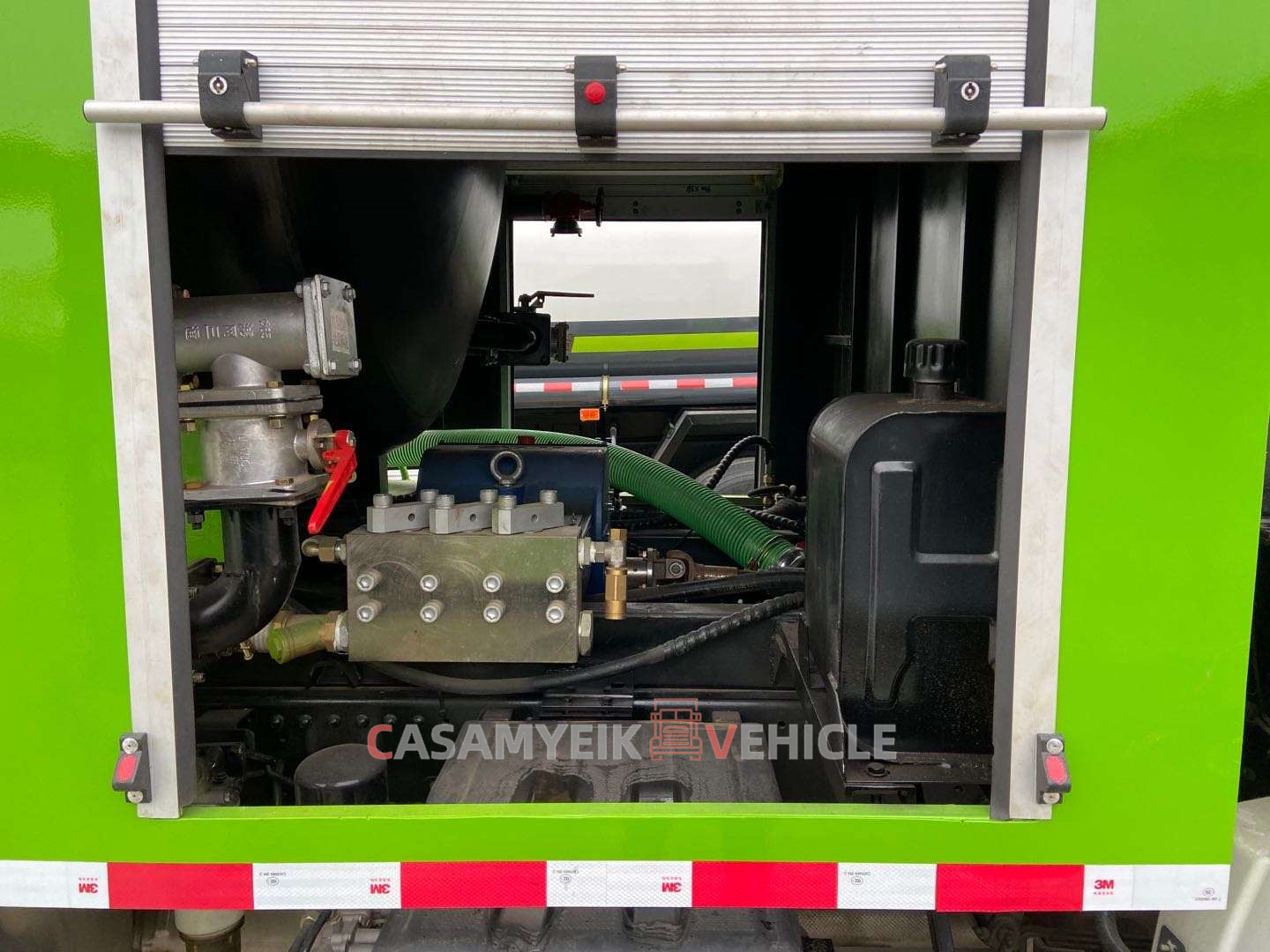

Water pressure pump

Italy PINFL Brand 215 high pressure pump, Flow rate: Max: 215littles/min; Max 130-200 bar water pressure.

Other Parts

 Water-gas separator,  Oil-gas separator,  Four way valve,  Safety valve,  Anti overflow valve,  Anti overflow warning device

Other specification required from buyer.

Steel fabricated hose box mounted on side of the tank;

high pressure suction hose:3’’x10 meters long.

Two lengths of 3’’x10 meters long suction hose;

One set of 10 pcs of jetting nozzle with different angle.

One length of tiger tail hose suitable for 1’’ jetting hose. 60 meters.
