1, FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis matchable
Key words:sweage truck/sweage pump truck/sweage tanker/sweage suction machine/vacuum truck/septic tank truck/vacuum pump truck/vacuum tanker truck
Cabin |
Left rudder/half row |
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
8255×2460×2820 |
Wheel base(mm) |
4800 |
|
Weight data |
Curb weight(kg) |
5440 |
Gross vehicle weight(kg) |
22000 |
|
Persons in cab (persons) |
2 |
|
Engine |
Model |
YC6A240-33 |
Emissions standards |
Euro III |
|
Displacement(L) |
7.255L |
|
Rated Power |
177 |
|
Max torque |
900 |
|
Gearbox |
Model |
8JS105TA |
Clutch |
Type |
Single dry diaphragm spring |
Front axle |
Type |
5.5.T |
Rear axle |
Type/Mainreducetion ratio |
10T/4.875 |
Suspension |
Front suspension/Leaf spring number |
Non-independent suspension longitudinal plate spring /10 |
Rear suspension/Leaf spring number |
Non-independent suspension longitudinal plate spring /10+8 |
|
Brake system |
Service brake |
Drum-type pneumatic brake |
Parking brake |
Barely able to brake |
|
Basic equipment |
Hydraulic Turnover/Cruise + 135A.H Battery/Manual Air Conditioners/Tuberless Tire (Inch) 11R22.5/ Manual Doors, Windows and Rearview Mirrors /MP3 / Power Steering/Knit Shock Absorber Seat (Spring) |
Sewage Suction and jetting System |
||
Sewage Tanker |
Capacity |
10 cubic meters (10000 litters) |
Material |
High tension steel, 5mm Tank body and End Plate, |
|
Water tanker |
Capacity |
2 cubic meters(2000 Litters), in front of the sludge tank. |
Material |
High tension steel, 5mm Tank body and End Plate, |
|
Dumping System |
Middle Tipper |
Hydraulic Controlled Rear Door and Middle lifting. |
Rear Door |
Hydraulic controlled with sewage drain pipe |
|
Vacuum Pump |
High Efficiency China brand SK-12 Model,Water circulation vacuum pump air flow capacity : 12000 litters/min, Vacuum rating max: 93%, max speed : 970 rpm. |
|
Water pressure pump |
Italy PINFL Brand 215 high pressure pump, Flow rate: Max: 215littles/min; Max 130-200 bar water pressure. |
|
Other Parts |
Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device |
|
Other specification required from buyer. |

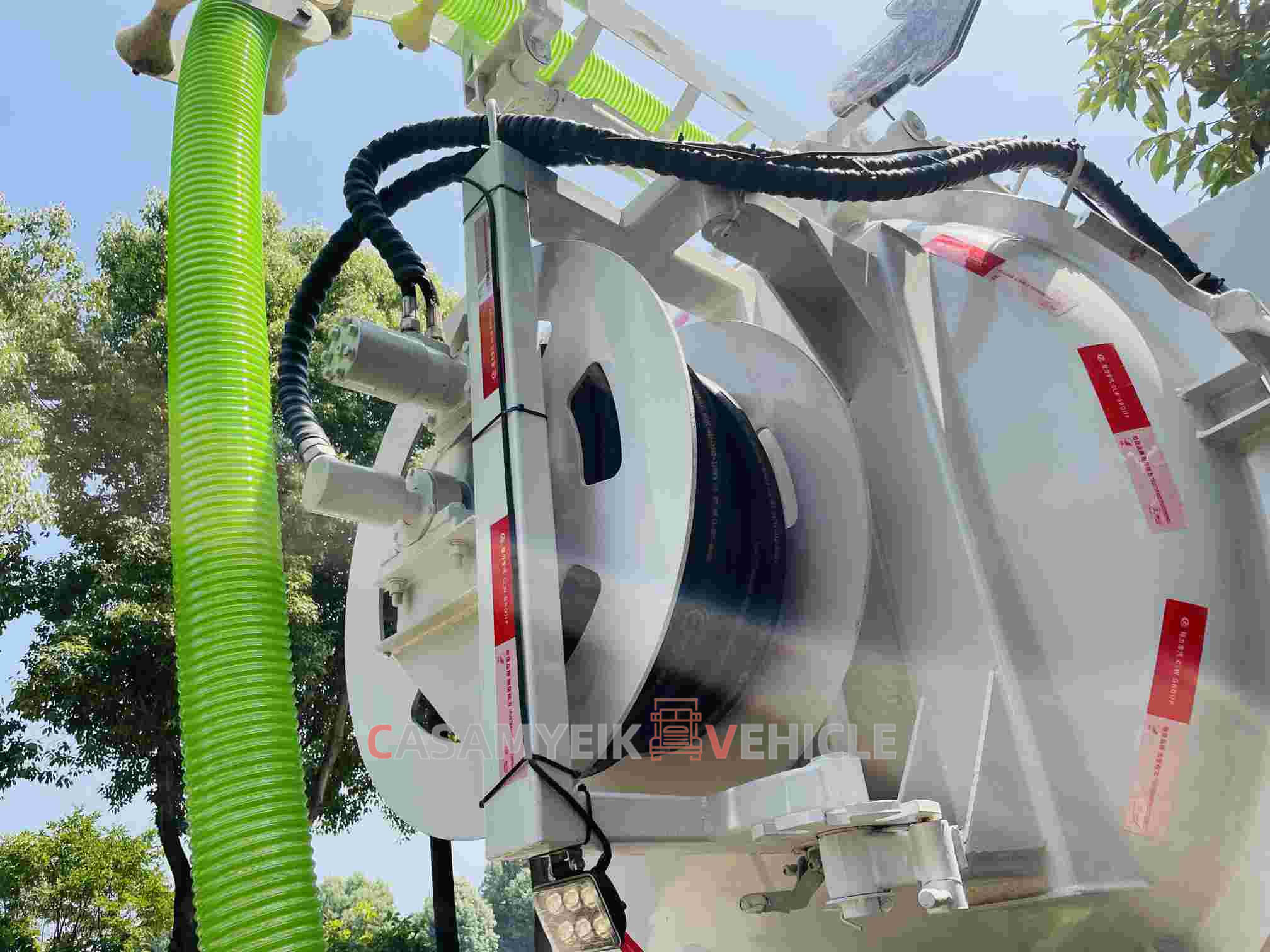

Steel fabricated hose box mounted on side of the tank; high pressure suction hose:3’’x10 meters long. Two lengths of 3’’x10 meters long suction hose; One set of 10 pcs of jetting nozzle with different angle. One length of tiger tail hose suitable for 1’’ jetting hose. 60 meters. |
