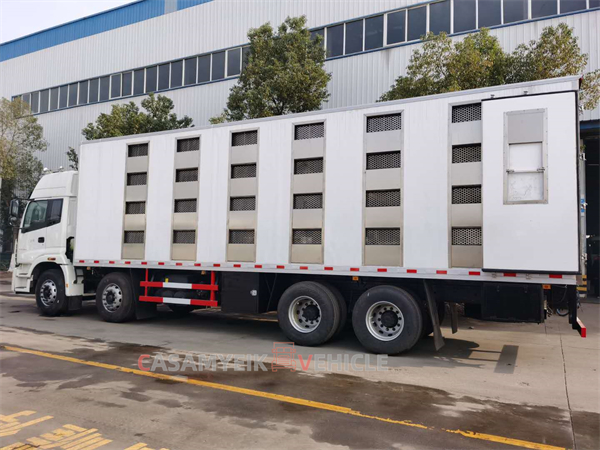

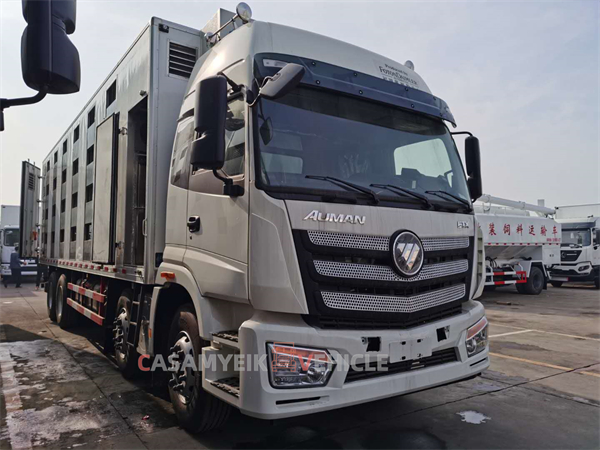

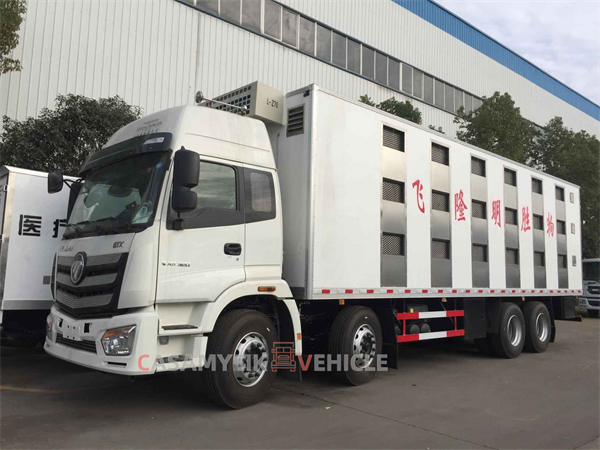

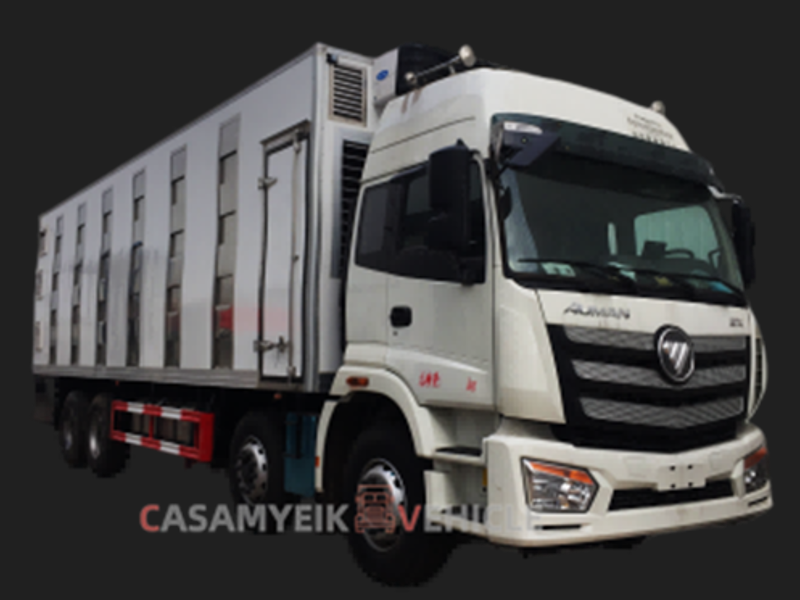

Refrigerated Truck-Livestock/Paultry Transport

Vehicle model

AUMAN-8X4

Drive type

LHD

Cabin

half row

Dimensions date

Wheel base(mm)

1800+4700+1350

Engine

Model

WP10.340E32,ISGe4-330

Emissions standards

Euro 3 ,4 ,5

Rated Power（kw/rpm）

250,243

Horse power(hp)

340/ 330

Fuel type

Diesel

Gearbox

Model

12JSD160TA,10JSD180T

Front axle

Loading weight

7.5T*2

Rear axle

Loading weight

13T*2

Wheels and tyre size

12+1(12.00-R20)

Body

Loading Medium

Livestock and poultry

Loading Capacity

25 tons

Dimension

9600*2250*2500 mm

Material

Aluminum

Thickness:4mm

Layer height per floor

815/815/865 mm

Rust Resistance

Anticorrosive paint

Color

As your request

Logo

As your request

Driving form

Electrical and hydraulic driving

Layers

3 floors

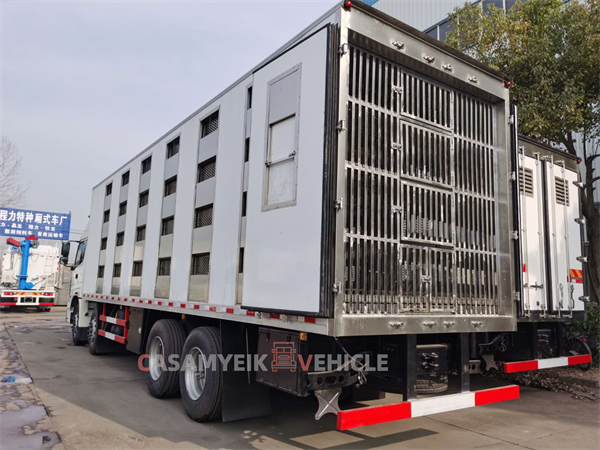

Door

Rear doors

Standard Configuration

The tank is designed with a fully enclosed structural frame, made of all-aluminum alloy profiles, with light weight, high strength and strong rust resistance.

The roof is equipped with an advanced umbrella top design that can be lifted up and down to facilitate temperature control during top loading, unloading, cleaning and disinfection.

The professional equipment imported from Dutch technology, adopts the tail lifting loading and unloading method, the internal double channel, can be turned up, easy to handle, clean and disinfect

Sliding windows are designed on both sides of the vehicle body for emergency use in high temperature and extreme weather.

Area(m2)

76(contain SPF and heater)/81(contain heater)/88

Number of compartments

12

Voltage(V)

24

Spray tank volume(L)

390

Layer height per floor (mm)

2 floors 1212/1315;

4 floors 590/620/620/635

Number of front fans(pc)/Air volume(m3/h)/pc

8/2730

Number of rear fans(pc)/Air volume(m3/h)/pc

8/1300

High Configuration

Flanged without partition MERV 15 filter system

Prevent infection of bacteria during transport of pigs

Number of fuel heaters(pc)/power(kW)/air volume(m3/h)

3/7/230

Water system or spray system can be installed on each floor
