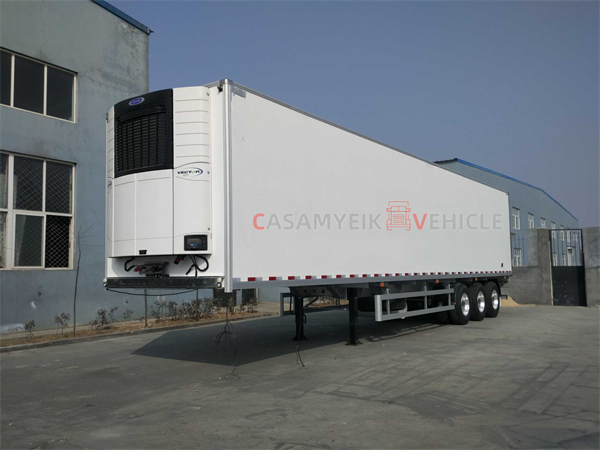

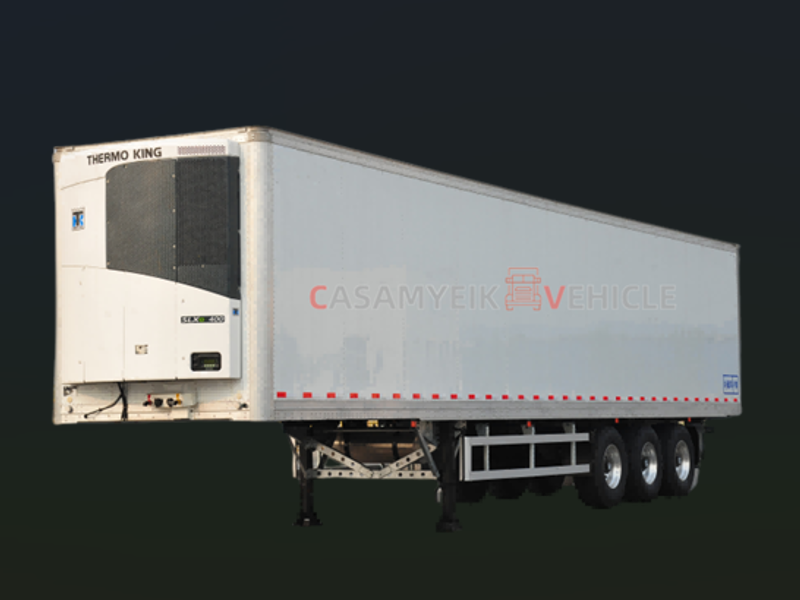

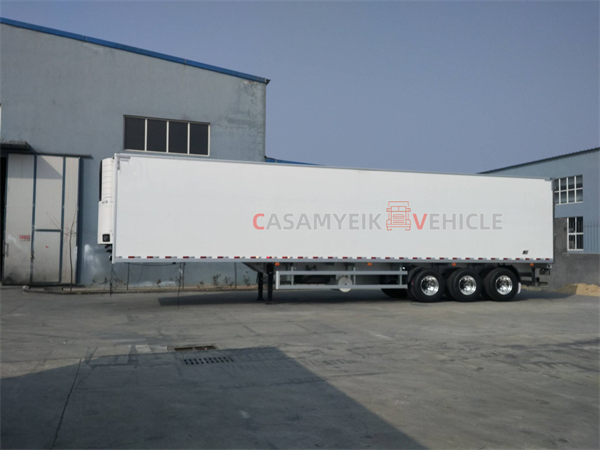

Refrigerated Trailer

ITEM

UNIT

PARAMETER

Type

3Axles Reefer van semi trailer

Overall dimensions

mm

14600*2550*4000

GVW

kg

Appro×39980

Mass in working order

Appro×8730

Loading capacity

Appro×31250

Approach/departure angle

°

--/12

Wheelbase

mm

7880+1310+1310

Front/Rear hanging

-- /   2600

Front/Rear tread

-- /2040

Axle load

kg

-- / 24000   (three axles concatenation)

Tire specification

11.00R20

No. of axles

3

Delivery time

About 20working days

Warranty

12 month,from the date of supply

Standard configuration

13T FUWA axle, 8pcs steel wire tire.

Compartment thickness : 8mm, heat preservation performance meet the National Grade A standard.

Door case and door decoration, use stainless steel.

American   or Korea imported famous brand refrigeration unit.

Selective configuration

 One side or two sides open the door (the following price is not including this item

Van configuration

1) Equipped with America CARRIER brand independent refrigeration unit,keep the refrigerated body -18ºC .
2) Refrigerated body inner and outer material are FRP(fiber reinforced plastic).
3) Single side open door.
4) Inner aluminum alloy rail paving.
5) Inner wall with anti-collision strip.
6) Tail double open doors.
7) Protective material: Q235A carbon steel.
8) Connection method: the left and right sides and the lower part of the protection are welded.
9) Rear protection height from ground 450mm.
