LPG truck-5T

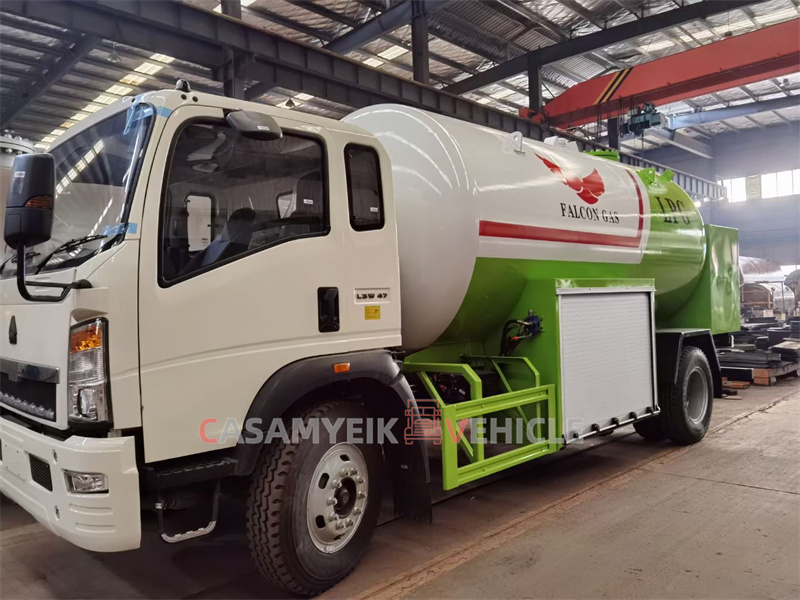

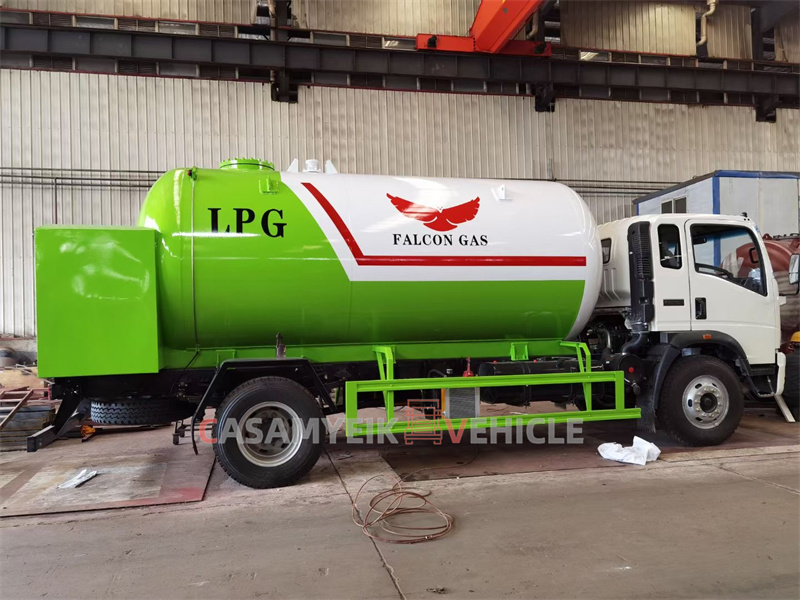

Sinotruk 5T LPG TRUCK

Overall Dimension:7600*2462*2950mm,

GVW:11000 Kg, Wheelbase:4500mm,

Engine：YC4E140-33,Euro 3, 140HP.

6 Forward Gear & 1 Reverse Gear

8.25R20 (6 Pieces with 1 Spare),

Tank Capacity:10cbm/ 5Tons,

Q345R Pressure Vessel Steel,

10mm Thick Tank Body.

Designed Pressure: 1.61Mpa / 16.1 Bar

Liquid Line & Vapor Line 2" Diameter with Flange Connection

1 Safety Valve,1 Rotor Level Gauge,1 Pressure Gauge,1 Thermometer, 2 Emergency Shut-off Valve,1 Tool Boxes

Anti-static Grounding Tape, with 1 valve box, 2" Hydraulic Drive LPG Vane Pump for Discharging, 1Filling hose with Rego brand nozzle to refill small tank.
