LPG truck-10T

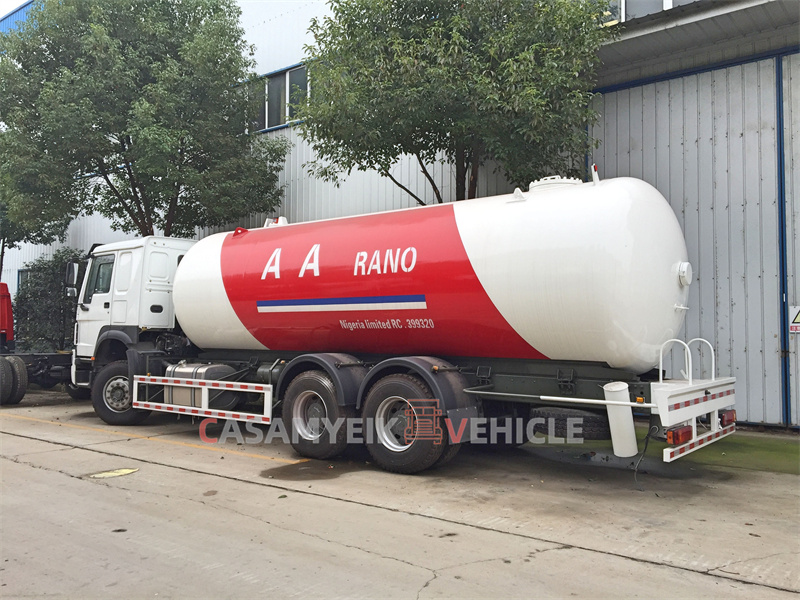

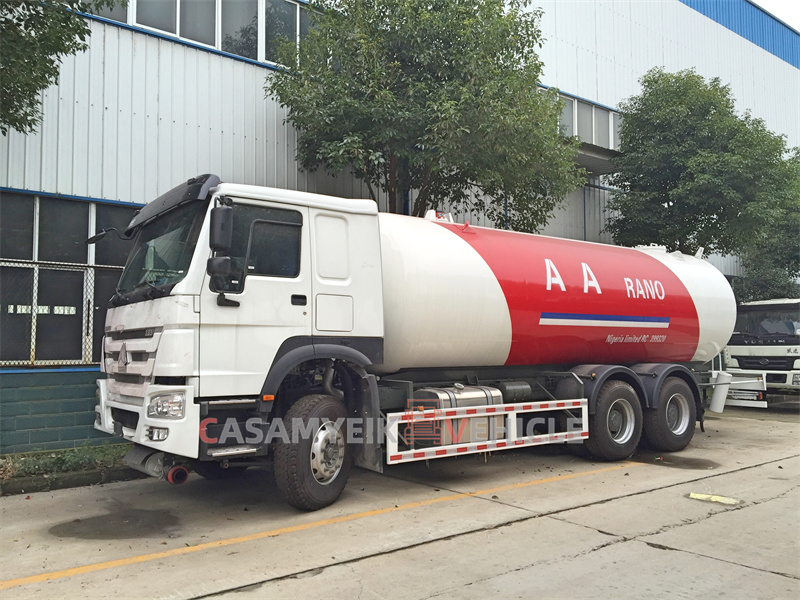

Sinotruk 10T LPG TRUCK

Overall Dimension9109*2480*3420 mm

GVW:25000Kg, Sinotruk Cabin

Weichai WD615.69,336HP, 12.00R20

Tank Capacity:20cbm/ 10Tons

Q345R Pressure Vessel Steel

12mm Thick Tank Body

Designed Pressure: 1.61Mpa / 16.1 Bar

Liquid Line & Vapor Line 2" Diameter with Flange Connection

1 Safety Valve,1 Rotor Level Gauge, 1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve box, 2" Hydraulic Drive LPG Vane Pump for Discharging, 1Filling hose with Rego brand nozzle to refill small tank.
