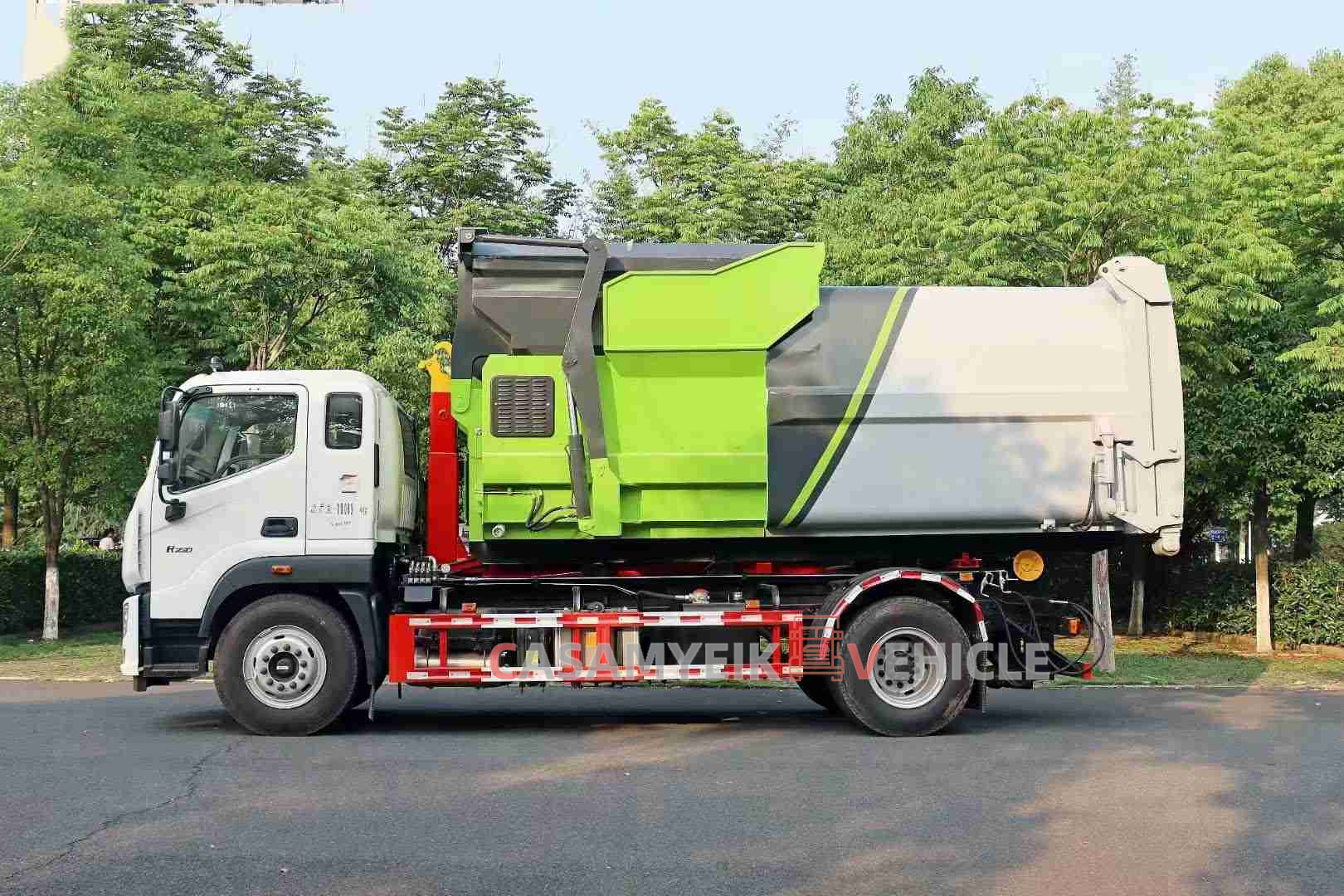

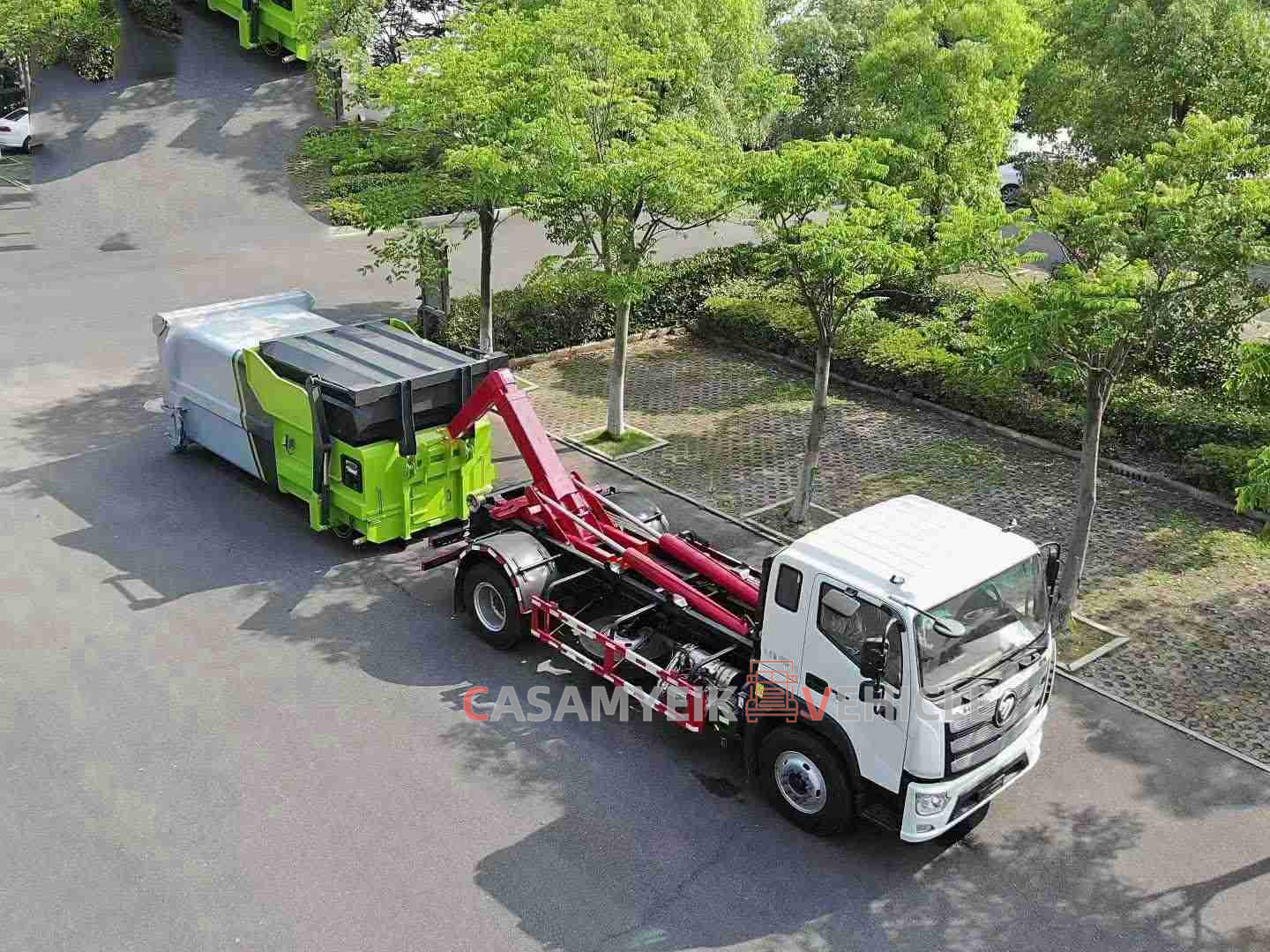

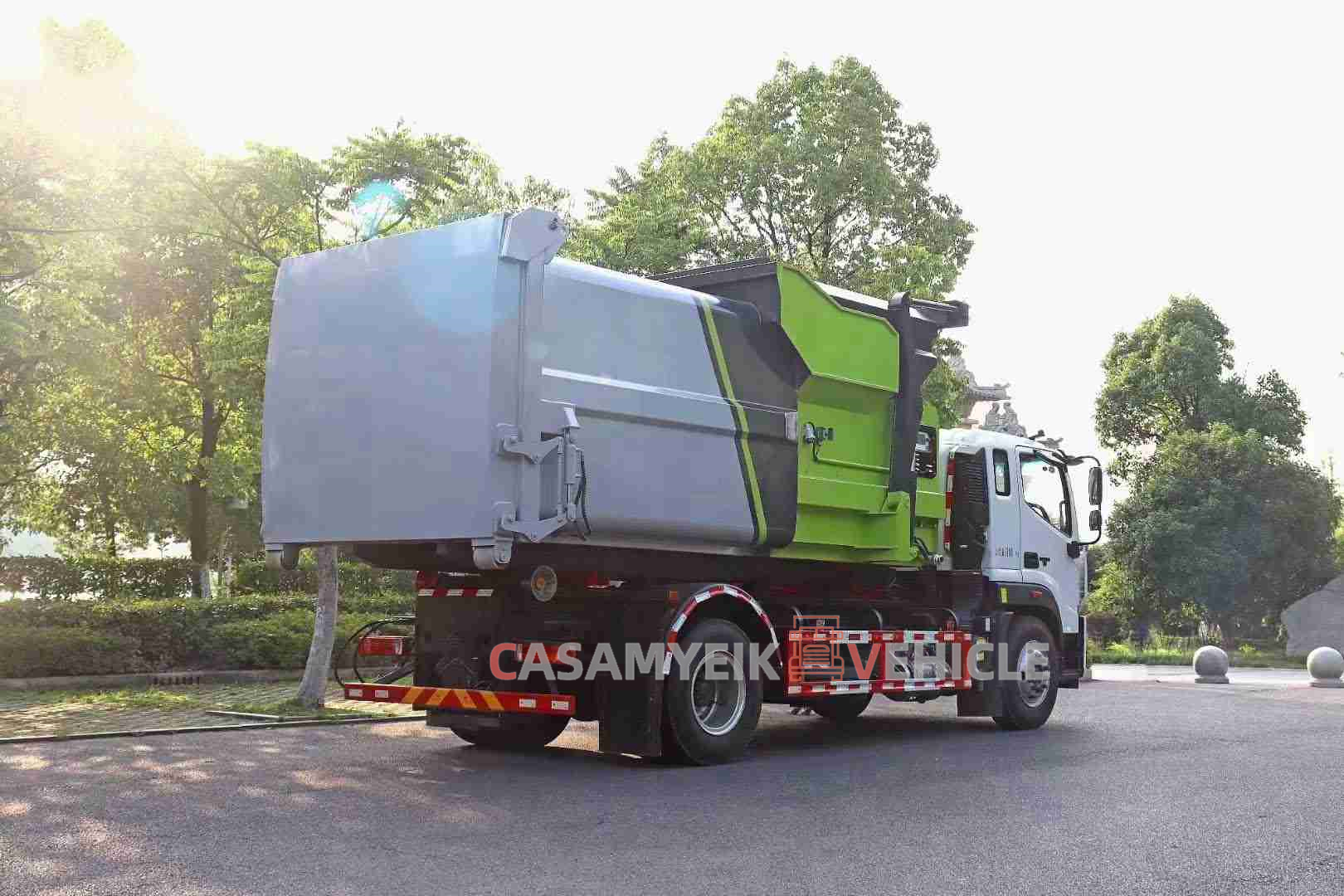

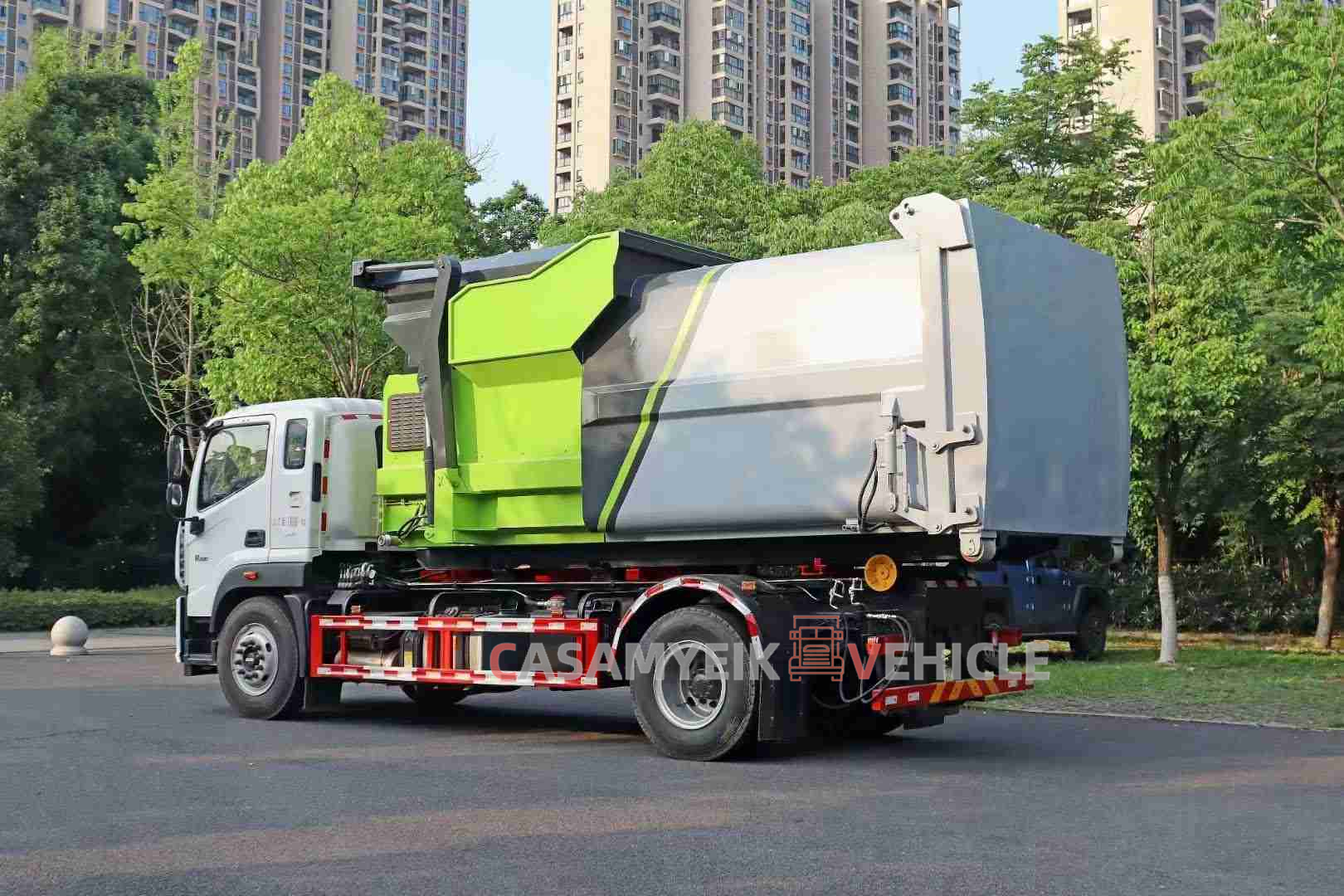

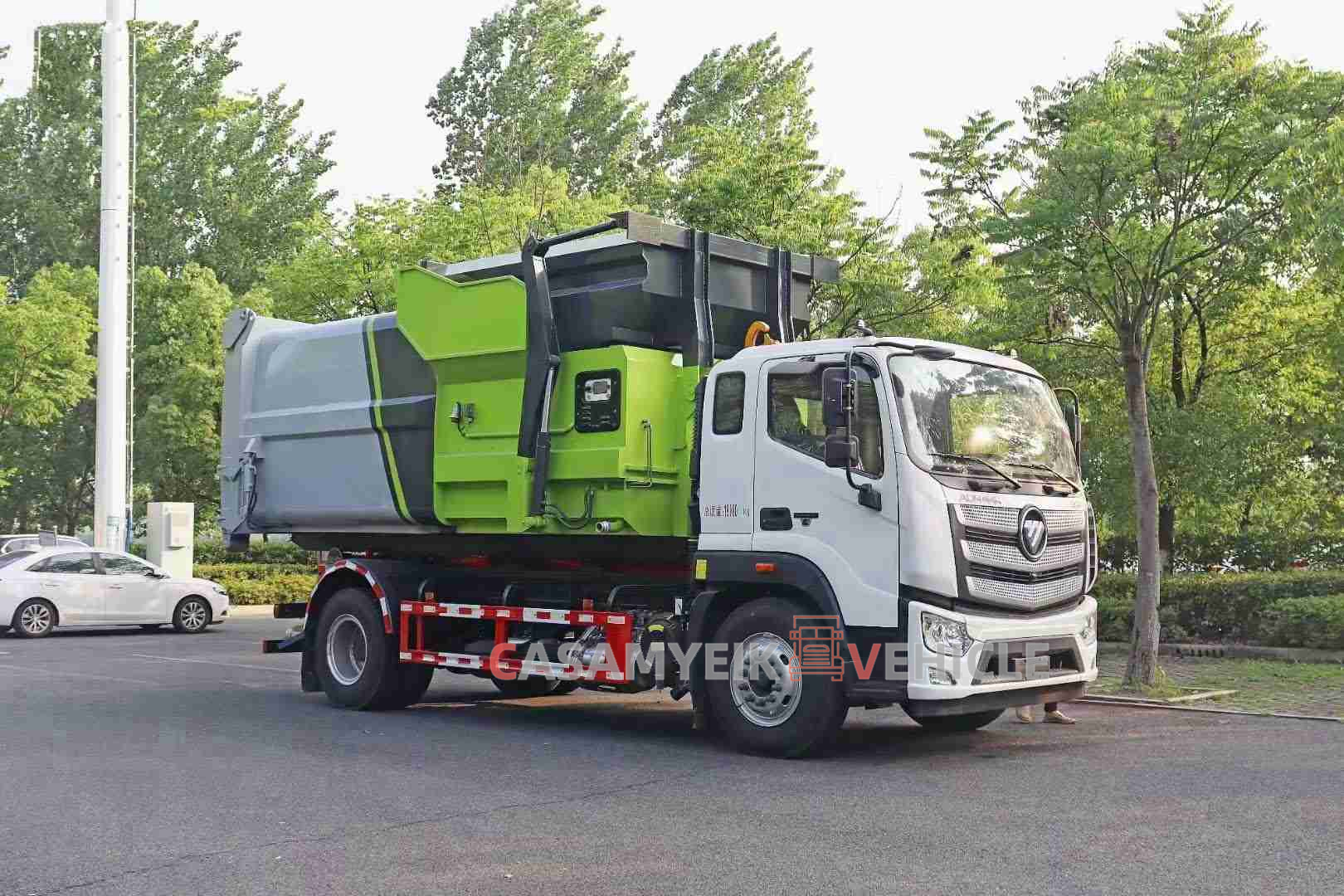

Hook Lift Garbage Truck-FOTON

Vehicle model

CSM5150GB

Chassis brand

FOTON-EST

Drive type

LHD/RHD

Dimensions date

Wheel base(mm)

4800 , 5150

Engine

Model

YC6A240-33,ISB220 40,ISD245 50

Emissions standards

Euro 3,4,5

Rated Power（kw/rpm）

177,162,180

Horse power(hp)

240

Fuel type

Diesel

Gearbox

Model

8JS105TA,8JS118TA-B

Front axle

Loading weight

5.5.T

Rear axle

Loading weight

10T/4.875

Wheels and tyre size

6+1(11R22.5,295/80R22.5)

Hook arm garbage truck structure parameters

Garbage container dimensions

4000x2200x1300mm

Garbage container volume

10 m3/10Tons

Garbage container material

Carbon steel

Side wall

3mm

Bottom plate

4mm

Color and Logo

Optional

Standard configuration

Chassis,sub frame,two balancing valves, two domestic oil cylinders,web plate,one garbage container,rear hydraulic legs,unloading container locking pins.

Selective configuration

Garbage container cover.

Tipping Angle (°)

50

Hydraulic Pressure (MPa)

30

Loading Time (s)

≤60

Unloading Time (s)

≤72

Unloading Cycle Time (s)

≤110
