1,FOTON/HOWO/DONGFENG and other brand chassis matachable.
Key words:rear loader garbage truck/garbage truck packer/roll off /container garbage/garbage collector/recycling/hoist

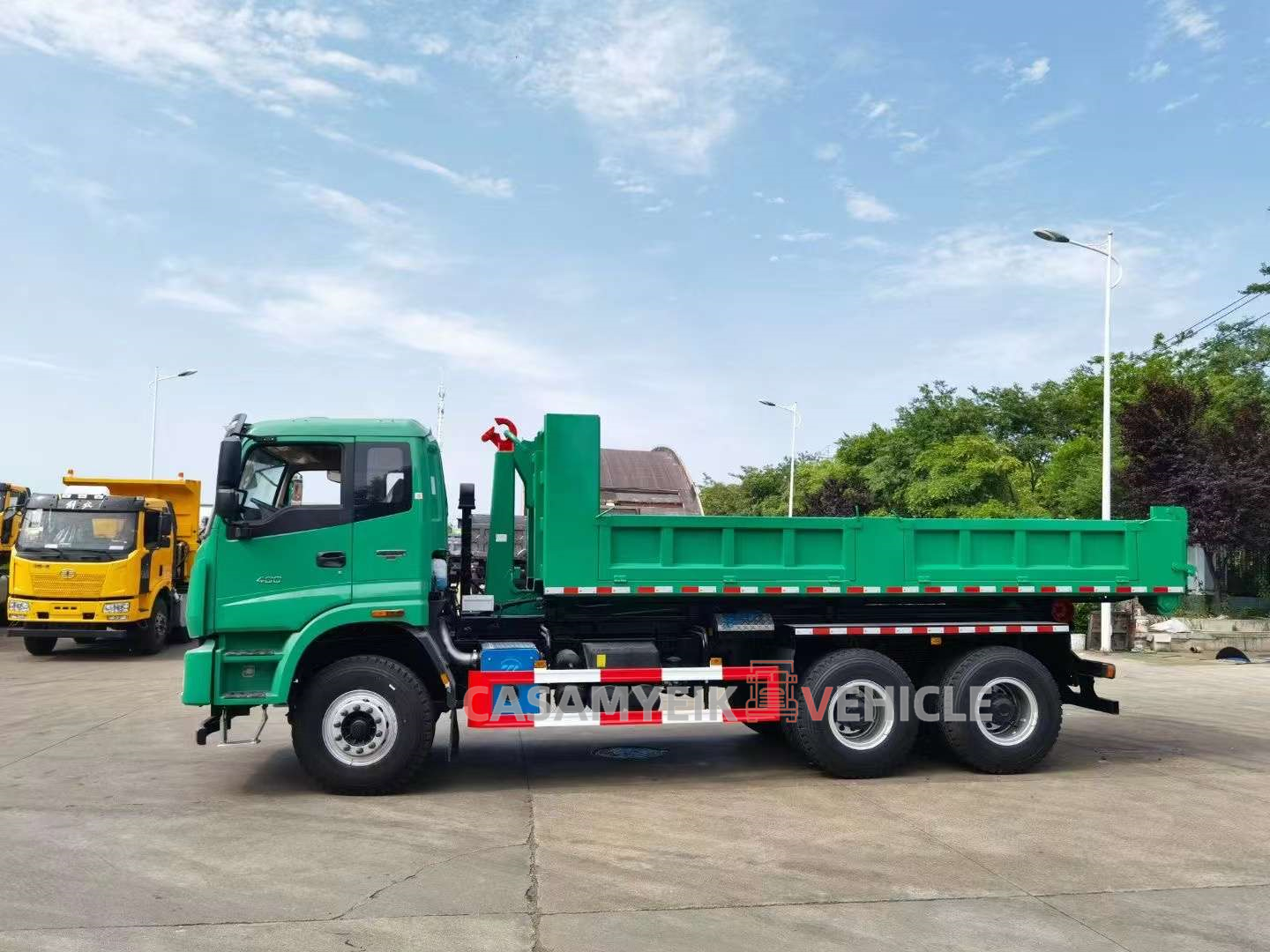

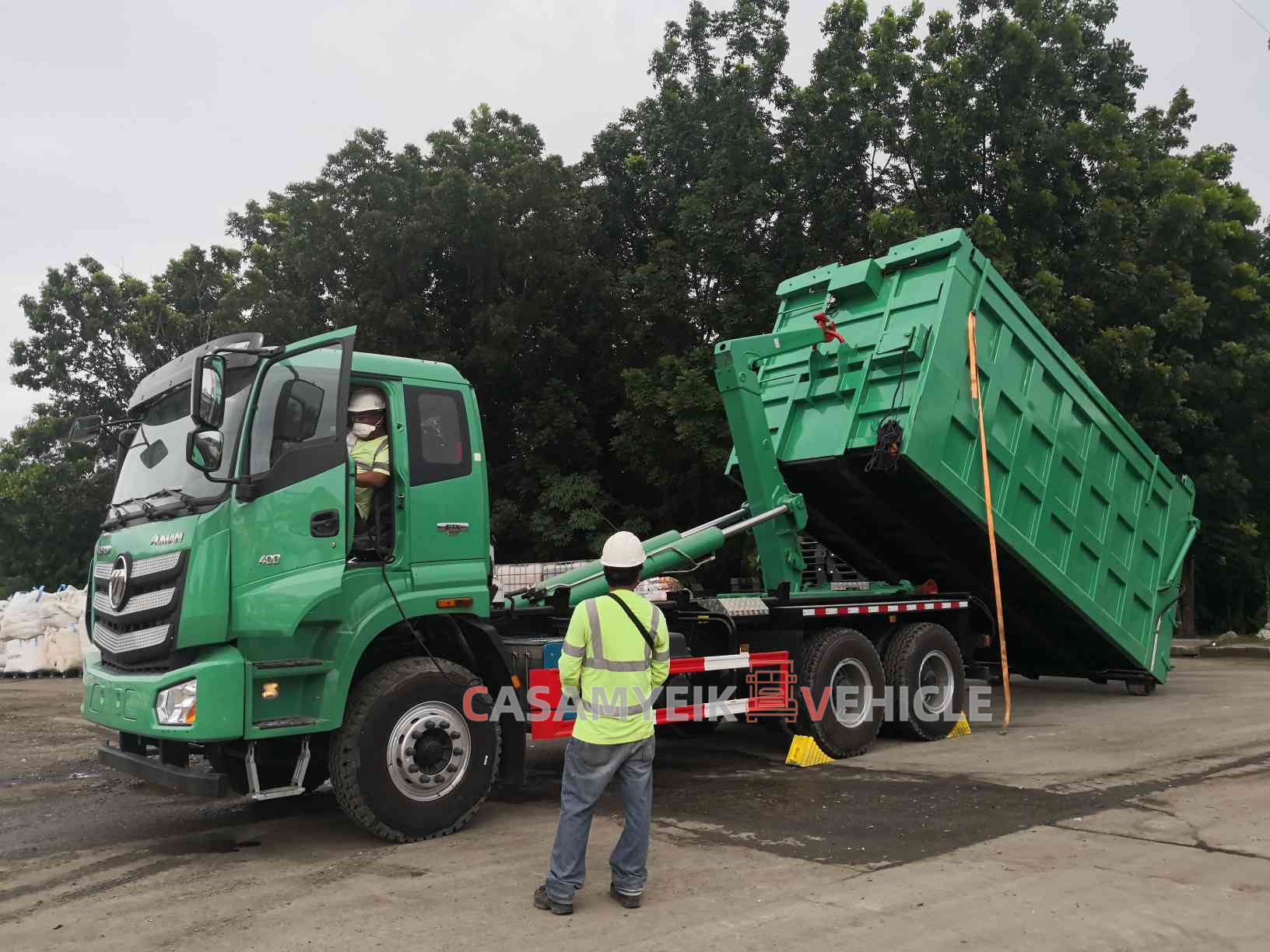

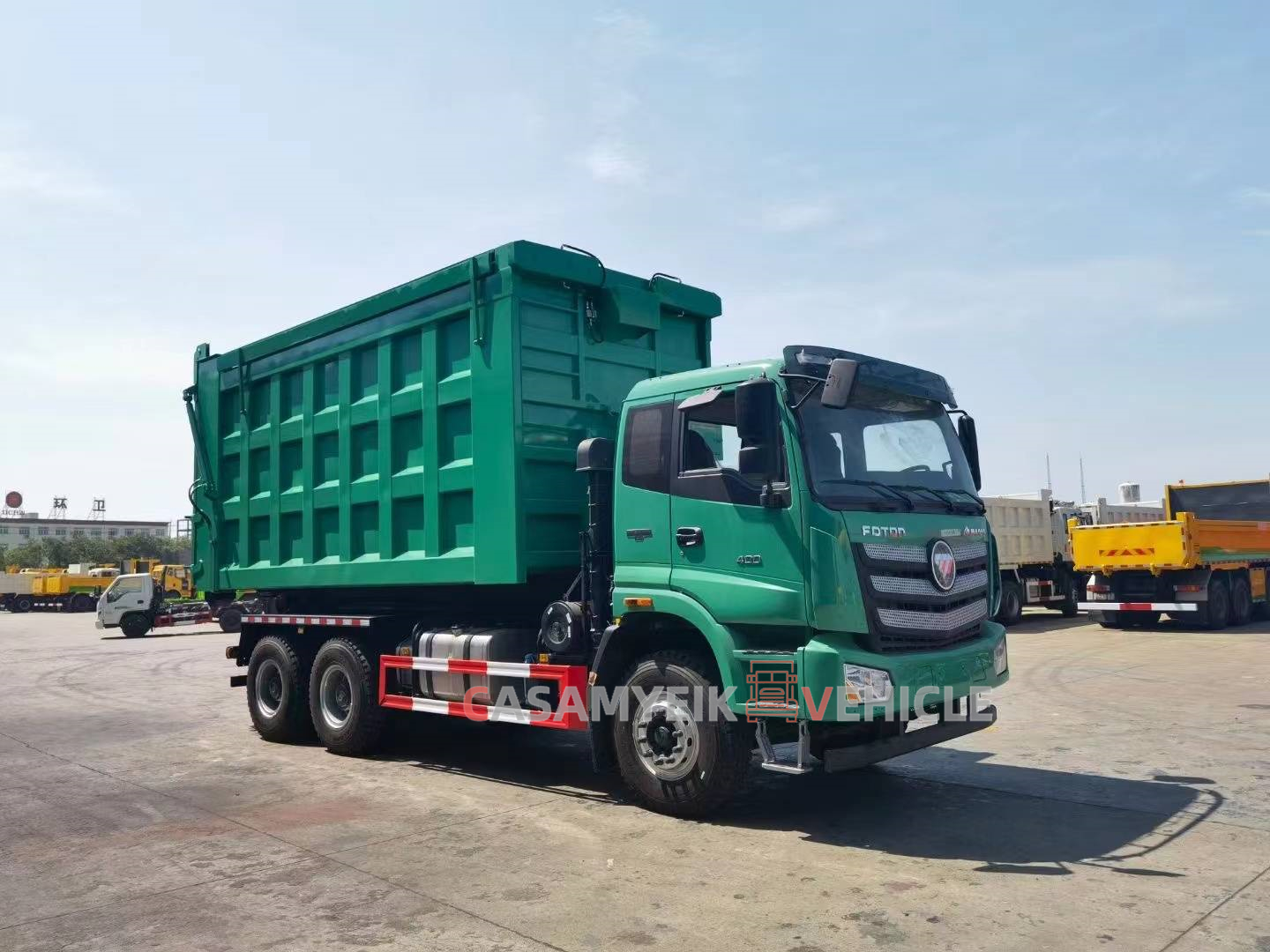

24 cbm upper part of hook arm Garbage truck |
|
Loading Capacity(Garbage) |
24 CBM |
Type |
Sliding type |
Operating pressure |
20-25 mpa (200-250 bar) |
Duping and loading time |
Approx. 40-50 Sec |
Tipping angle |
50°+/- 5° hydraulic pump |
Type |
Piston type |
Max. Pressure |
250 Bar |
Displacement |
2 L/min |
Placement of valve |
Front left corner of box |
Control method |
Hydraulic manual valve control on outside( Driver seat on air control type system) |
Garbage box dimension |
6000*2200*1800 mm |
Thickness of the |
Side 4mm,bottom 5mm, carbon steel |
Specification |
Equipped with good performance hook lifting main cylinders and structure. Hyva Brand. Multi-way valves; The garbage truck can equipped with several garbage truck; |
Equipment |
Equipped with hermetic dustbin, hydraulic system and operating system. Control system and operate system. |
Mark |

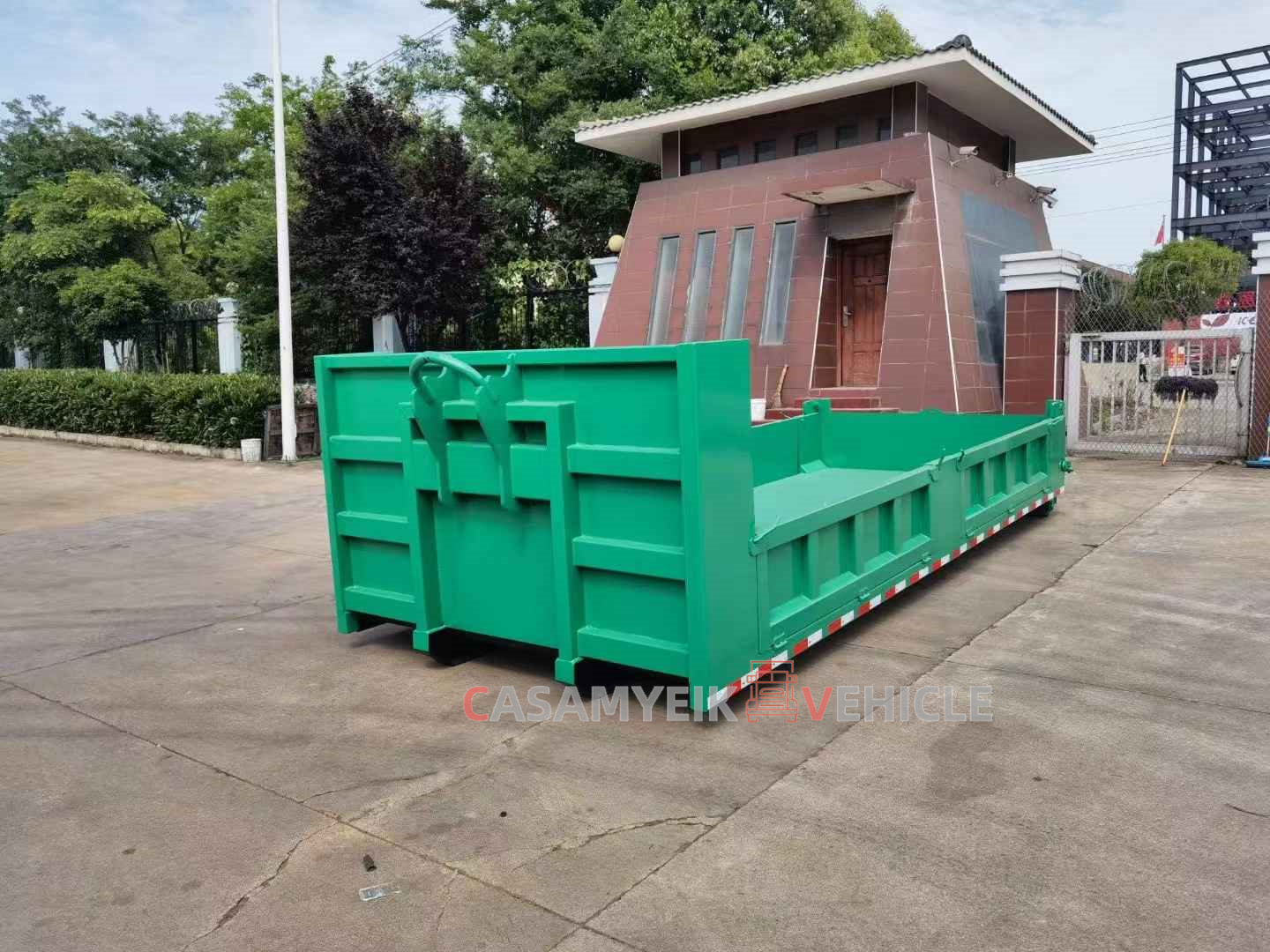

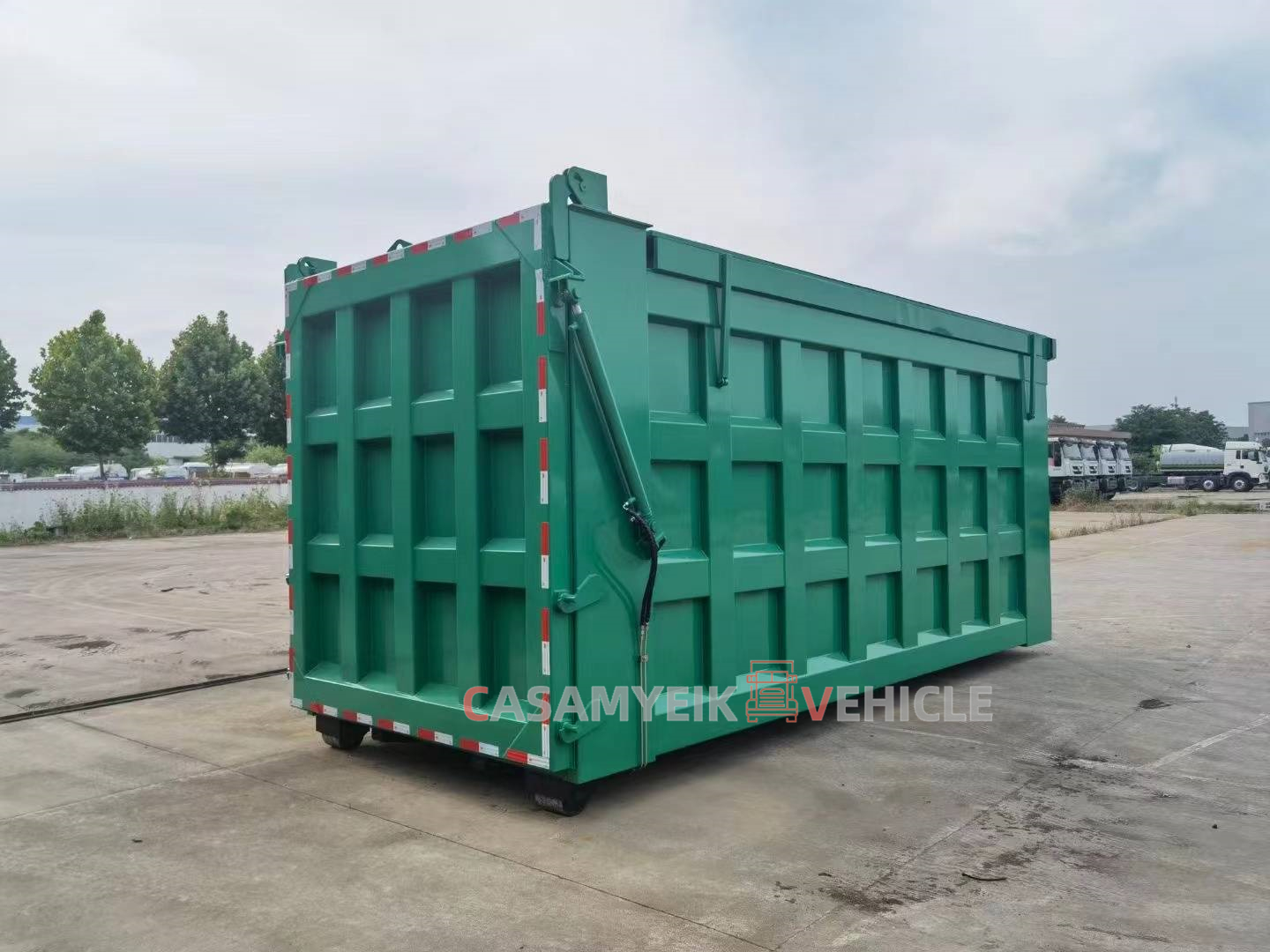

Each hook lift garbage truck are equipped with one garbage box as standard. Clients can choose as need. |
Vehicle model |
CSM5250GB |
|
Chassis |
AUMAN-ETS |
|
Drive type |
LHD/RHD |
|
Dimensions date |
Wheel base(mm) |
4500+1350,5700+1350 |
Engine |
Model |
WP10.270E32,WP10.340E32,WD615.50,WD615.34 |
Emissions standards |
Euro 3 ,4 ,5 |
|
Rated Power(kw/rpm) |
198,213,250 |
|
Horse power(hp) |
|
|
Fuel type |
Diesel |
|
Gearbox |
Model |
RTD11509C,9JS119,9JSD150T-B |
Front axle |
Loading weight |
7.5T |
Rear axle |
Loading weight |
13T*2 |
Wheels and tyre size |
10+1(12.00-R20) |
