1,FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis matchable
2,Dump volume can be customerized.
Key words:dump truck/tipper/side dump truck/hydraulic cylinder dump truck/dumper lorry
Parameters |
Overall dimension (mm) |
7335X2495X3730 |
Total Mass(Kg) |
25000 |
|
Curb Weight(Kg) |
9200 |
|
Allowable towing total mass(Kg) |
40000 |
|
Approach./Departure angle(°) |
33/64 |
|
F/R suspension(mm) |
1410/625 |
|
Max Speed(km/h) |
90 |
|
Engine |
Model |
WP10.375 |
Displacement(ml) |
9726 |
|
Emission level |
Euro 3 |
|
Max.power(kw/HP) |
276/375 |
|
Max.torque(N.m) |
1460@1200~1600RPM |
|
Description |
In-line, 6 cylinders,4 strokes,turbo charged, |
|
water cooled,inter cooled,direct injection, |
||
diesel engine |
||
Manufacturer |
Weichai Holding Group Co., Ltd. |
|
Steering system |
Description |
D50-LHD,power assisted |
Gear box |
Description |
FAST 12JSD200TA, manual, |
12 forward gears &2 reverse gear |
||
Clutch |
Description |
D430 diaphragm type,single dry frictional disc, |
hydraulic boosting |
||
Power divider |
Description |
Installed with engine and gearbox |
Differential lock |
Description |
Provided |
Additional safety |
Description |
Reinforced anti-collision bumper lamps protected by grill,stabilizer bar rotating light, |
hydraulic shock absorber |
||
Axle |
Front axle |
7Ton driving and steering axle |
Rear axle |
13Ton BENZ driving axle, hub redactor, |
|
double reduction |
||
Brake system |
Service brake |
Double circuit pneumatic (air) brake |
Parking brake |
Spring-Power drum brake |
|
Engine brake |
Engine exhaust brake(EVB) |
|

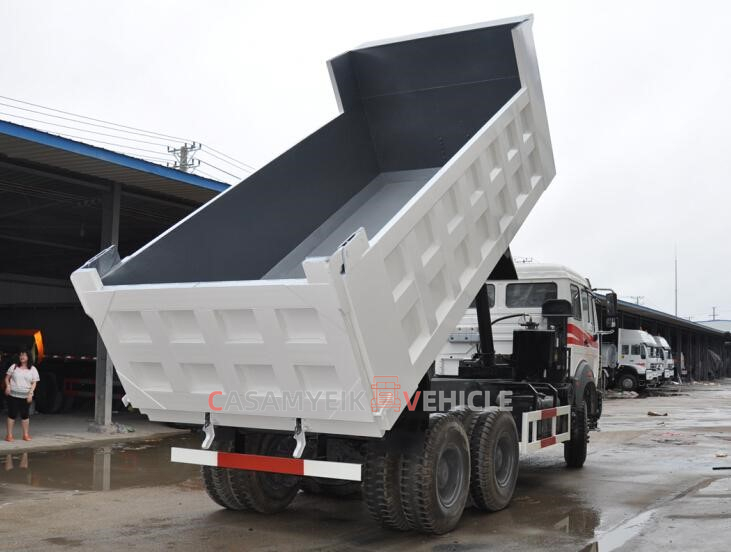

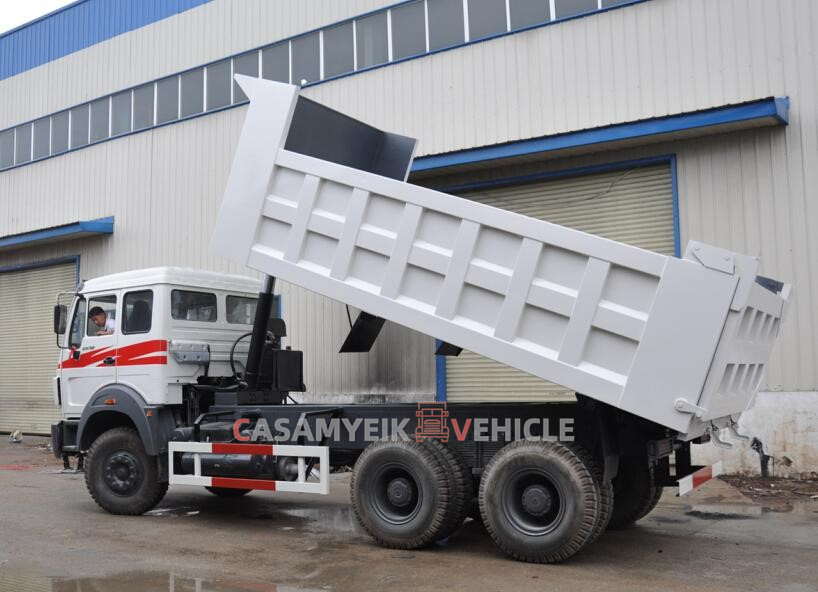

Dump Body Size |
Size:5400×2300×1600mm Capacity:25Tons |
|
Q345/B High Tension Steel Dump Body, |
||
Side and front thickness: 6mm, Floor thickness: 8mm. |
||

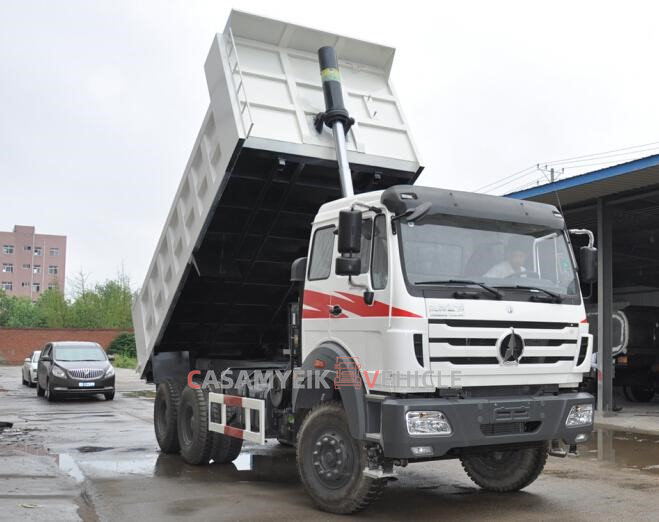

Tipping hydraulics |
Middle Tipping, CHINESE HYDRAULICS SYSTEM |
|
Color& Logo |
Customized |
