1,FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis matchable
2,Dump volume can be customerized.
Key words:dump truck/tipper/side dump truck/hydraulic cylinder dump truck/dumper lorry
Model |

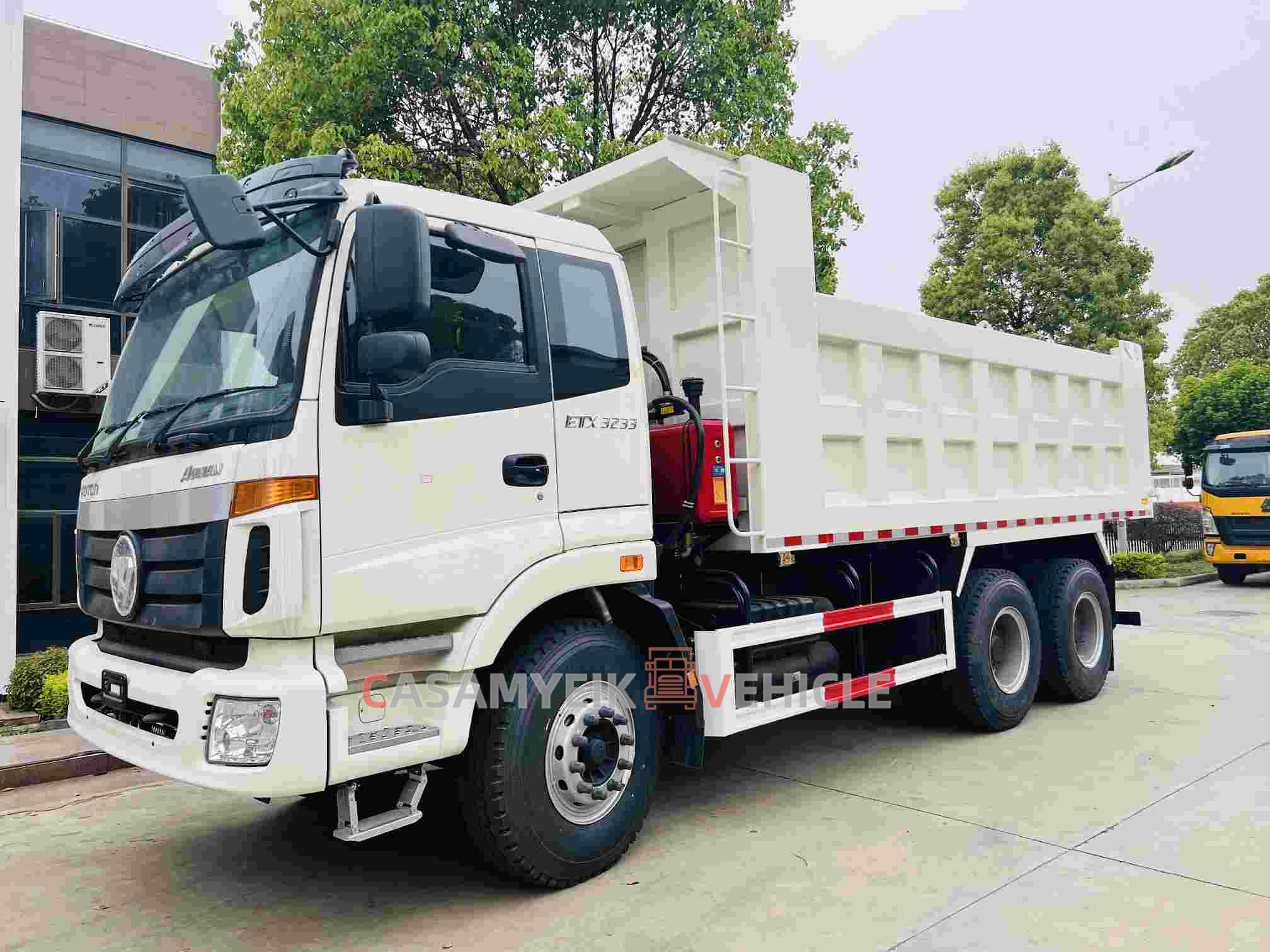

AUMAN 9 Cab, with one sleeper beds, two seats, with A/C |
|
Type |
Forward control cab, hydraulically tiltable by 60° |
|
Construction |
Current standard all steel construction |
|
Instrument panel |
Clearly visible,indicators of compressed air pressure, |
|
coolant temperature, engine oil pressure and battery |
||
charging |
||
Seats |
4-point support fully floating suspension + shock |
|
absorbers driver adjustable & passenger fixed |
||
Seat belts |
For driver & passenger |
|
Glass |
Tempered safety glass |
|
Sun visors |
Dual, adjustable |
|
Mirrors |
Large, truck type convex |
|
Wind screen wiper |
3 arm wind screen wiper system with 3 speeds |
|
Entertainment system |
FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
|
Steering wheel |
Adjustable steering wheel |
|
Horn |
Air horn |
|
Panel |
LCD Panel with LED light |
|
Engine |
|
|
Engine brand |
WEICHAI ENGINE(THE BEST QUALITY ENGINE ) |
|
Engine model |
WP12.380, 380hp |
|
Emission Standard |
EURO III |
|
Engine type |
Diesel 4-stroke direct injection engine, |
|
6-cylinder in-line |
||
with water cooling, turbo-charging & |
||
Inter-cooling |
||
Displacement |
11.526 liters |
|
Max. Output |
380hp@2200rpm |
|
Max. torque |
1280Nm @1100-1600 rpm |
|
Bore/Stroke |
126/130mm |
|
Compression ratio |
17:01 |
|
Specific fuel consumption |
≤193g/kW.h |
|
Cooling system |
|
|
Medium |
Water |
|
Radiator |
heavy duty type |
|
Cooling fan |
Visco static fan tropical type |
|
Thermostat |
Opening at 70-80ºC |
|
Warning device |
Audible & visual |
|
Clutch |
|
|
Type |
Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
|
Transmission |
|
|
Type |
Heavy duty, manual fuller type |
|
Model |
12JS160 |
|
No of speeds |
12 forward + 2 reverse |
|
Front Axle |
|
|
Type |
QINGTE 9 tons steering with double T-cross section beam |
|
Capacity |
9000kg |
|
Rear Axle |
|
|
Type |
ANKAI 16 TONS (16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
|
Capacity |
16T |
|
Chassis |
|
|
Frame |
Heavy duty, reinforced sub frame, |
|
300mmx80mmx8mm |
||
(inner: 280mmx70mmx7mm) |
||
Front suspension |
semi-elliptic leaf springs with hydraulic telescopic double-action |
|
shock absorbers and stabilizer, 1500mm |
||
Rear suspension |
semi-elliptic springs ,and bogie springs, and stabilizer |
|
, 1739mm |
||
Air in-take system |
|
|
Air cleaner type |
Heavy duty type |
|
Pre filter |
Cyclone |
|
Exhaust system |
|
|
Capable of maintaining the sound level as low as possible. |
||
Steering |
|
|
Location |
Left hand |
|
Model |
ZF TECHNOLOGY hydraulic steering with power assistance |
|
Bumper |
|
|
Installed heavy duty front and rear steel bumpers |
||
Brake System |
|
|
Service brake |
Dual circuit compressed air brake. |
|
Parking brake |
Spring energy, compressed air operating on rear wheels |
|
Assistant brake |
Engine exhaust valve brake |
|
Wheels & Tyres |
|
|
Wheels |
Single front and dual rear |
|
Tyres |
Double Coin brand,12.00R20 |
|
Quantity |
13 |
|
Air Supply system |
|
|
Warning device |
Audible & visual |
|
Air line |
Heavy duty steel pipes |
|
Electrical System |
|
|
Operating Voltage |
24V, Negative grounded; Starter 24V, 7.5KW |
|
Battery type |
2x12V, 165Ah/180Ah |
|
Alternator |
28V, 1500W |
|
Cigar |
Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
|
Dimensions |
|
|
Wheel base |
4600+1350mm |
|
Overall length |
8875mm |
|
Overall width |
2496mm |
|
Overall height |
3730mm |
|
Cargo body |
|
|
Internal Size |
6000x2300x1800mm |
|
Thickness of body steel |
Side 4mm & bottom 8mm |
|
Tipping type |
Front lift type with hydraulic system (HYVA hydraulic cylinder) |
