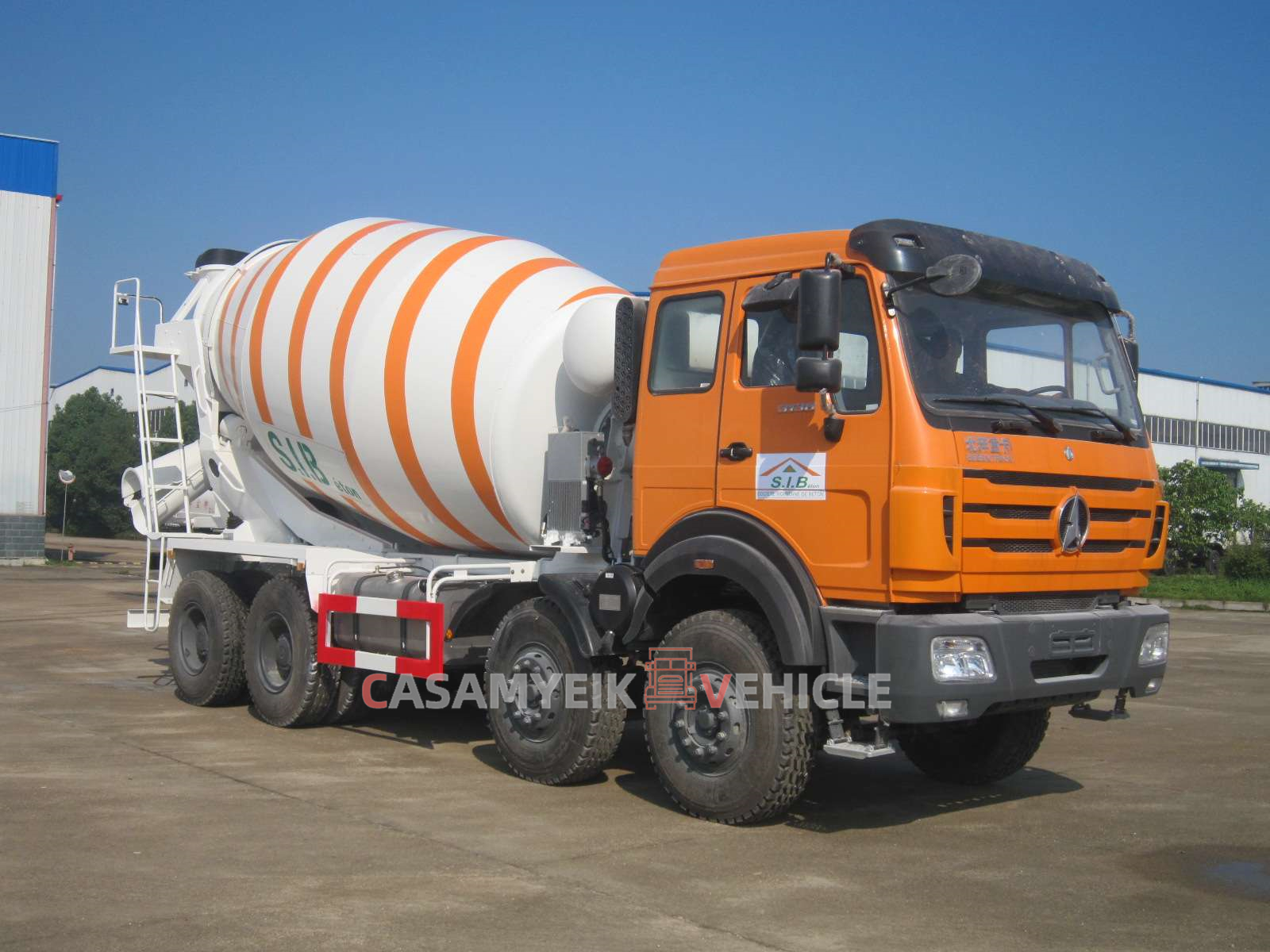

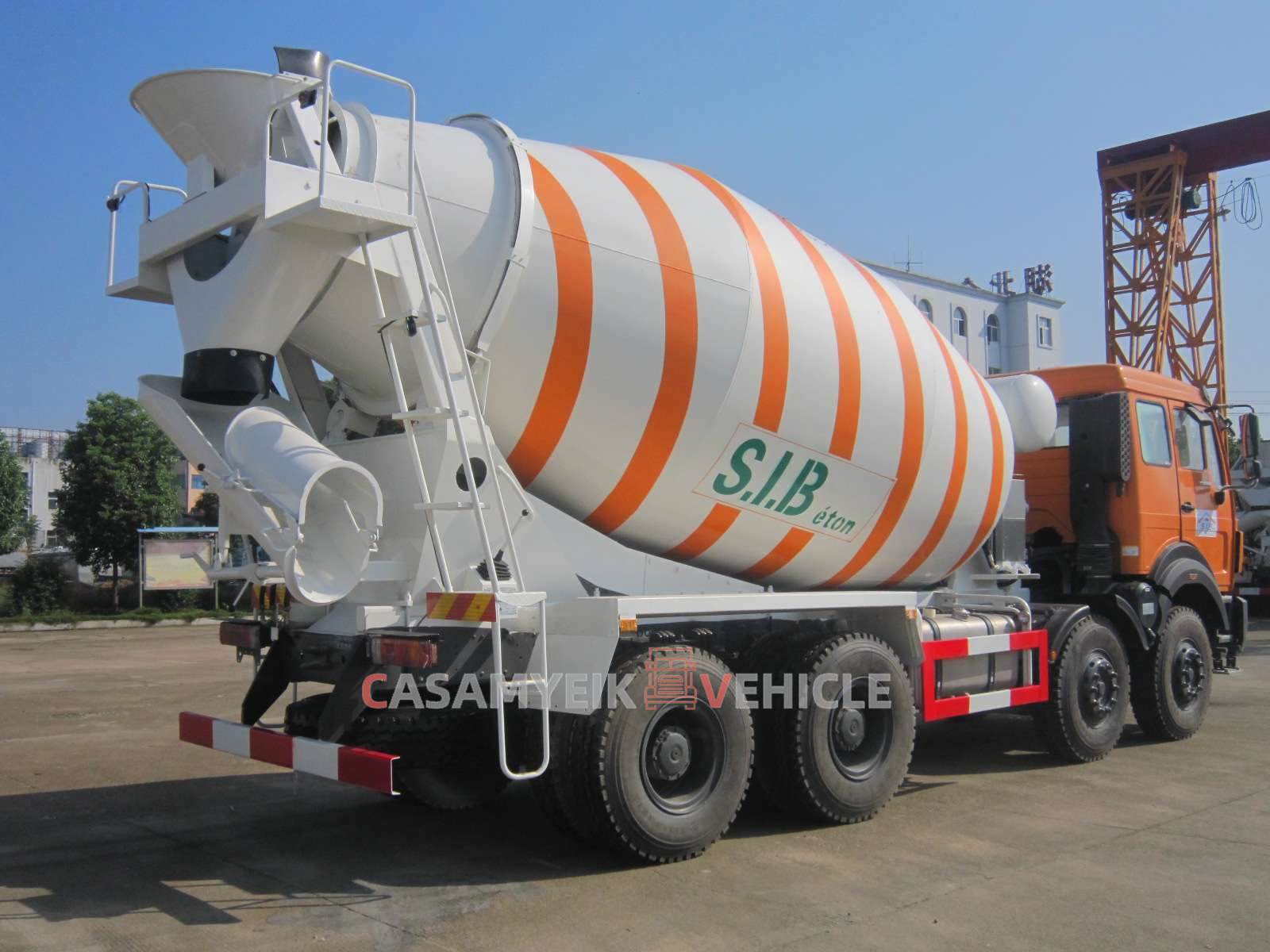

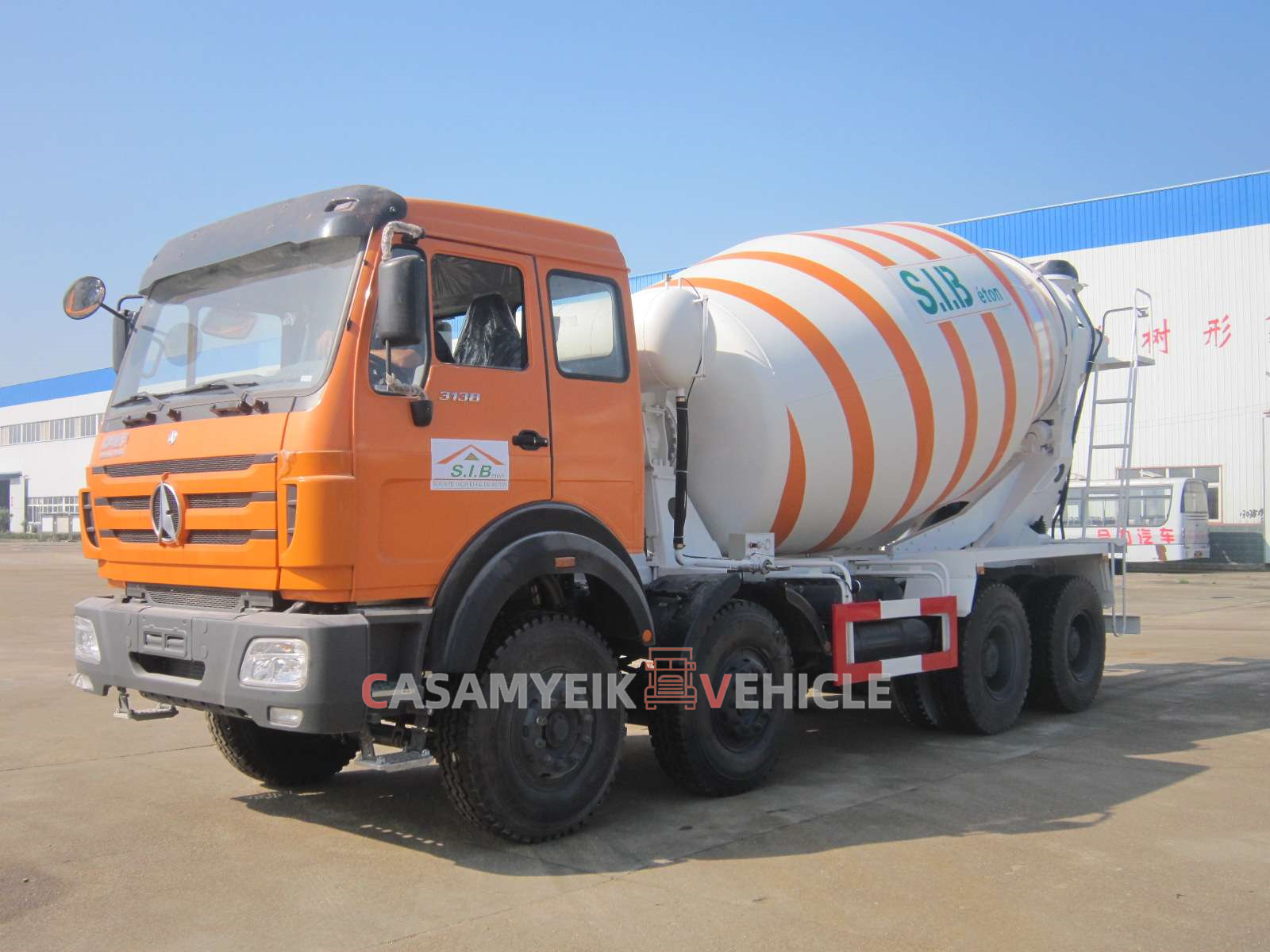

Concrete Mixer Truck-BEIBEN

Vehicle model

CSM5251GJB

Chassis

BEIBEN truck

Drive type

LHD，RHD

Cabin

NG80B,V3

Dimensions date

Wheel base(mm)

3450+1450,4450+1450,5050+1450

Engine

Model

WP10.340E32,WP10.380E32

Emissions standards

Euro 2

Horse power

340hp,380hp

Fuel type

Diesel

Gearbox

Model

9JS150A,12JS200T

Front axle

Loading weight

7.5T

Rear axle

Loading weight

13T*2

Wheels and Tyre size

10+1(12.00R20)

Mixer specification

Mixer

Tanker material

16MnQ345

Mix Capacity(m³)

10-16

Reducer

PMB6.5

Charge Speed(m³/min)

≥2.8

Hydraulic Pump

PMH P90

Discharge Speed(m³/min)

≥1.2

Hydraulic Motor

PMH M90

Residual rate(%)

≤0.5

Radiator

Changzhou KAITONG

Mixing speed

0-18

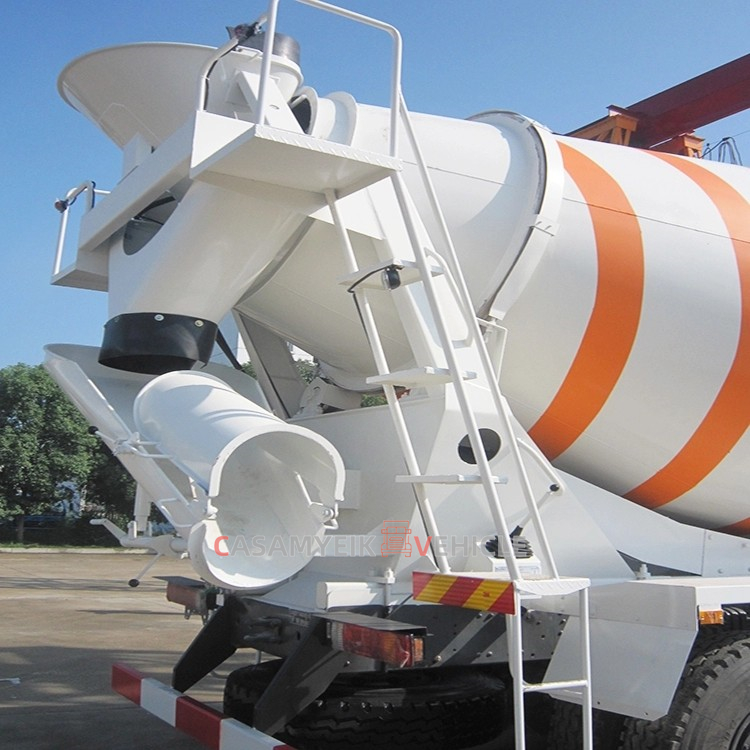

Length of Discharge slot(mm)

1800

Water supply system

Water capacity(L)

400

Water Supplying Method

Pressure

Operation Method

Shaft operation

Structure Features

1, Mixing drum and leaf with special wear-resistant materials;

2, Discharge trough, into the hopper and cylinder liner use the same wear-resistant materials used;

3, Control system user-friendly, flexible shaft operation, simple and safe and reliable;

4, Use famous brand hydraulic system;

Washing system operated in the back,discharge fast , no surplus

Option

 hydraulic sytem made in China
