4axle 55CBM cement tanker semi trailer
Main Dimensions |
|||||
Overall Length |
12800mm |
|
|||
Overall Height |
3800MM |
||||
Tare Weight |
13700KGS |
||||
Total Volume |
55CBM |
||||
Pay Load |
66Tons |
||||

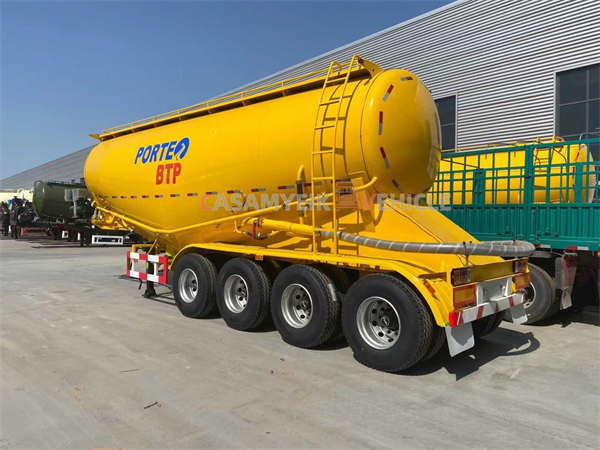

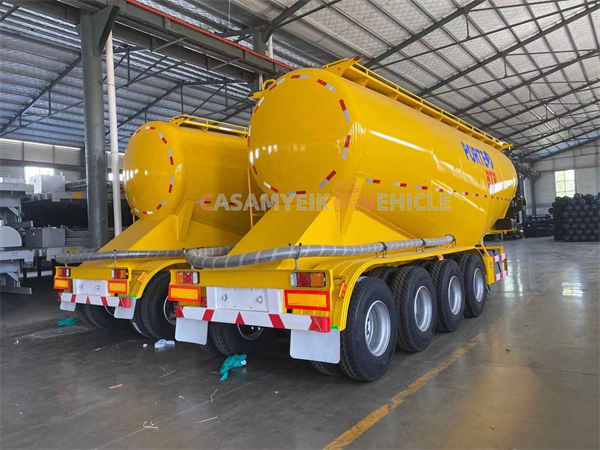

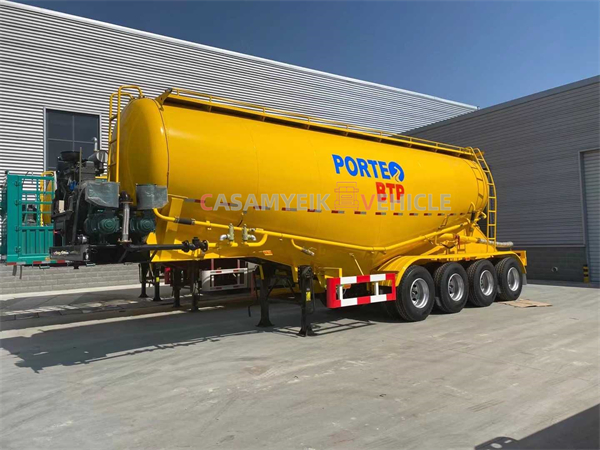

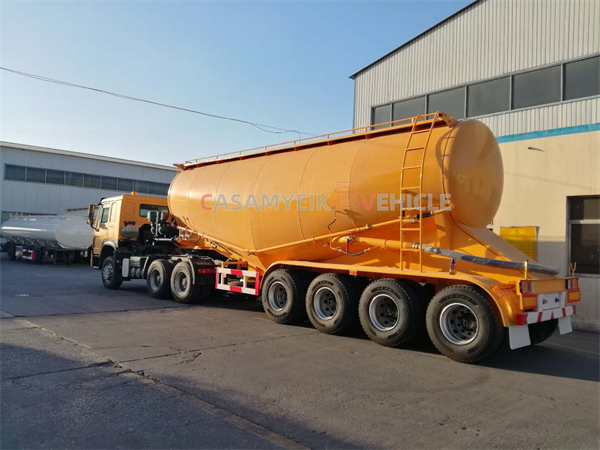

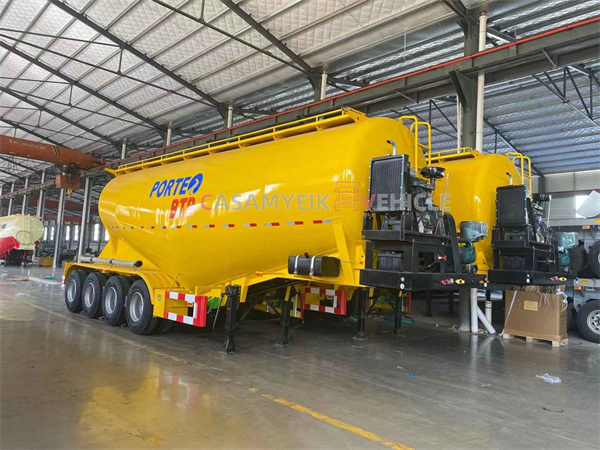

Photo for reference, final products can be made according to exact requirements |
|||||
Tanker Body |
|||||
Inner Fluidized Bed |
Air bag |
Rated work Pressure |
0.2MPa |
||
Tanker Body |
Q235A/ 6mm steel sheet |
Compartment |
Single |
||
End plate |
Q235A/6mm, ball shape |
Shape |
V type |
||
Chassis |
|||||
Axles |
4 axles, L1 16 ton |
||||
Suspension |
Mechanical suspension with 8-pcs leaf spring |
||||
Braking System |
WABCO Emergency Relay Valve; T30/30+T30 air chamber |
||||
Rim & Tire |
11R22/5 tubeless tire with one spare tire with 8.25R22.5 wheel rim, 13 pieces |
||||
Key Accessories |
|||||
Air compressor |
45KW, 0.2Mpa, 1000r/Min |
||||
Engine |
Diesel engine |
||||
Manhole Cover |
500mm manhole cover, 3 sets |
||||
Air-charging system |
2” main hole, 2”check valve, 1.5” safe valve, 0.4Mpa gauge |
||||
Discharge Pipe |
4” seamless steel tube |
||||
Quadratic blow |
1” diameter check valve |
||||
Discharge valve |
4”disc valve |
||||
Outlet discharging pipe |
4” rubber hose, 6m |
||||
