Cement Tanker Trailer-3 axle

Main Dimensions

Overall Length

11800mm

Overall Height

3800MM

Tare Weight

12400KGS

Total Volume

47CBM

Pay Load

40-45Tons

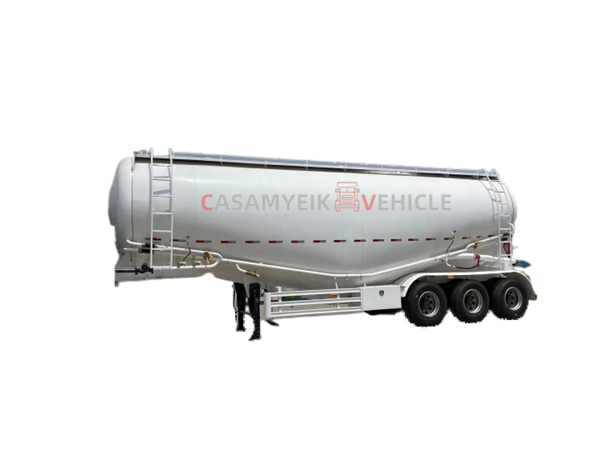

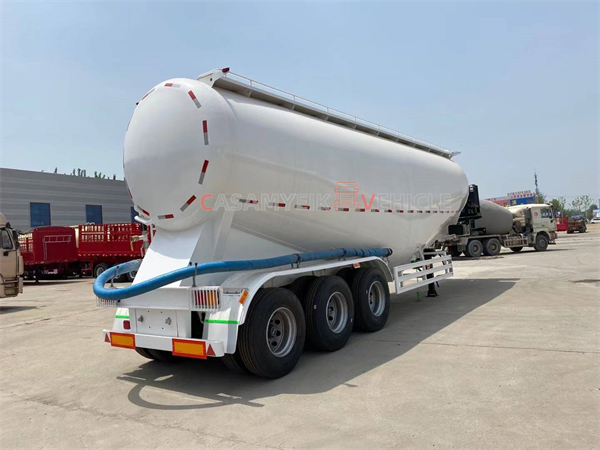

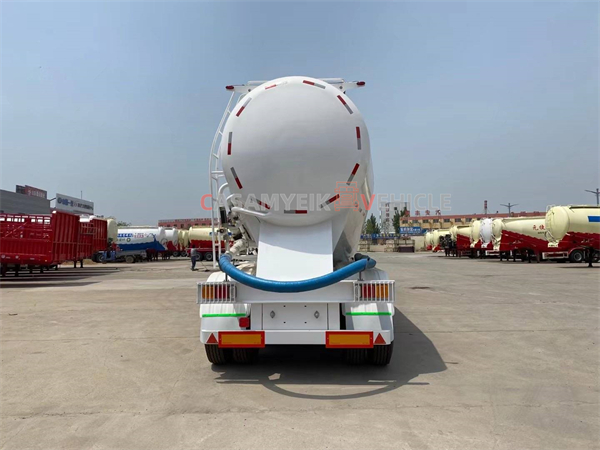

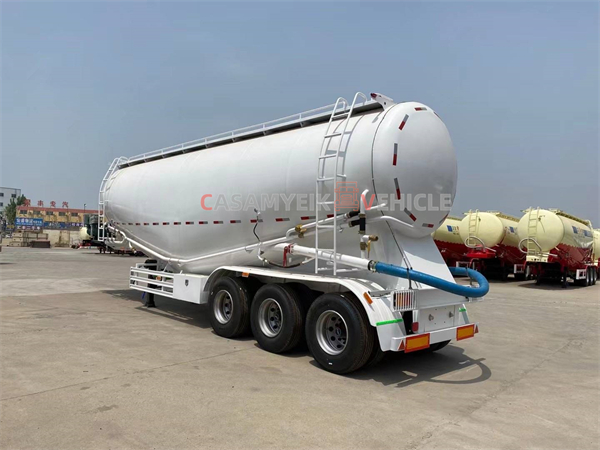

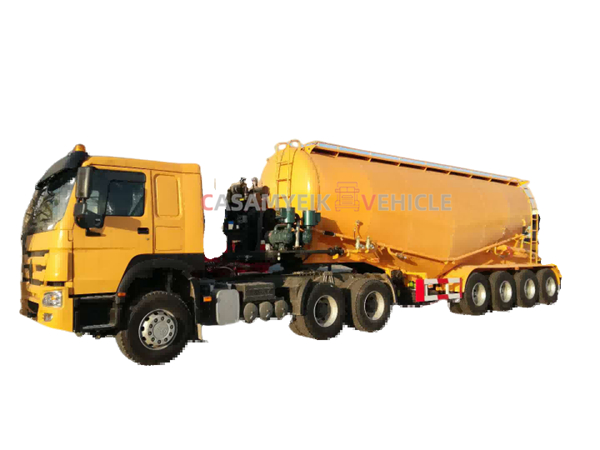

Photo for reference, final products can be made according to exact requirements

Tanker Body

Inner Fluidized Bed

Air bag

Rated work Pressure

0.2MPa

Tanker Body

Q235A/ 6mm steel sheet

Compartment

Single

End plate

Q235A/6mm, ball shape

Shape

V type

Chassis

Axles

3 axles, FUWA Brand 13 ton

Suspension

Mechanical suspension with 8-pcs leaf spring

Braking System

WABCO Emergency Relay Valve; T30/30+T30 air chamber

Rim & Tire

11.00R22.5 tubeless tire with one spare tire with 8.25R22.5 wheel rim,  13 pieces

Key Accessories

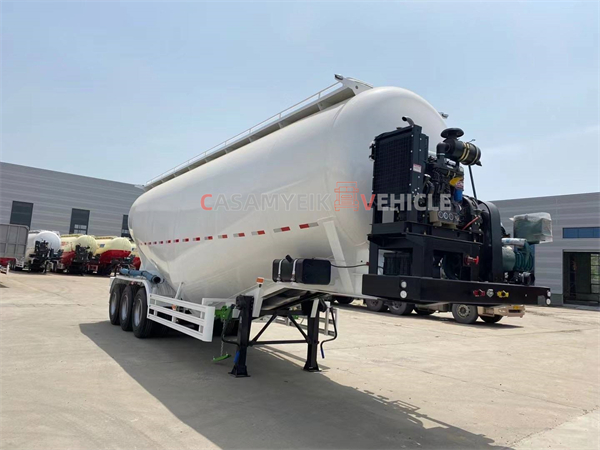

Air compressor

45KW, 0.2Mpa, 1000r/Min

Engine

Diesel engine

Manhole Cover

500mm manhole cover, 3 sets

Air-charging system

2” main hole, 2”check valve, 1.5” safe valve, 0.4Mpa gauge

Discharge Pipe

4” seamless steel tube

Quadratic blow

1” diameter check valve

Discharge valve

4”disc valve

Outlet discharging pipe

4” rubber hose, 6m
