1,FOTON/BEIBEN/DONGFENG/HOWO/FAW chassis matchable.
2,Tank capacity can be customerized.
Key words:Airport feul truck/aircraft refueling truck/aviation jet fuel refueling vehicle/military aircraft refueling trucks
Vehicle model |
CSM85081GJY |
|
Drive type |
LHD |
|
Cabin |
Single row |
|
Dimensions date |
Wheel base(mm) |
3360 |
Engine |
Model |
F3.8s3141 |
Emissions standards |
Euro 3 |
|
Rated Power(kw/rpm) |
105 |
|
Horse power(hp) |
143 |
|
Fuel type |
Diesel |
|
Gearbox |
Model |
651B |
Front axle |
Loading weight |
3T |
Rear axle |
Loading weight |
6T |
Wheels and tyre size |
6+1(8.25R20) |
Tank |
Material |
6mm aluminium |
Paint |
optional |
|
Volume |
5000L |
|
Compartment |
Single cabin with pump |
|
Manhole (European standard) |
1 |
|
Bottom valve |
1 |
|
Refueling gun (15 meters) |
1 |
|
Refueling machine |
1 |
|

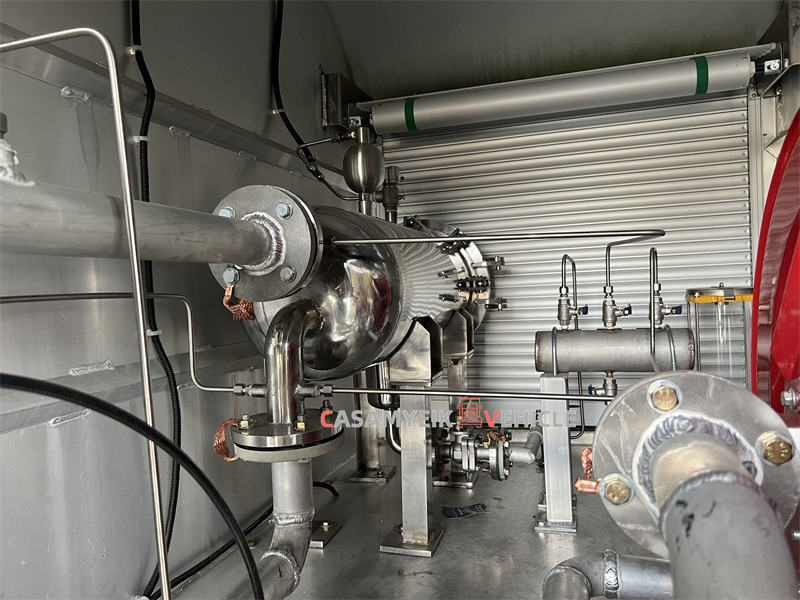

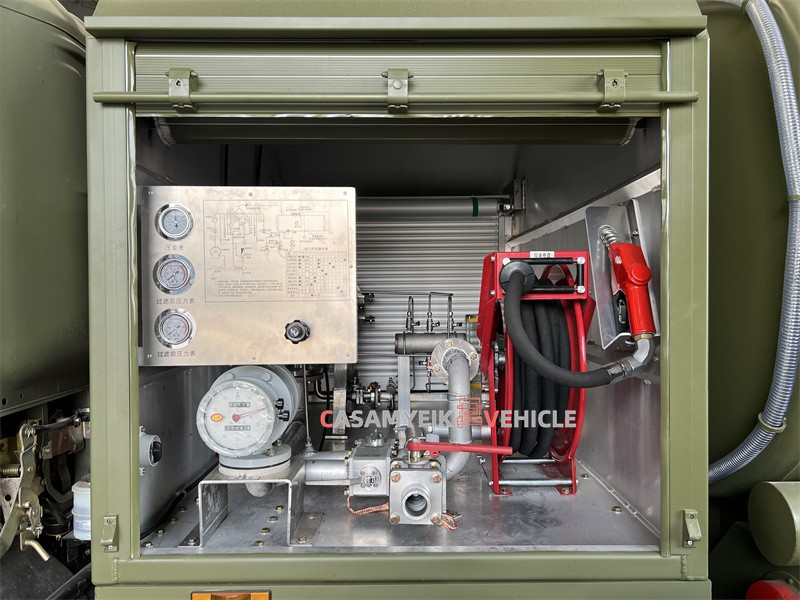

Equipment |
stainless steel bottom valve |
|
static guide wire plate |
||
float level gauge |
||
aviation kerosene |
||
special aluminum alloy pump |
||
the filtered sampling sampling valve |
||
filter separator |
23 meters reel and gun |
