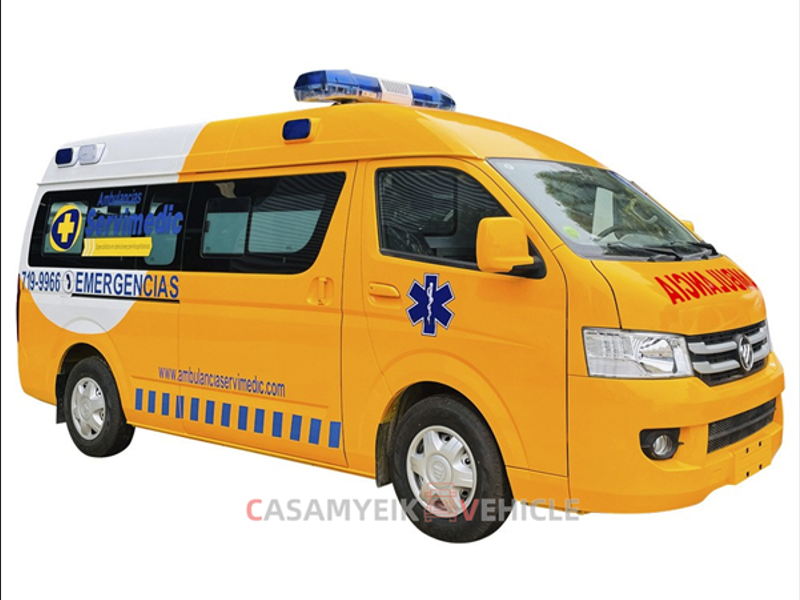

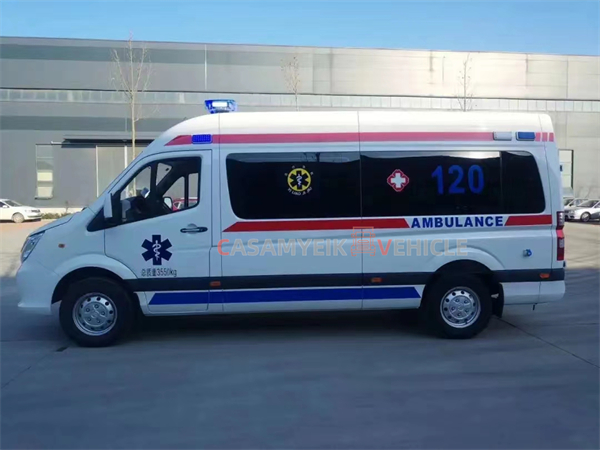

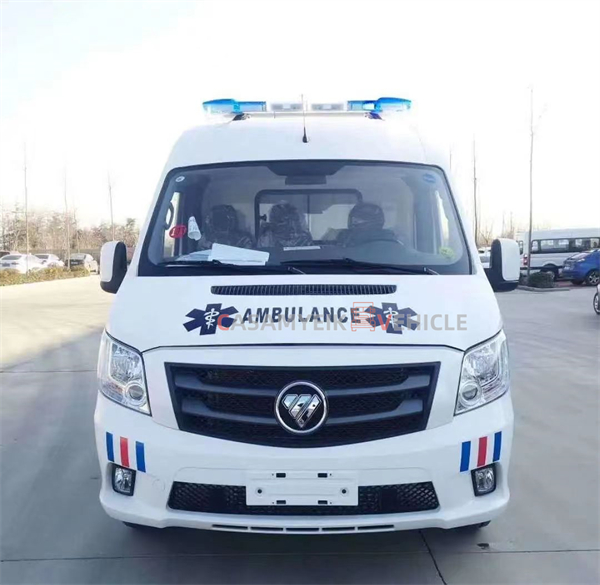

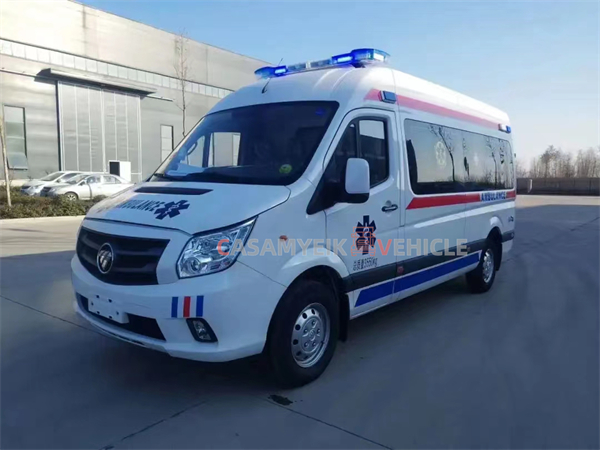

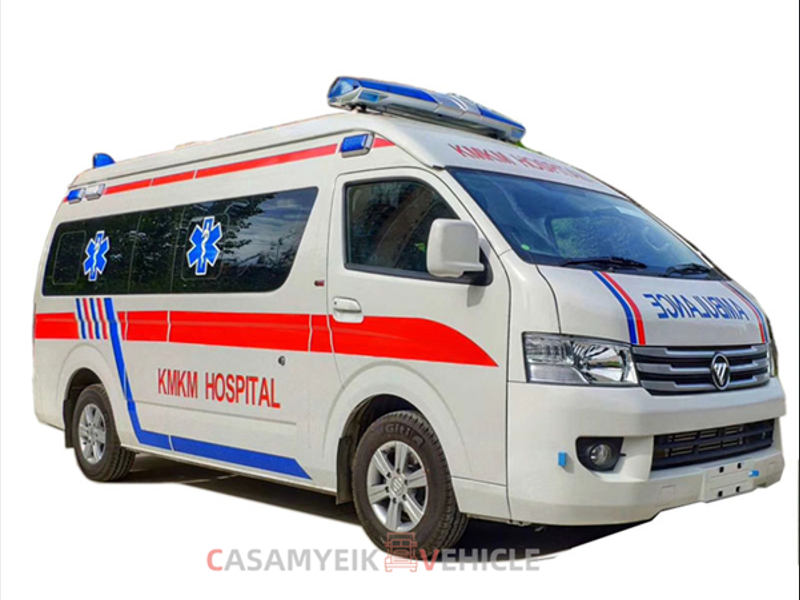

Monitor Ambulance-FOTON

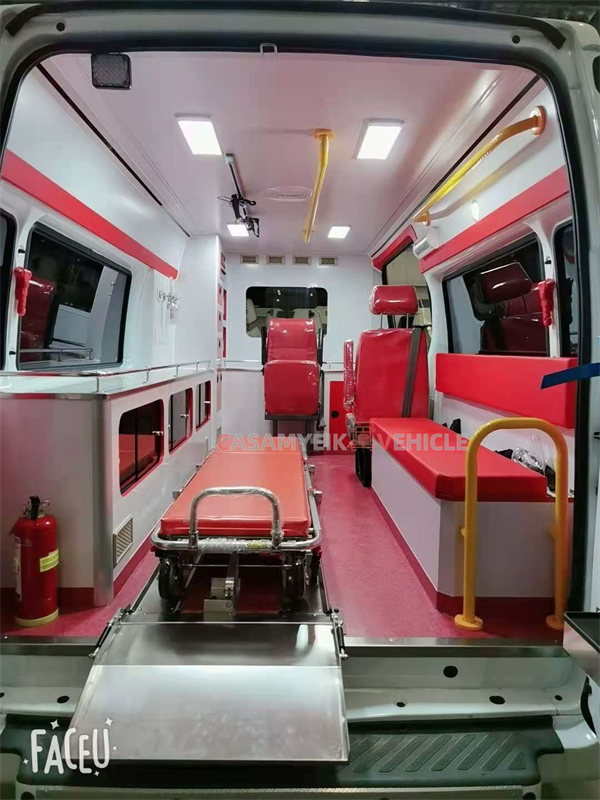

A 、Medical cabin interior trim assembly system

1

The roof of the cabin is flat topped with fiberglass panels

1

2

PVC sheet flip medical long lifting cabinet on the left side of the cabin

1

3

Three-layer anti-skid equipment frame on the left side of the cabin

1

3

PVC plate medical equipment cabinet in the left part of the cabin, with plexiglass sliding door

1

4

Two 10L oxygen tanks can be placed in the PVC vertical oxygen tank on the left side of the tank

1

5

Install a sliding infusion hook on the roof

1

6

Medical cabin full blue collision soft wrap

1

7

Medical environmentally friendly wear-resistant blue or red floor leather and bedding

1

8

New polymer lightweight environmental protection material special shape partition wall

1

9

The middle partition wall is transparent push and pull observation window, convenient before and after observation

1

10

A sleeper in the cab

1

Optional

11

A new powerful exhaust system is installed on the top of the medical cabin, which has both suction and exhaust functions

1

12

Front and rear intercom systems are installed in the medical cabin

1

B、 Intelligent power management system

1

Integrated circuit integrated control panel

1

2

2000W high-power intelligent pure sine wave inverter system

1

3

National standard 12V power socket is installed in the medical cabin

1

4

National standard 220V power socket is installed in the medical cabin

4

C 、Lighting, disinfection system

1

Ultraviolet disinfection lamp for medical treatment in cabin

1

2

Top LED lighting

4

3

Spotlights for medical lighting

2

4

Lighting on the rear end of the cabin

1

5

Door control light in the medical cabin

1

D 、Oxygen breathing system

 1

Oxygen cylinder (with pressure relief valve barometer) (10L) with sliding door

2

 2

Aquapor EL quick conversion interface

1

 3

Humidification bottle

2

 4

The medical cabin is installed with a German standard oxygen port

2

5

Hidden oxygen pipeline system

1

E 、Air conditioning exhaust system

 1

Air conditioning cold air system in medical cabin

1

2

Independent heating and air system for medical cabin

1

F、Seat, stretcher

1

Partition the rear nurse seat

1

2

Right long seat cushion and seat belt, with storage function, with independent seats or all individual back adjustable seat

1

3

Automatic car stretcher

1

5

Shovel stretcher

1

G 、Warning system

1

Long warning lamp on the front top of the roof

1

2

Install long flashing warning lights on the left and right sides

1

3

Square flashing warning lights are installed at the rear door

1

4

100W alarm and handheld control (volume adjustable)

1

H 、Accessory equipment

1

Black solar film on the left side of the medical module

1

2

Right, posterior side translucent frosted film

1

3

Customize the appearance according to the user's requirements

1

4

Yellow safety armrest on the top

1

5

The yellow U-shaped armrest is convenient for the back door

1

6

Large cab screen navigation and reversing image and video surveillance in the medical cabin

1

7

Stainless steel dirt bucket

1

8

Special fire extinguisher

1

9

In the door push pull window

1

10

Mechanical car steps

1

11

Cab seat is clad

1
