Key Words:LPG storage tank/LPG filling station/ LPG(gas) filling system/plant/machine/equipment gas cylinder filling station/LPG gas tank/LPG tank skid/LPG dispenser/LPG cylinder
Specification |
|
Volume of Tank |
5cbm-50cbm |
Filling weight(Kg) |
2000kg -30000kg |
Thickness of Shell (mm) |
10 mm |
Thickness of Endplate (mm) |
12 mm |
Tank Diameter (mm) |
1800 mm |
Tank Dimensions (mm) (length x width x height) |
8174X1840X2410mm |
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
Design Pressure |
1.71 MPa |
Corrosion Allowance |
1 mm |
Medium Density |
500-590 kg/ cbm |
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|

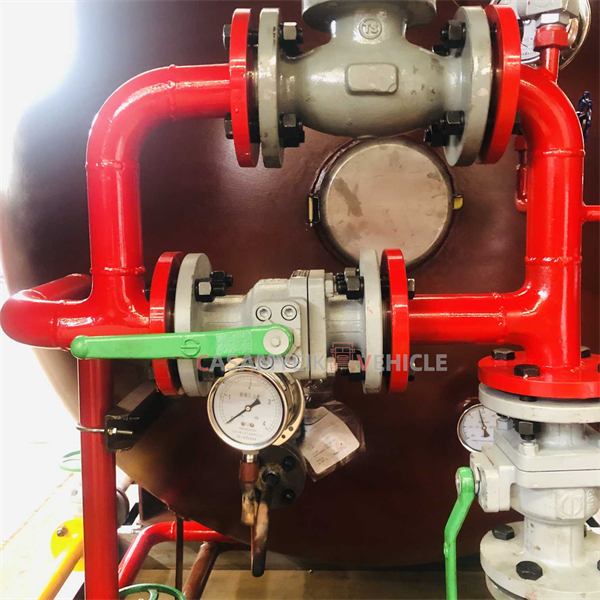

Specification of LPG Pump and Motor |
|
Item |
Specification |
Specification of the Motor |
|
Model |
Chinese famous brand |
Revolving speed |
1470 r/min |
Power |
5.5 kw |
Voltage |
380 V |
Protection grade |
Anti explosive |
Specification of the hydrocarbon Pump |
|
Model |
YQB15-5 |
Medium |
Liquid petroleum gas |
Speed |
15 m3/h |
Input and Output Diameter |
50 mm |
Working pressure |
2.0 Mpa |
Working temperature |
-40ºC- 50ºC |
Material |
carbon steel |
