1,Axle:three or four axle trailer
2,Volume:25CBM-60CBM capacity
3,Material: Aluminium alloy or carbon steel
Key Words:feul truck/fuel tanker truck/feul tank truck/oil tanker truck/feul delivery tank truck/tank truck/ feul tanker truck capacity/ feul tank truck for sale/fuel tanker truck tarkov/feul cell truck/feul tank capacity of semi truck/diesel feul truck/feul truck airport/semi tanker/tanker lorry/jet feul/truck dimension/aviation feul/petroleum
|
Truck model |
CSM9400GYY |
||
|
Tank assembly |
tank volume |
25000L-60000L |
|
|
tank material |
aluminium alloy |
||
|
Front/Rear end plate |
6mm |
aluminium alloy |
|
|
Tank body |
5mm |
aluminium alloy |
|
|
Compartment |
1-10 optional |
||
|
Manhole cover |
Diameter |
500mm |
|
|
Running mechanism |

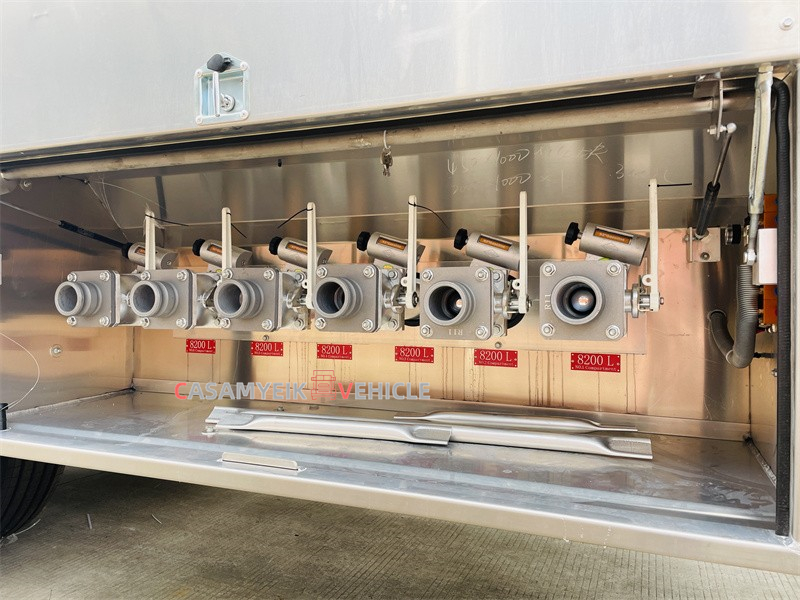

Discharging valve |
3 inch API standard |
|
|
Wave-proof plate thickness |
4mm |
||
|
Bottom safety valve |
4 inch |
||
|
Discharging pipe |
Diameter 3 inch Rubber hose,2pcs |
||
|
Walkway |
Standard |
||
|
Axle |
Fuwa Brand 13ton 3pcs , optional : 4 pcs, 5pcs |
||
|
Rim |
9.0-22.5 12 pcs |
||
|
Tyre |
Tri-angle brand 295/80R22.5 , 12.00R20 , 12.00R22.5 |
||
|
Suspension |
Mechanical suspension |
||
|
Spring leaf |
90mm*13mm*10 Layer |
||
|
King pin |
Bolts type2 inch |
||
|
Brake system |
Air tank |
40L air tanks |
|
|
Brake chamber |
6 double spring brake chamber |
||
|
ABS |
(4S/2M optional) |
||
|
Landing gear |
JOST/SAF brand 28t two speed |
||
|
Accessories |
Spare tire carrier |
One |
|
|
Light |
LED light |
||
|
Electric |
7 ways(7wire harness)and quick change type ,24Voltage |
||
|
Tool box |
One piece,1000x500x500mm |
||
|
Paiting |
Polyurethane paint&anti-rust primer&sand blasting |
||
|
Tools for trailer |
Head wrech ;spare wheel crank ; one fire extinguisher; Operation Manual |
||
