1,FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis matchable
2,Working height from12M-24M
3, Telescopic boom working height from 16M-38M
Key words:bucket/bucket trucks/scissor lift/cranes/cherry picker/work platfor truck mounted/telescopic boom lift truck/boom crane truck/aerial platform/articulating boom

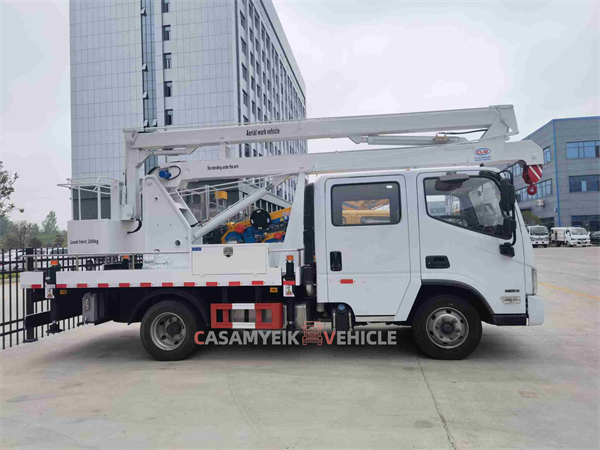

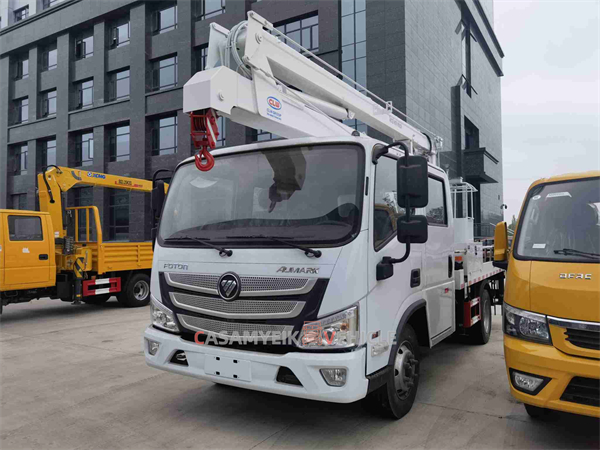

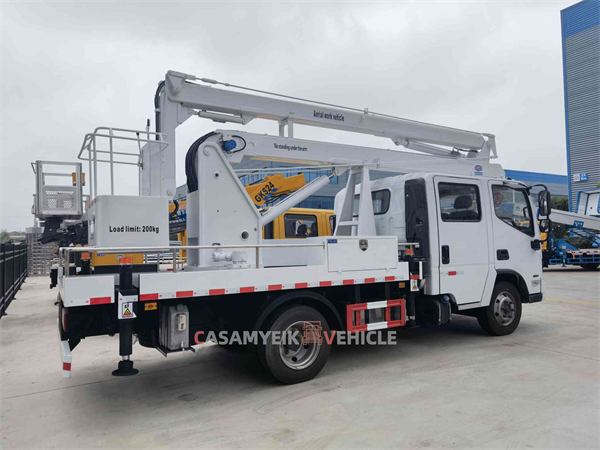

Vehicle model |
AUMARK-S33 |
|
Cabin |
Single row/W2060/left rudder |
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
5890×2105×2400 |
Wheel base(mm) |
3360 |
|
Weight data |
Curb weight(kg) |
3210 |
Gross vehicle weight(kg) |
8275 |
|
Persons in cab |
3 |
|
Whole vehicle main performance |
Max. speed(km/h) |
105 |
ENGINE |
Model |
F3.8s3141 |
Emissions standards |
EuroⅢ |
|
Displacement(L) |
3.76 |
|
Rated Power(kw/rpm) |
105 |
|
Max torque (N.m/rpm) |
450 |
|
Gearbox |
Model |
6S558 |
Front axle |
Type/Mainreducetion ratio |
3.6T |
Rear axle |
Type/Mainreducetion ratio |
6T/5.286 |
Suspension |
Front suspension/Leaf spring number |
9 |
Rear suspension/Leaf spring number |
8+6 |
|
Brake system |
Service brake |
Drum pneumatic braking |
Parking brake |
Brake gas brake |
|
Auxiliary brake |
Engine exhaust brake |
|
Wheels and tyre size |
6+1/(L8.25R1614L) |
Power take-off system |
Power is taken by the gearbox and operated in the cab |
|

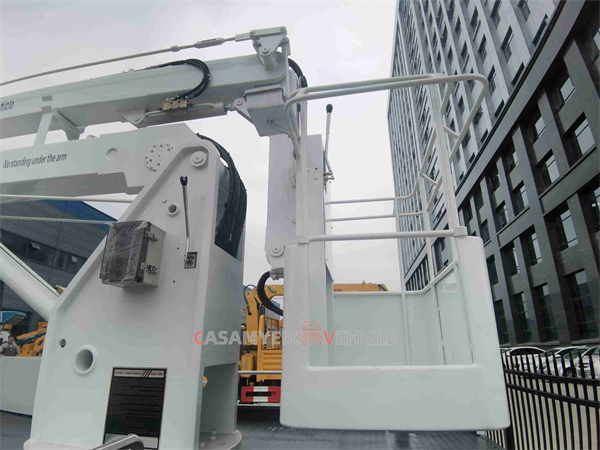

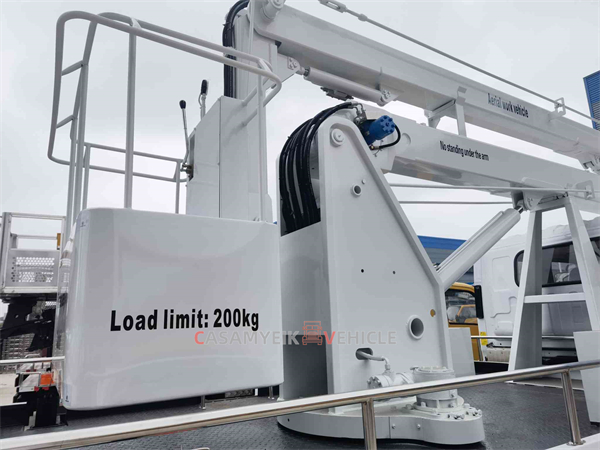

Work bucket |
Size 1150×650×1150mm Rated load 200kg |
|
Boom |
Two-section folding arm |
|
Swivel device |
Two-way 360° continuous rotation |
|
operating system |
Two operating systems of working bucket and turntable |
|
Hydraulic system |
Electro-hydraulic control, stepless speed regulation, equipped with emergency pump |
|
Go platform |
Steel toolbox and hoarding, stainless steel railing, aluminum alloy anti-skid platform |
|
safety devices |
Interlock for getting on and off the car, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level, working arm limit position alarm and protection device |
|
Leveling system |
Built-in combined automatic leveling system |
|
Main operating technical parameters |
Working height of bucket |
12.3m |
Maximum working range of working bucket |
6m |
|
Rated load of working bucket |
200Kg |
|
Rotation angle |
±360° continuous |
|
Working range at maximum working height of working bucket |
3m |
|
Working height when working bucket maximum working range |
7.3m |
|
Lifting time of working platform |
80~130s |
|
Swing speed |
0~2 r/min |
