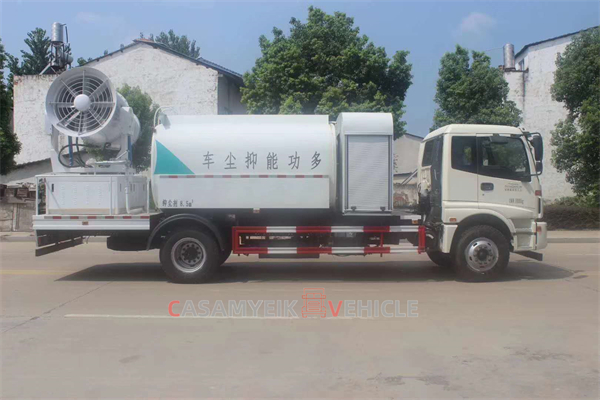

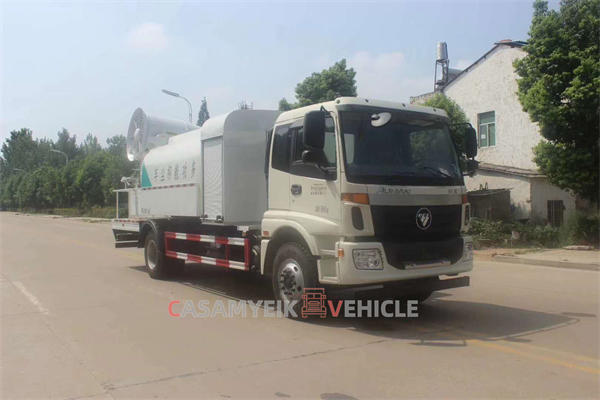

1,FOTON/BEIBEN/HOWO/DONGFENG/FAW chassis matchable
Key words:dust control water truck/sprayer/fog cannon/dust poluttion
Vehicle model |
Auman |
|
Cabin |
AUMAN-ETX-4x2 |
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
7500×2230×3250 |
Wheel base(mm) |
4500 |
|
Weight data |
Curb weight(kg) |
3980 |
Gross vehicle weight(kg) |
6495 |
|
Persons in cab |
3 |
|
Whole vehicle main performance |
Max. speed(km/h) |
95 |
ENGINE |
Model |
WP10.270E32 |
Emissions standards |
EuroⅢ |
|
Horse Power(Hp) |
270 |
|
Rated Power(kw/rpm) |
170 |
|
Gearbox |
Model |
RTD11509C,9JS119,9JSD150T-B |
Brake system |
Service brake |
Drum pneumatic braking |
Parking brake |
Central drum brake |
|
Auxiliary brake |
Engine exhaust brake |
|
Wheels and tyre size |
6+1(12.00-R20) |

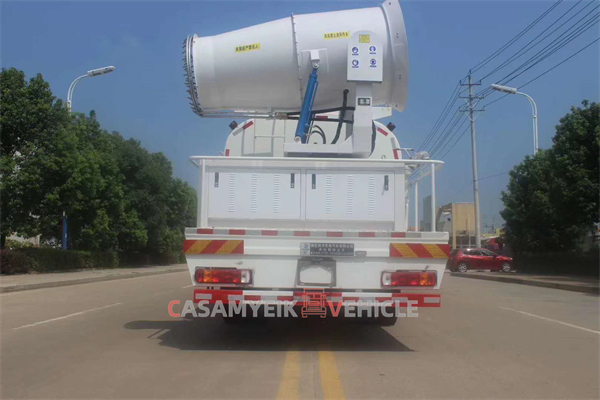

A Type Mist Cannon (60m) |
|
Dimension(L*W*D) (mm) |
8790×2480×3580 |
GVW(kg) |
18000 |
Curb Weight(kg) |
9520 |
Payload(kg) |
8285 |
Water Tank Volume(L) |
9800 |
Maximum Range(m) |
≥60 |
Maximum Height(m) |
≥20 |
Spraying Volume(L/min) |
30~55 |
Spraying Pressure(Mpa) |
≥2 |
Mist Cannon Pitch Angle(°) |
-10~60 |
Rotation Angle(°) |
-90~90 |
Remote Range(m) |
≥75 |
Noise (dB) |
≤82 |
B Type Mist Cannon (100m) |
|
Dimension(L*W*D) (mm) |
9640×2500×3830 |
GVW(kg) |
18000 |
Curb Weight(kg) |
11940 |
Payload(kg) |
5865 |
Water Tank Volume(L) |
9800 |
Maximum Range(m) |
100 |
Maximum Height(m) |
30 |
Spraying Volume(L/min) |
0~160 |
Spraying Pressure(Mpa) |
2 |
Mist Cannon Pitch Angle(°) |
-10~60 |
Rotation Angle(°) |
-90~90 |
Remote Range(m) |
≥75 |
Noise (dB) |
≤88 |
C Type Mist Cannon (120m) |
|
Dimension(L*W*D) (mm) |
10110×2500×3830 |
GVW(kg) |
18000 |
Curb Weight(kg) |
12720 |
Payload(kg) |
5085 |
Water Tank Volume(L) |
9800 |
Maximum Range(m) |
120 |
Maximum Height(m) |
45 |
Spraying Volume(L/min) |
0~240 |
Spraying Pressure(Mpa) |
2.5 |
Mist Cannon Pitch Angle(°) |
-10~60 |
Rotation Angle(°) |
-90~90 |
Remote Range(m) |
≥75 |
Noise (dB) |
≤90 |
D Type Hydraulic Mist Cannon (120m) |
|
Dimension(L*W*D) (mm) |
10350×2500×3590 |
GVW(kg) |
18000 |
Curb Weight(kg) |
11500 |
Payload(kg) |
6305 |
Water Tank Volume(L) |
9800 |
Maximum Range(m) |
≥120 |
Maximum Height(m) |
≥45 |
Spraying Volume(L/min) |
150~400 |
Spraying Pressure(Mpa) |
≥1.1 |
Mist Cannon Pitch Angle(°) |
-10~60 |
Rotation Angle(°) |
-90~90 |
Remote Range(m) |
≥75 |
Noise (dB) |
≤90 |
