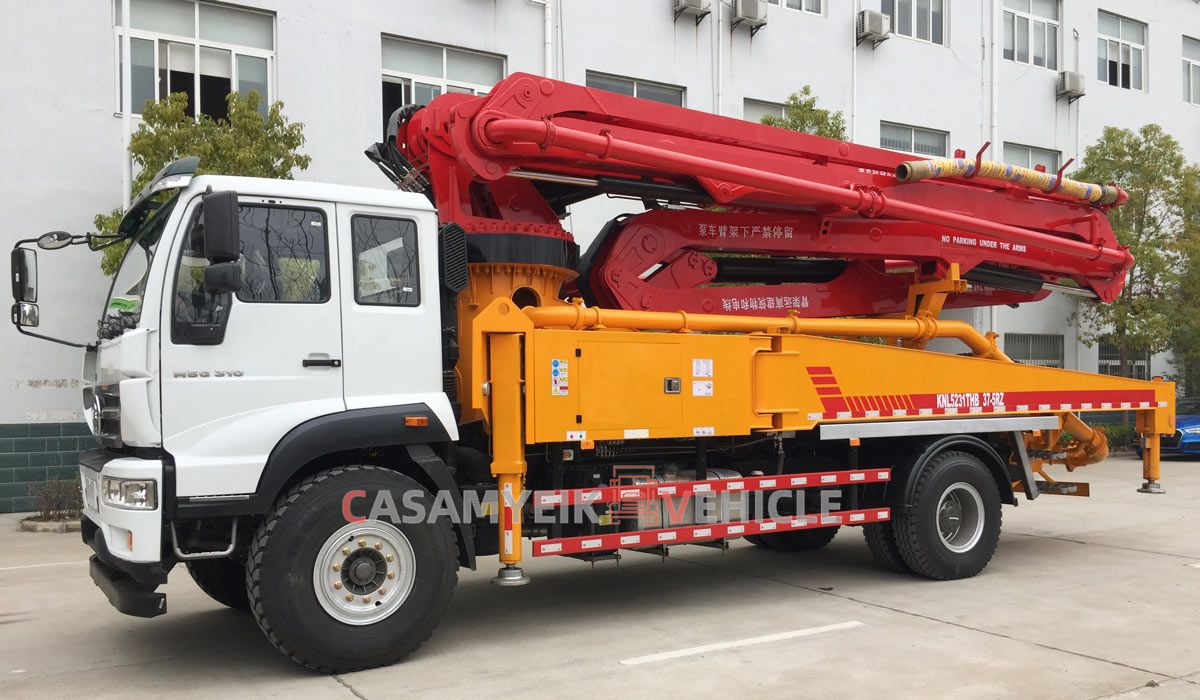

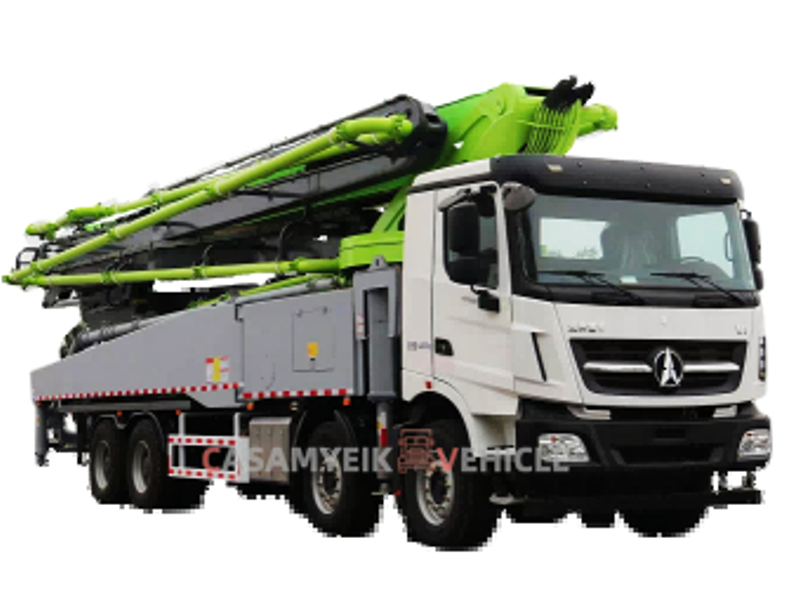

1,FOTON/BEIBEN/HOWO/SANY/XCMG chassis matchable
2,Pumping height from 28M-56M
Key words:concrete pump truck/truck mouted concrete/concrete machinery
|
Vehicle model |
3138KZ |
|
|
Drive type |
LHD，RHD |
|
|
Cabin |
NG80B,V3 |
|
|
Dimensions date |
Wheel base(mm) |
1500+5050+1450 |
|
Engine |
Model |
WP10.380E32,WP10.420E32 |
|
Emissions standards |
Euro 2 |
|
|
Horse power |
380hp,420hp |
|
|
Fuel type |
Diesel |
|
|
Gearbox |
Model |
12JS200T |
|
Front axle |
Loading weight |
7.5T*2 |
|
Rear axle |
Loading weight |
13T*2 |
|
Wheels and Tyre size |
12+1(12.00R20) |
|
Hopper Capacity
|
Upper |
||
|
Material |
Q235 carbon steel |
|
|
Thickness |
16mm |
|
|
Use life |
10 years |
|
|
1mm |
||
|
Pumping system |
concrete outlet pressure |
10.5-20MPa |
|
To allow maximum aggregate size |
40mm |
|
|
160-220mm |
||
|
Cylinder bore/trip |
230*1450mm |
|
|
Pump times in theory |
26/13 times/min |
|
| Hopper Capacity |
650L |
|
|
Model of Distributing Valve |
S pipe |
|
