ITEM |
DESCRIPTION |
|
Model |
CSM-YQ20 |
|
Filling Medium |
Petrol/Diesel |
|
Tank Material |
Inner: carbon steel |
|
Outer: FRP |
|
|
Tank Volume |
5000-40000L |
|
Tank size |
Diameter*length: 2.2*5.89m |
|
Tank Weight |
2680kg |
|
Wall |
Double |
|
Tank body thickness |
Inner: 6mm |
|
Outer: 4mm |
|
|
Corrosion allowance |
1.0mm |
|
Compartment |
for one oil product |
|
Manhole |
1 * DN550 manhole |
|
Name |
Specification |
Qty |

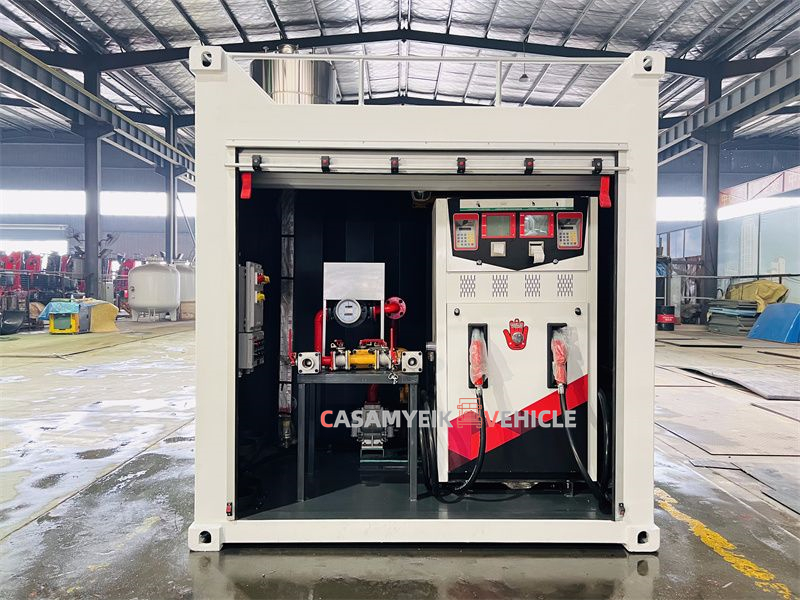

Fuel dispenser With two nozzles |
1 nozzle |
2 |
1 oil product |
||
1 pump |
||
Flow rate: 0-60L/minute |
||
Vlatage:220V |
||
Hose 4meter |
||
|
||
Manhole well &cover |
Material: FRP |
2 |
Size:1400*1350*850mm |
||
Material: Composite |
||
Leak detector |
Detecting Accuracy: <3mm |
1 |
Input Power: 220VAC±10% |
||
Respond Time: <2 seconds |
||
Signal Output One relay (Normally open&closed) |
||
Operation Temperature:-40 to +60ºC |
||
Certification: ExiaIIBT4 Ga |
||
Level gauge with display instrument |
Input voltage: 220VAC±15% |
2 |
System operating voltage: DC 24V |
||
Ambient temperature range of level |
||
gauge: -25ºC ~ 55ºC |
||
Relative humidity: 45% ~ 75% |
||
Atmospheric pressure: 86kPa to 106kPa |
||
Measuring range: 200mm~7000mm |
||
communication distance: 1200m |
||
Measurement accuracy:±0.5mm |
||
Tank valves |
Inlet valve, |
2set |
Outlet valve, |
||
oil filter valve, |
||
oil return valve, |
||
vent valve, |
||
level gauge valve |
